LED-8961 Hi-Lo

Be the first to review this product

LED-8961 - 96 watt Hi-Lo for JD tractors and more. OEM part # (JD) RE229115, RE229111.

SKU: LL0622

Availability:

Out of stock

Inbound QTY: 80 ETA around 9/1/2024.

$74.00

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-8961 - 96 watt Hi-Lo for JD tractors and more.

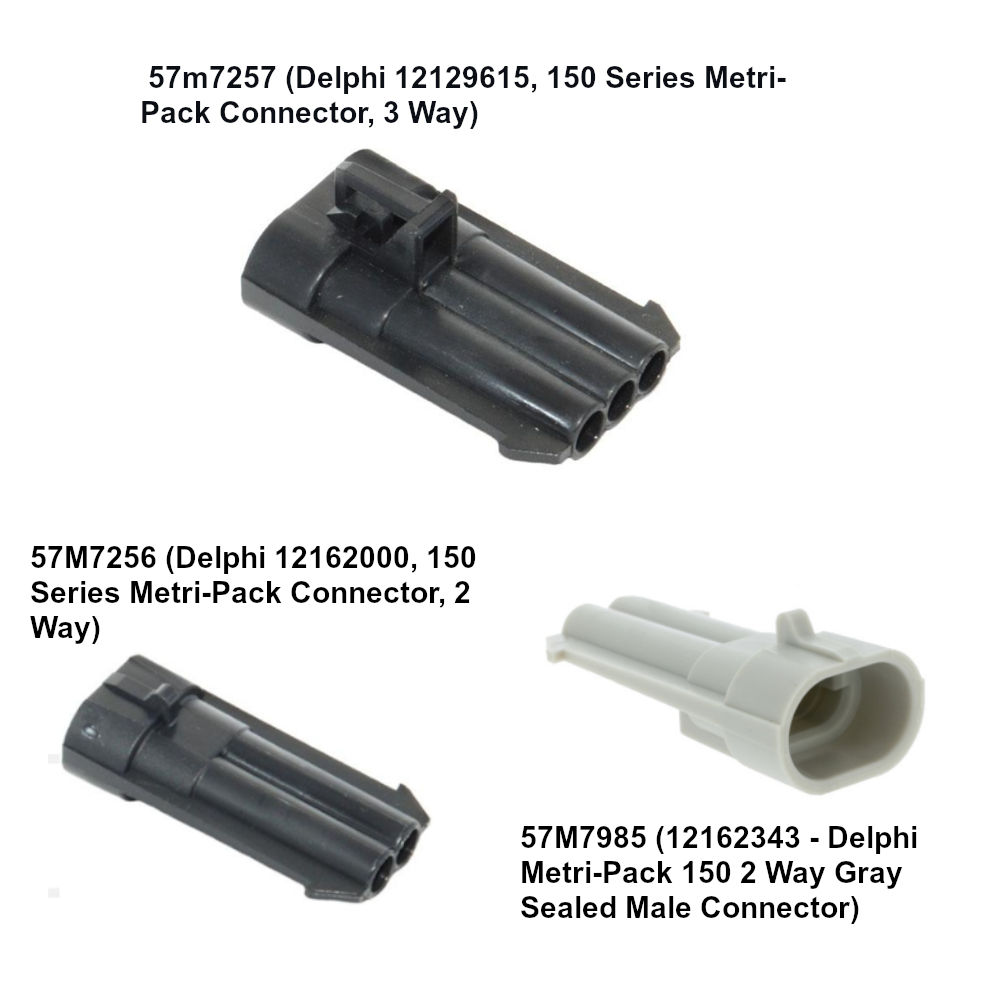

Ships with pins installed on the wires, and 3 different connectors for different applications:

Delphi 12129615, 150 Series Metri-Pack Connector, 3 Way
Delphi 12162000, 150 Series Metri-Pack Connector, 2 Way
Delphi Metri-Pack 150 2 Way Gray Sealed Male Connector

Specifications :

. LED Power: 96 Watt Bridgelux (30 watt high beam, 30 watt low beam)
. Operating Volt: 10-30 Volt DC
. Beam pattern: High/Low beam
. Light Output: High beam 2200lm + Low beam 2200lm
. Color Temperature: 5700K
. Operation Temperature: -40℃~80℃
. Waterproof Rate: IP68
. Material: diecast aluminum housing, stainless steel bracket
. Lens: PC
. Life Time: about 50,000 hours
. EMC: ECE R10, CISPR 25 Class 4

Wiring:

Daytime Running (Blue)

High Beam (Red)

Low Beam (Brown)

Gound Line (Black)

Hi-Lo, LED8961, 4291301M92, 4291301M91, 4384408M1, RE229115 LHT, RE229111 RHT

LED-8961 - 96 watt Hi-Lo for JD tractors and more.

Ships with pins installed on the wires, and 3 different connectors for different applications:

Delphi 12129615, 150 Series Metri-Pack Connector, 3 Way
Delphi 12162000, 150 Series Metri-Pack Connector, 2 Way
Delphi Metri-Pack 150 2 Way Gray Sealed Male Connector

Specifications :

Wiring:

Daytime Running (Blue)

High Beam (Red)

Low Beam (Brown)

Gound Line (Black)

Hi-Lo, LED8961, 4291301M92, 4291301M91, 4384408M1, RE229115 LHT, RE229111 RHT

Product tags

Sealed Beam (7)
,
hi-lo (37)

Use On Below Models (Click to expand)

John Deere

Tractor: 2854 6090 7200 7200R 7210 7210R 7215R 7230R 7250R 7260R 7270R 7280R 7290R 7310R 7400 7410 7510 7600 7610 7630 7700 7710 7720 7730 7800 7810 7820 7830 7920 7930 8100 8120 8120T 8130 8200 8220 8220T 8225R 8230 8230T 8235R 8245R 8260R 8270R 8285R 8295R 8295RT 8300 8310R 8310RT 8320 8320R 8320RT 8320T 8330 8330T 8335R 8345R 8345RT 8360R 8360RT 8370R 8370RT 8400 8400R 8420 8420T 8430 8430T 8520 8520T 8530 8RT310 8RT340 8RT370 8RT410 8RX310 8RX340 8RX370 8RX410 9370R 9420R 9420RX 9470R 9470RT 9470RX 9520R 9520RT 9520RX 9570R 9570RT 9570RX 9620R 9620RX 9R540 9R590 9R640 9RT470 9RT520 9RT570 9RX490 9RX540 9RX590 9RX640
