LED 2x5 LED Light 60° LL0574

Be the first to review this product

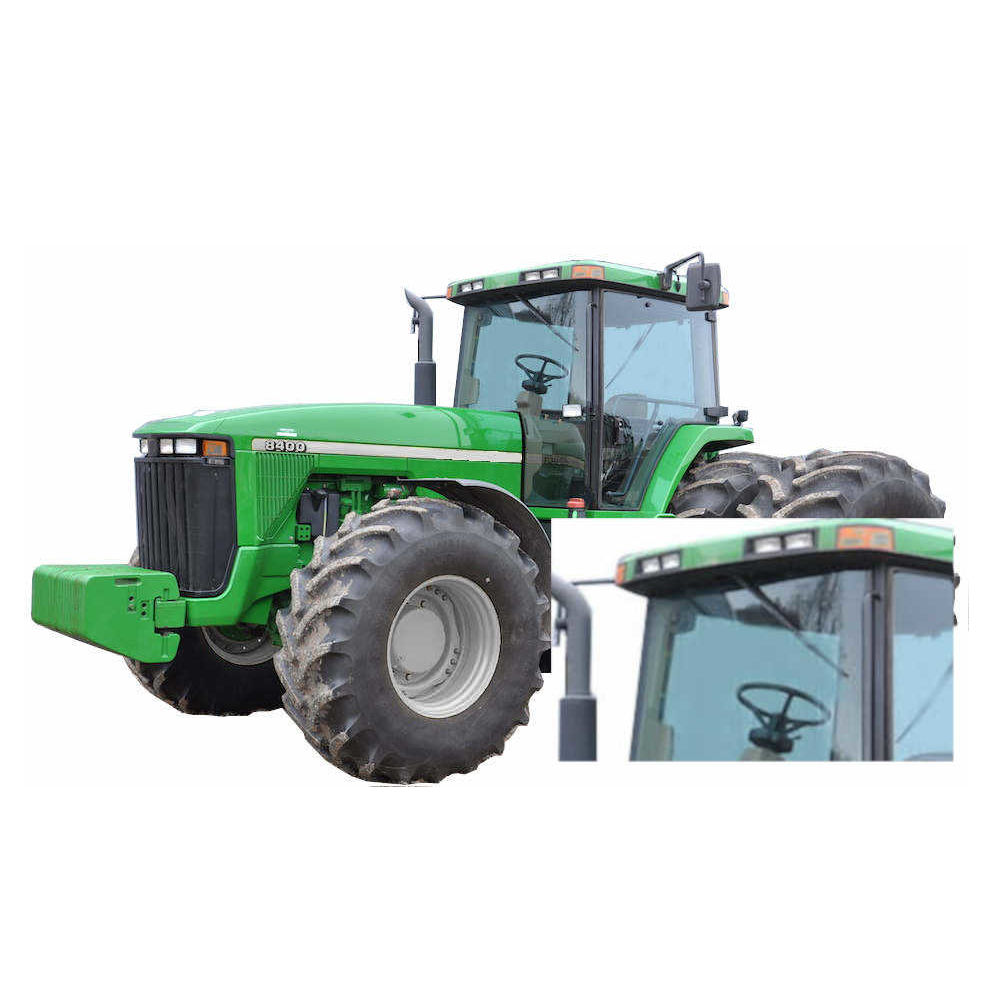

LED 2 x 5 LED light for the top front cab on the 55 & 60 series + 6000-7000-8000 series tractor. Flood beam.

SKU: LL0574

Availability:

29 in stock

$34.00

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-2 x 5 LED Light.

LED 2 x 5 LED light for the top front cab on the 55 & 60 series + 6000-7000-8000 series tractor. Flood beam.

Specifications :

. LED Power: 20 Watt CREE LED 4 x 5W/PC

. Operating Volt: 10-30Volt DC

. Lumen: 2200 Raw, 1900 Effective

. Power use: 1.7 amp @ 12V – 20.4 watt

. Operation temperature -40°C~60°C

. Color temperature: 5000K

. Beam: Flood

. Material: diecast aluminum housing

. Lens : PC . Housing color: Black

. Life time: >30000h

. Certificate : IP67, CE, ROHS

LED2x5, LED-2x5, 2x5, JD2x5, JD 2x5, JD2x5

LED-2 x 5 LED Light.

LED 2 x 5 LED light for the top front cab on the 55 & 60 series + 6000-7000-8000 series tractor. Flood beam.

Specifications :

. LED Power: 20 Watt CREE LED 4 x 5W/PC

. Operating Volt: 10-30Volt DC

. Lumen: 2200 Raw, 1900 Effective

. Power use: 1.7 amp @ 12V – 20.4 watt

. Operation temperature -40°C~60°C

. Color temperature: 5000K

. Beam: Flood

. Material: diecast aluminum housing

. Lens : PC . Housing color: Black

. Life time: >30000h

. Certificate : IP67, CE, ROHS

LED2x5, LED-2x5, 2x5, JD2x5, JD 2x5, JD2x5

Product tags

JD (106)

Use On Below Models (Click to expand)

John Deere

Crawler/Dozer: 450H S/N <881710, Hood 550H S/N <881710, Hood 650H S/N <881710, Hood

Sprayer: 4700 Cab Front 4710 Cab Front

Tractor: 4040 For Machines Equipped w/ Side Lamp Option, Will Not Replace Hood Lamp 4050 For Machines Equipped w/ Side Lamp Option, Will Not Replace Hood Lamp 4055 Hood 4240 For Machines Equipped w/ Side Lamp Option, Will Not Replace Hood Lamp 4250 For Machines Equipped w/ Side Lamp Option, Will Not Replace Hood Lamp 4255 Hood 4440 For Machines Equipped w/ Side Lamp Option, Will Not Replace Hood Lamp 4450 For Machines Equipped w/ Side Lamp Option, Will Not Replace Hood Lamp 4455 Hood 4555 Hood 4560 Hood 4640 For Machines Equipped w/ Side Lamp Option, Will Not Replace Hood Lamp 4650 For Machines Equipped w/ Side Lamp Option, Will Not Replace Hood Lamp 4755 Hood 4760 Hood 4840 For Machines Equipped w/ Side Lamp Option, Will Not Replace Hood Lamp 4850 For Machines Equipped w/ Side Lamp Option, Will Not Replace Hood Lamp 4955 Hood 4960 Hood 6110 Cab Front 6200 Cab Front, Comfort Guard Cab 6210 Cab Front 6300 Cab Front, Comfort Guard Cab 6310 Cab Front 6400 Cab Front, Comfort Guard Cab 6410 Cab Front 6500 Cab Front, Comfort Guard Cab 7200 Cab Front 7210 Cab Front 7400 Cab Front 7410 Cab Front 7510 Cab Front 7600 S/N <089999, Cab Front 7610 Cab Front 7700 Cab Front 7710 Cab Front 7800 Cab Front 7810 S/N <089999, Cab Front 8100 Cab Front 8100T Cab Front 8110 Cab Front 8110T Cab Front 8200 Cab Front 8200T Cab Front 8210 Cab Front 8210T Cab Front 8300 Cab Front 8300T Cab Front 8310 Cab Front 8310T Cab Front 8400 Cab Front 8400T Cab Front 8410 Cab Front 8410T Cab Front
