11" LuK Dual Stage Clutch Kit, w/ Bearings - Reman

Name: 11" LuK Dual Stage Clutch Kit, w/ Bearings - Reman
SKU: R197482RU KIT
Price: 875.11 USD
Availability: InStock

Be the first to review this product

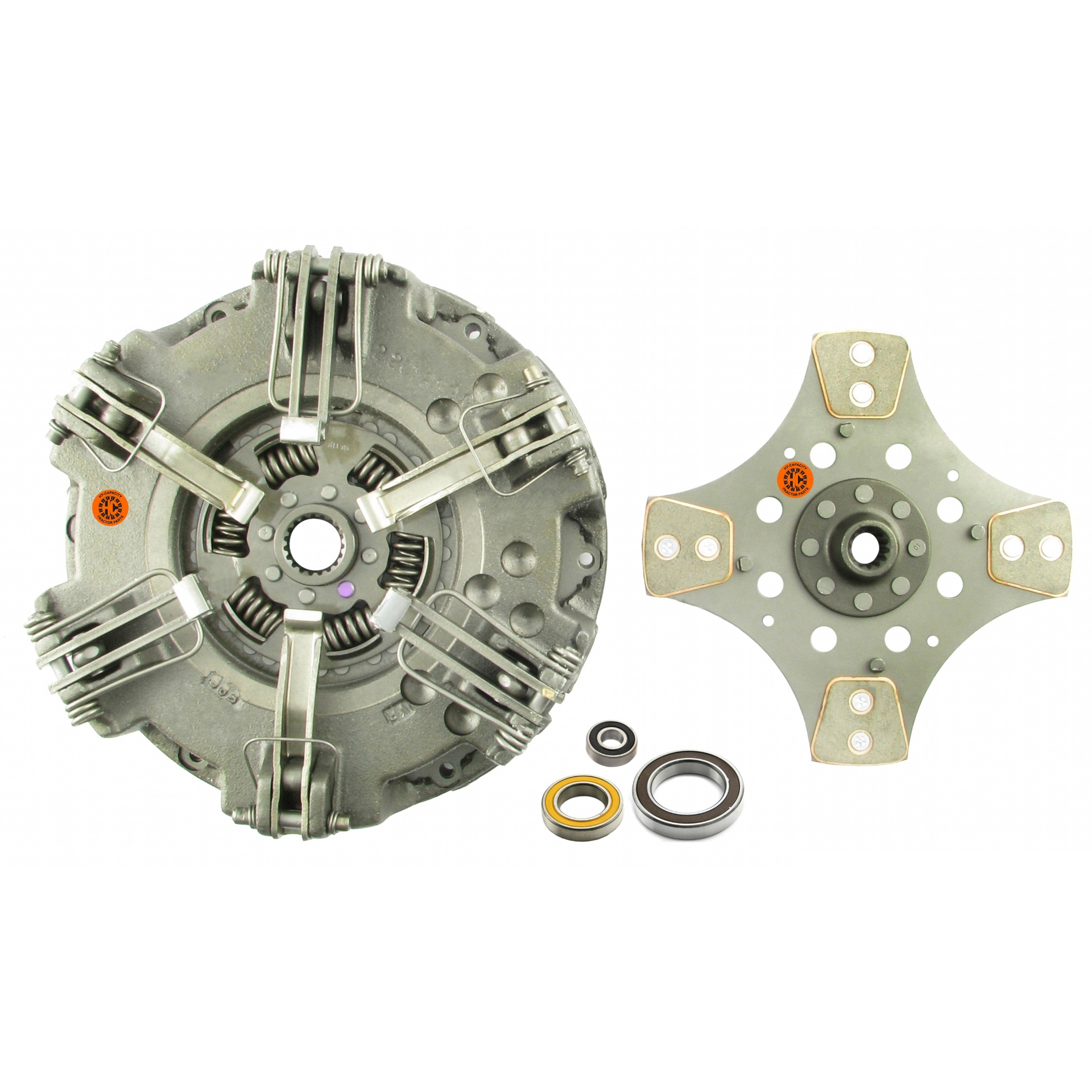

Flywheel cast plate thickness is .635" & has casting #220224900. Housing on top shows backplate #220131100. Includes: PPA, Captive Transmission Disc, Flywheel Side PTO Disc, 830701 (Transmission Release Bearing), 830664 (PTO Release Bearing) & 836203 (Pilot Bearing)

SKU: R197482RU KIT

$875.11

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Captive Disc Spec	6 Pad; 1-3/8" 19 Spline Hub; Spring Center
Flywheel Disc Spec	4 Pad; 1" 13 Spline Hub; Solid Center
Flywheel Step	Flat
New/Reman	New
PPA Levers	6
Size	11"
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Captive Disc Spec	6 Pad; 1-3/8" 19 Spline Hub; Spring Center
Flywheel Disc Spec	4 Pad; 1" 13 Spline Hub; Solid Center
Flywheel Step	Flat
New/Reman	New
PPA Levers	6
Size	11"
Sold As	Each
Warranty	1 Year

Product tags

RE197482 (2)

Use On Below Models (Click to expand)

John Deere

Tractor: 5415 S/N 002288-> w/ Collarshift or Synchshuttle Transmission 5415N w/ Collarshift or Synchshuttle Transmission 5425N w/ Cast Plate Thickness .635" & Cast Plate # 220224900 5525 w/ Synchshuttle Transmission 5615 S/N 002319-> w/ Collarshift or Synchshuttle Transmission 5715 S/N 003601-> w/ Collarshift or Synchshuttle Transmission 5725N w/ Cast Plate Thickness .635" & Cast Plate # 220224900

TRACTOR: 5425 w/ Flat Flywheel & Bottom cast thickness is approximately .635"
