40 Series

Info about the kits :

Larsen LED light kits that will fit the 40 series JD. The difference between the kits is the qty of flood and trapezoid lights. The High Output kit's - option 3 & 4 - use the 1700 lumen effective HO PAR-36 LED lights. All kits include 8 lights, if you only need 4 or 6 lights, use the 30 series kits. Last on this page the 8x40 series kits.

The LED Par-36 use female spade terminals to connect to the wires (included). 12-24 volt. 3-year warranty. The standard Par-36 halogen is around 400-800 lumen, the standard LED is 1400 lumen each light, and the high output is 1700 lumen effective / 2200 raw. We work with REAL lumen & amp draw, not a calculated number.

Lights used found here : Par-36

Video of install from a customer: Install     and     Lights in use video

Fits:  John Deere, 1640, 2040, 2140, 2150, 2155, 2240, 2255, 2350, 2355N, 2550, 2855N, 2940, 2950, 2955, 3040, 3055, 3140, 3150, 3155, 3255, 4030, 4040, 4230, 4240, 4440, 4640, 4840, 4050, 4250, 4450, 4650, 4850

View as Grid List
Sort by

Larsen LED Option 1, JD 4x40 (2 x Hi-Lo, 2 x Trapezoid, 4 x Flood)

JD4x40-1
Option 1 for JD 4x40 and 4x50 series tractors. Includes 2 Par-36 Hi-Lo lights, 2 Trapezoid lights, 4 Par-36 Flood lights.
$216.00

Larsen LED Option 2, JD 4x40 (4 trapezoid - 2 flood - 2 hi-lo)

JD4x40-2 Kit
Option 2 for JD 4x40 and 4x50 series tractors. Includes 2 Hi-Lo beam, 4 trapezoid beam, 2 flood beam lights.
$216.00

Larsen LED High Output Option 3 for 4x40 (2 x Hi-Lo, 2 x Trapezoid, 4 x Flood)

JD4x40-3 HO Kit
Option 3 for JD 4x40 and 4x50 series tractors. Includes 2 x HO Par-36 Hi-Lo lights, 2 x HO Trapezoid lights, 4 x HO Par-36 Flood lights. All Par-36 lights are 1700 lumen effective / 2200 raw output.
$272.00

Larsen LED High Output Option 4 for JD 4x40 (2 hi-lo, 2 flood & 4 trapezoid)

JD4x40-3 HO Kit 4 trap
Option 4 for JD 4x40 and 4x50 series tractors. Includes 2 x HO Par-36 Hi-Lo lights, 4 x HO Trapezoid lights, 2 x HO Par-36 Flood lights. All Par-36 lights are 1700 lumen effective / 2200 raw output.
$272.00

Larsen LED kit for JD-8x40 LED.

JD-8x40 LED
8 Par-36 LED bulbs included in this packet, changes all lights to LED using the existing housings. From 600 lumen/bulb to 1450 lumen/bulb.
$272.00

LED Hood Conversion Kit, TL2755

TL2755
Kit comes with Led lights, wire harness(plug and play), housing, billet bezel, and all mounting hardware. Everything needed to convert your John Deere Tractor to LED Lighting. Note: This product will only work with tractors with existing front headlight/light bar in the hood. Replaces John Deere Part Number: AL64781
$380.00

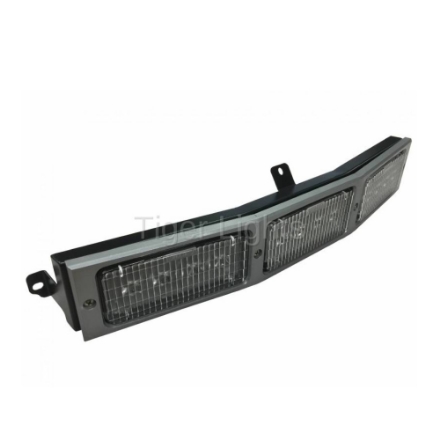

TL3000 nose cone kit

TL3000
Kit comes with Led lights, wire harness(plug and play), housing, billet bezel and all mounting hardware.Everything needed to convert your John Deere Tractor to LED Lighting. Tiger lights brand. For John Deere, 1640, 2040, 2140, 2150, 2155, 2240, 2255, 2350, 2355N, 2550, 2855N, 2940, 2950, 2955, 3040, 3055, 3140, 3150, 3155, 3255, 4030, 4040, 4230,
$380.00

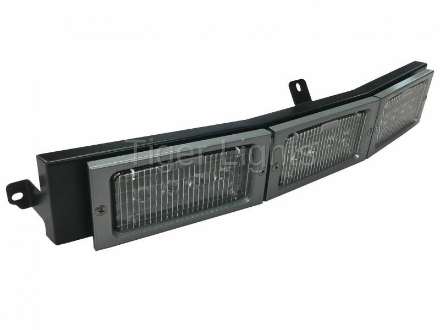

TL4200 nose cone kit

TL4200
The kit comes with Led lights, a wire harness(plug and play), housing, billet bezel, and all mounting hardware. Everything needed to convert your John Deere Tractor to LED Lighting. Made by Tiger Lights. 4240, 4430, 4440, 4630
$380.00

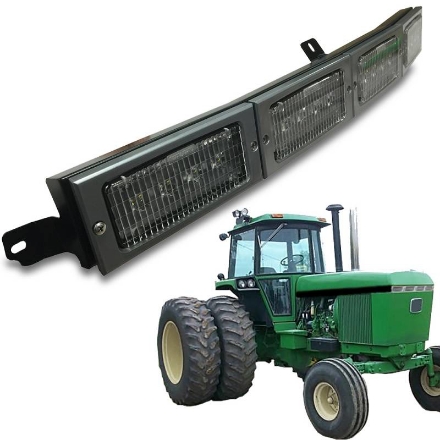

TL4600 nose cone kit

TL4600
The kit comes with Led lights, a wire harness(plug and play), housing, billet bezel, and all mounting hardware. Everything needed to convert your John Deere Tractor to LED Lighting. Made by Tiger Lights. Fit JD 4640, 8430, 8440, 8450, 8630, 8640, 8650.
$430.00

High Output PAR-36 Flood

LL0006
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 60° Flood Beam
$34.00

High Output PAR-36 Hi-Lo

LL0008
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700 Hi-Lo Beam, 800 low beam
$34.00

High Output PAR-36 Trapezoid

LL0007
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 40° trapezoid beam
$34.00

Par-36 Bolt on Housing

LL0030
A steel housing with a single bolt for mounting in the fenders on some tractors. Rubber grommet included.
$21.00

Par-36 Rubber Grommet

LL0032
Rubber grommet for the PAR-36 size lights. 3 tabs lock onto the OEM Hobbs housing. Not for the front fender lights. Need a front fender glare guard grommet ? Find it here : https://www.steinertractor.com/ABC3044-Guide-Glare-Guard-Rubber-Light-Bezel
$5.50

PAR-36 rubber housing

LL0034
PAR-36 size rubber housing. Simple rubber housing with a steel mounting bracket.
$7.00

PAR-36, 24 watt Hi-Lo

LL0005
PAR-36 size (4.5" Round) LED light. This is a Hi-Lo version of the light. Now as 24 watts. Not DOT approved.
$27.00

PAR-36, 4.5 LED light, Flood beam

LL0002
PAR-36 size replacement LED light for the old style sealed beam halogen light. 5 watt CREE LED chips. Actual use is around 18 watt, effective lumen around 1450, raw lumen around 2200. 60° Flood Beam. 1450 lumen, 30 watt rated / 18 watt use. 60° flood.
$27.00

PAR-36, 4.5 LED light, Fluted Flood lens

LL0025
PAR-36 size replacement LED light, this model has a lens that looks like the halogen lights, makes it appear as OEM. 60° Flood Beam. 1400 lumen, 30 watt rated / 18 watt use.
$27.00

PAR-36, 4.5" LED 30 watt 40° Trapezoid beam.

LL0003
PAR-36 size replacement LED light for the old style sealed beam halogen light. Trapezoid Beam. 1450 lumen, 30 watt rated / 18 watt use. Trapezoid beam.
$27.00

PAR-36, 4.5" LED light. 20° Spot

LL0004
PAR-36 size replacement LED light for the old style sealed beam halogen light. 20° Spot Beam. 1450 lumen, 30watt rated / 18 watt use.
$27.00

Electronic LED flasher relay

LL0466
If you replace your stock flashers with LED flashers, you might need a new flasher relay or a set of resistors in order for the flashers to flash normally.
$13.50

LED-0091 with built in resistor, Amber Cab Light, AR60250 / Flasher for JD 30/40/50/55/60 series, and some CIH / Steiger

LL0541
LED-0091, amber with a built-in resistor. No need for special LED flasher relays! This model fits Sound Guard Cabs, and 4wd Steiger. Availability : Winter 2020/2021.
$35.00

LED-0091, Amber Cab Light, AR60250 / Flasher for JD 30/40/50/55/60 series

LL0326
This model fits Sound Guard Cabs, and 4wd Steiger. Includes Stainless Steel Hardware.
$29.00

LED-0092, LED Red Oval Tail Light.

LL0325
LED Tail Light for John Deere Tractors. Plug & Play. OEM Replacement: John Deere: AR78825, RE39223
$29.00

Resistor, set of 2

LL0464
If you replace your stock flashers with LED flashers, you might need a set of resistors or a LED flasher relay in order for the flashers to flash normally. If possible use the LED flasher relay instead of the resistors. Find it further down on this page.
$10.00
