Info about the kits :
Larsen LED light kits that will fit the 20 / 30 series JD. If your 30 series has 8 lights, please use the 40 series kit. The difference between the kits is 4 or 6 lights and the qty of flood and trapezoid lights. The High Output kit's - option 4,5,& 6 - use the 1700 lumen effective HO PAR-36 LED lights.
The LED Par-36 use female spade terminals to connect to the wires (included). 12-24 volt. 3-year warranty. The standard Par-36 halogen is around 400-800 lumen, the standard LED is 1400 lumen each light, and the high output is 1700 lumen effective / 2200 raw. We work with REAL lumen & amp draw, not a calculated number.
Video of install from a customer: Install and Lights in use video
Larsen LED kit for JD 4020. 12 volt systems only.
JD 4020
Larsen LED kit for JD 4020. Includes 2 x Par-36 Hi-Lo lights, 3 x Par-36 Flood lights, 1400 lumen each light.
$135.00
Larsen LED Option 1, JD 4x30
JD4x30-1 multiply items
Option 1 for JD 4x30 tractors. Includes 2 x Par-36 Hi-Lo lights, 2 x Par-36 Flood lights, 1400 lumen each light.
$108.00

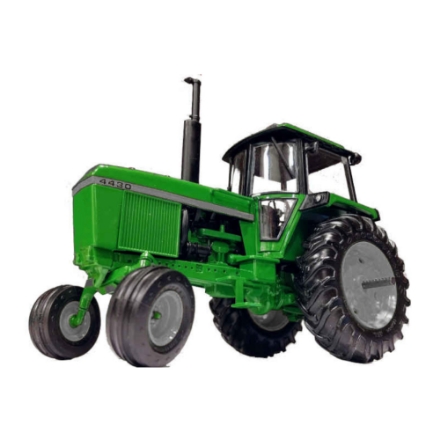

Larsen LED Option 2, JD 4x30
JD4x30-2 multiply items
Option 2 for JD 4x30 series tractors. Includes 2 x Hi-Lo, 4 x flood beam lights. 1400 lumen each light.
$150.00
Larsen LED Option 3, JD 4x30
JD4x30-3 multiply items
Option 2 for JD 4x30 series tractors. Includes 2 x Hi-Lo, 2 x Trap for front lights and 2 x Par-36 flood beam lights. 1400 lumen each light.
$150.00
Larsen LED Option 4 High Output Par-36, JD 4x30 Par-36
JD4x30-4 HO multiply items
Option 4 for JD 4x30 tractors. Includes 2 x Par-36 Hi-Lo lights, 2 x Par-36 Flood lights, 1700 lumen each light. All High Output.
$128.00
Larsen LED Option 5 High Output Par-36, JD 4x30
JD4x30-2 HO multiply items
Option 5 for JD 4x30 series tractors. Includes 2 x Hi-Lo, 4 x flood beam lights. 1700 lumen each light. Select the High Output option for the 1700 lumen lights.
$192.00
Larsen LED Option 6 High Output, JD 4x30
JD4x30-3 HO multiply items
Option 6 for JD 4x30 series tractors. Includes 2 x Hi-Lo, 2 x Trap for front lights and 2 x Par-36 flood beam lights. 1700 lumen each light.
$192.00
High Output PAR-36 Flood
LL0006
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 60° Flood Beam
$34.00
High Output PAR-36 Hi-Lo
LL0008
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700 Hi-Lo Beam, 800 low beam
$34.00
High Output PAR-36 Spot beam
LL0315
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 20° Spot Beam
$34.00
High Output PAR-36 Trapezoid
LL0007
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 40° trapezoid beam
$34.00
Par-36 Bolt on Housing
LL0030
A steel housing with a single bolt for mounting in the fenders on some tractors. Rubber grommet included.
$21.00
PAR-36 Flood
LL0002
PAR-36 size replacement LED light for the old style sealed beam halogen light. 5 watt CREE LED chips. Actual use is around 18 watt, effective lumen around 1450, raw lumen around 2200. 60° Flood Beam. 1450 lumen, 30 watt rated / 18 watt use. 60° flood.
$27.00
Par-36 Rubber Grommet
LL0032
Rubber grommet for the PAR-36 size lights. 3 tabs lock onto the OEM housing. Not for the front fender lights. Need a front fender glare guard grommet ? Find it here : https://www.steinertractor.com/ABC3044-Guide-Glare-Guard-Rubber-Light-Bezel
$5.50
PAR-36 rubber housing
LL0034
PAR-36 size rubber housing. Simple rubber housing with a steel mounting bracket.
$7.00
PAR-36, 24 watt Hi-Lo
LL0005
PAR-36 size (4.5" Round) LED light. This is a Hi-Lo version of the light. Now as 24 watts. Not DOT approved.
$27.00
PAR-36, 4.5 LED light, Fluted Flood lens
LL0025
PAR-36 size replacement LED light, this model has a lens that looks like the halogen lights, makes it appear as OEM. 60° Flood Beam. 1400 lumen, 30 watt rated / 18 watt use.
$27.00
PAR-36, 4.5" LED 30 watt 40° Trapezoid beam.
LL0003
PAR-36 size replacement LED light for the old style sealed beam halogen light.
Trapezoid Beam. 1450 lumen, 30 watt rated / 18 watt use. Trapezoid beam.
$27.00
PAR-36, 4.5" LED light. 20° Spot
LL0004
PAR-36 size replacement LED light for the old style sealed beam halogen light. 20° Spot Beam. 1450 lumen, 30watt rated / 18 watt use.
$27.00
LED-0091 with built in resistor, Amber Cab Light, AR60250 / Flasher for JD 30/40/50/55/60 series, and some CIH / Steiger
LL0541
LED-0091, amber with a built-in resistor. No need for special LED flasher relays! This model fits Sound Guard Cabs, and 4wd Steiger. Availability : Winter 2020/2021.
$35.00
LED-0091, Amber Cab Light, AR60250 / Flasher for JD 30/40/50/55/60 series
LL0326
This model fits Sound Guard Cabs, and 4wd Steiger. Includes Stainless Steel Hardware.
$29.00
LED-0092, LED Red Oval Tail Light.
LL0325
LED Tail Light for John Deere Tractors. Plug & Play.
OEM Replacement:
John Deere: AR78825, RE39223
$29.00
Electronic LED flasher relay
LL0466
If you replace your stock flashers with LED flashers, you might need a new flasher relay or a set of resistors in order for the flashers to flash normally.
$13.50
Resistor, set of 2
LL0464
If you replace your stock flashers with LED flashers, you might need a set of resistors or a LED flasher relay in order for the flashers to flash normally. If possible use the LED flasher relay instead of the resistors. Find it further down on this page.
$10.00
