55 Series

Info about the kits :

Larsen LED light kits that will fit the 55 series JD. Option 1 & 2 use the standard LED Par-36, the High Output kit's - option 3 & 4 - use the 1700 lumen effective HO PAR-36 LED lights. All kits include 8 Par-36 round lights and 3 or 4 of the front grill lights.

Note that the 55 series JD does not have a 3 wire Hi-Lo beam - instead, they use a 2 wire single beam bulb, and create the Hi-Lo effect by lowering the voltage to the lights. We use the Hi-Lo beam 3 wire Par-36 in the kits - please just connect the 2 wires to the (H) high and (G) ground spade on the back of the light.

The LED Par-36 use female spade terminals to connect to the wires (included). 12-24 volt. 3-year warranty. The standard Par-36 halogen is around 400-800 lumen, the standard LED is 1400 lumen each light, and the high output is 1700 lumen effective / 2200 raw. We work with REAL lumen & amp draw, not a calculated number.

Option 1 & 2 use standard Par-36 LED, option 3 & 4 use High Output.

Video of install from a customer: Install    and    Lights in use video

Lights used in the kits :   Par-36     LED 2x5

View as Grid List
Sort by

Larsen LED Option 1 JD 4x55

JD4x55-1
Option 1 for JD 4055, 4255 & 4455 tractors. Includes 2 Par-36 Flood, 2 Trapezoid lights, 4 Par-36 Flood lights and 3 JD 2x5 - 30 watt
$318.00

Larsen LED Option 2 JD 4x55

JD4x55-2
Option 2 for JD 4555, 4755 & 4955 tractors. Includes 2 Par-36 Flood lights, 2 Trapezoid lights, 4 Par-36 Flood lights and 4 JD 2x5 - 30 watt.
$352.00

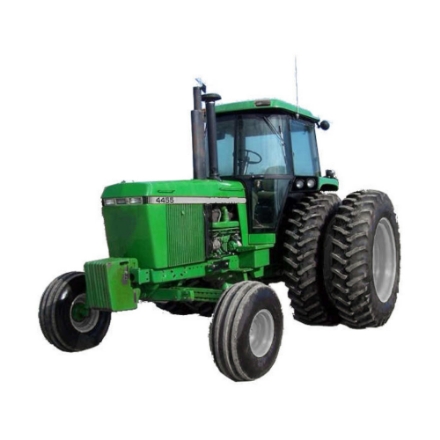

Larsen LED Option 3 JD 4x55 High Output

JD4x55-3 HO
Option 3 for JD 4055, 4255 & 4455 tractors. Includes 2 x HO Par-36 Flood lights, 2 x HO Par-36 Trapezoid lights, 4 x HO Par-36 Flood lights and 3 JD 2x5 - 30 watt.
$374.00

Larsen LED Option 4 JD 4x55 High Output

JD4x55-4 HO
Option 4 for JD 4555, 4755 & 4955 tractors. Includes 2 x HO Par-36 Flood lights, 2 x HO Par-36 Trapezoid lights, 4 x HO Par-36 Flood lights and 4 JD 2x5 - 30 watt.
$408.00

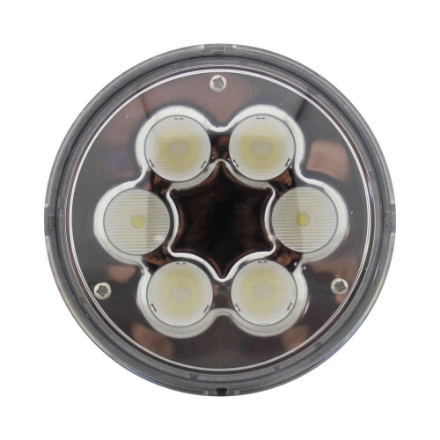

High Output PAR-36 Flood

LL0006
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 60° Flood Beam
$34.00

High Output PAR-36 Trapezoid

LL0007
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 40° trapezoid beam
$34.00

LED 2 x 5 LED Light, 30 watt (JD 2x5 )

LL0001
LED 2x5 LED light for the top front cab on the 7000-8000 series tractor, and front hood light on older JD’s, 55 and 60 series. 40° beam pattern.
$34.00

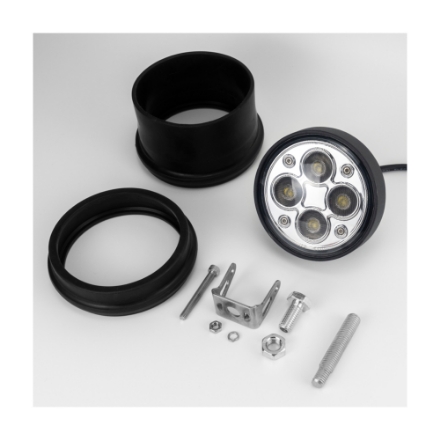

Par-36 Bolt on Housing

LL0030
A steel housing with a single bolt for mounting in the fenders on some tractors. Rubber grommet included.
$21.00

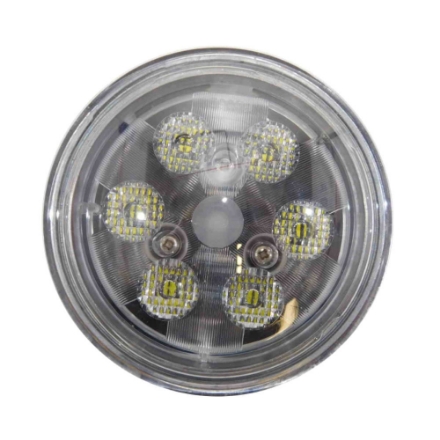

PAR-36 Flood

LL0002
PAR-36 size replacement LED light for the old style sealed beam halogen light. 5 watt CREE LED chips. Actual use is around 18 watt, effective lumen around 1450, raw lumen around 2200. 60° Flood Beam. 1450 lumen, 30 watt rated / 18 watt use. 60° flood.
$27.00

Par-36 Rubber Grommet

LL0032
Rubber grommet for the PAR-36 size lights. 3 tabs lock onto the OEM housing. Not for the front fender lights. Need a front fender glare guard grommet ? Find it here : https://www.steinertractor.com/ABC3044-Guide-Glare-Guard-Rubber-Light-Bezel
$5.50

PAR-36 rubber housing

LL0034
PAR-36 size rubber housing. Simple rubber housing with a steel mounting bracket.
$7.00

PAR-36, 24 watt Hi-Lo

LL0005
PAR-36 size (4.5" Round) LED light. This is a Hi-Lo version of the light. Now as 24 watts. Not DOT approved.
$27.00

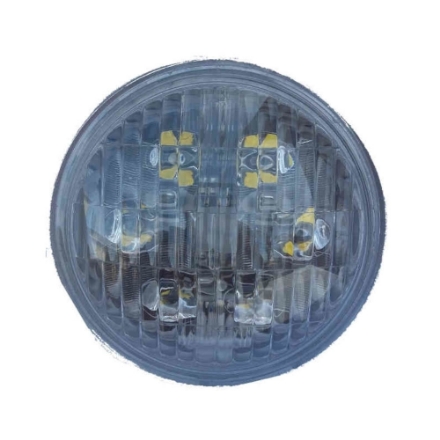

PAR-36, 4.5 LED light, Fluted Flood lens

LL0025
PAR-36 size replacement LED light, this model has a lens that looks like the halogen lights, makes it appear as OEM. 60° Flood Beam. 1400 lumen, 30 watt rated / 18 watt use.
$27.00

PAR-36, 4.5" LED 30 watt 40° Trapezoid beam.

LL0003
PAR-36 size replacement LED light for the old style sealed beam halogen light. Trapezoid Beam. 1450 lumen, 30 watt rated / 18 watt use. Trapezoid beam.
$27.00

PAR-36, 4.5" LED light. 20° Spot

LL0004
PAR-36 size replacement LED light for the old style sealed beam halogen light. 20° Spot Beam. 1450 lumen, 30watt rated / 18 watt use.
$27.00

Electronic LED flasher relay

LL0466
If you replace your stock flashers with LED flashers, you might need a new flasher relay or a set of resistors in order for the flashers to flash normally.
$13.50

LED-0091 with built in resistor, Amber Cab Light, AR60250 / Flasher for JD 30/40/50/55/60 series, and some CIH / Steiger

LL0541
LED-0091, amber with a built-in resistor. No need for special LED flasher relays! This model fits Sound Guard Cabs, and 4wd Steiger. Availability : Winter 2020/2021.
$35.00

LED-0091, Amber Cab Light, AR60250 / Flasher for JD 30/40/50/55/60 series

LL0326
This model fits Sound Guard Cabs, and 4wd Steiger. Includes Stainless Steel Hardware.
$29.00

LED-0092, LED Red Oval Tail Light.

LL0325
LED Tail Light for John Deere Tractors. Plug & Play. OEM Replacement: John Deere: AR78825, RE39223
$29.00

Resistor, set of 2

LL0464
If you replace your stock flashers with LED flashers, you might need a set of resistors or a LED flasher relay in order for the flashers to flash normally. If possible use the LED flasher relay instead of the resistors. Find it further down on this page.
$10.00
