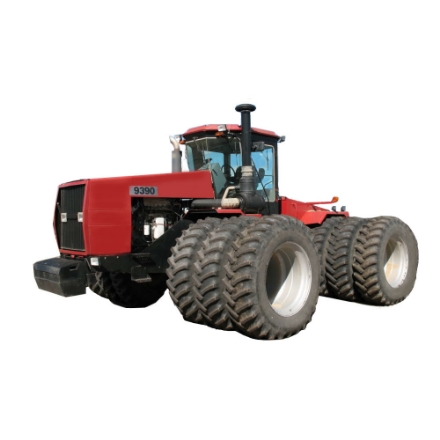

Larsen LED kit for CaseIH 9000 Series

Larsen LED kit for CaseIH 9000 Series



This packet will improve your lighting by changing the lights to LED.  The "Economy" option below is just fine for the smaller HP tractors pulling no more than 40' implement. If you have larger implement, consider one of the other options for a wider and deeper light pattern.

If your tractors headlights are mounted in a rubber grommet, instead of the standard 4 bolt style, you can find the light here: AAL-745 Hi-Lo or LED-4x6 Hi-Lo  - the connector style on those 2 lights are the standard H4 plug - we include the female H4 plug for a clean install.

All kits include weather pack connectors. No radio interference.

Lights used in the kits: LED-845-2    LED-660    LED-60   LED-90-flood   DT to WP 15" adapter cable

Case/IH,9110,9130,9150,9170,9180,9210,9230,9240,9260,9270,9280,9310,9330,9350,9370,9380,9390,Steiger Bearcat,1000,Steiger Cougar,1000,Steiger,CR-1225,CR-1280,KR-1225,KR-1280,Steiger Panther,1000,Steiger Puma,1000,Steiger Wildcat,1000.





View as Grid List
Sort by

Larsen LED kit for CaseIH 9xx0 series, Economy kit

CIH-9xx0E
Replaces all standard lights with the LED-845 series lights, a total of 8 lights in the packet. This packet is great if running smaller implement under 40'. Add headlights and extra front grill sidelights if needed.
$360.00

Larsen LED kit for CaseIH 9xx0 series, Standard

CIH-9xx0S
Replaces 8 lights with the LED-660 lights, add extra lights if needed.
$620.00

Larsen LED kit for CaseIH 9xx0 series, Silver

CIH-9xx0Silver
Replaces all standard lights with LED lights, a total of 8 lights in the packet.
$644.00

Larsen LED kit for CaseIH 9xx0 series, Gold

CIH-9xx0Gold
Replaces all standard lights with LED lights, a total of 8 lights in the packet. Keep in mind that the LED-90 uses 6.3 amp, 1.5 amp more than a standard 55 watt halogen light.
$668.00

CaseIH 9000 series Headlight

LL0056
Headlight for the 9000 series CaseIH using 4 bolts to hold the light.
$69.00

LED-660 Series LED lights

LED-660 series
LED-660 is a 4x6 style LED work light. 6 CREE LED's at 10 watt each, 4100 lumen, 5000k and only 3.6 amp use. Select the light beam type, then select the bracket you need for your application.
$74.00

LED-845

LL0022
4 x 6 style, 45 watt LED 60° flood light. Flood beam is made in the lens for a wider pattern than the 845-2. Standard bracket.
$45.00

LED-845 Standard mount, with spade connectors

LL0417
4 x 6 style, 45 watt LED 60° flood light. Male spade connectors.
$47.00

LED-845-2

LL0023
4 x 6 style, 45 watt LED 60° flood light. Light beam is created in the reflectors, and a clear lens is used for higher lumen output. Standard bracket.
$45.00

LED 60, Flood beam

LL0080
60 watt flood light, 90 degree flood. LED at HID level.
$83.00

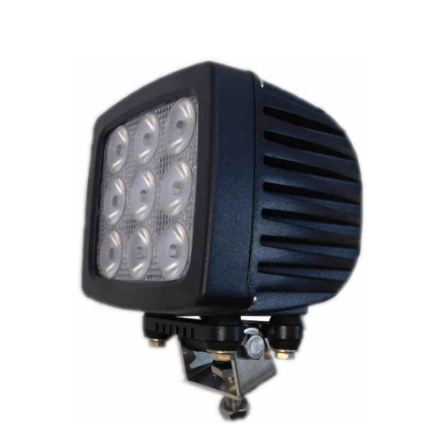

LED-90 Flood with WP connector

LL0085
LED-90 is a 90° flood light, great for large tractors.
$89.00

Hp-5 Flood 60°

LL0423
HP-5 - Oval 5000 lumen LED work light. 60° Flood beam
$114.00

Hp-5 Spot 20°

LL0425
HP-5 - Oval 5000 lumen LED work light. Spot beam
$114.00

Hp-5 Trapezoid 40°

LL0424
HP-5 - Oval 5000 lumen LED work light. 40° beam
$114.00

HP-6 20° Spot Beam

LL0422
HP-6 is a 6" LED light made for use on most tractors where a square light is needed. 20 degree light beam, over 6600 lumen effective !
$129.00

HP-6 40° Trapezoid

LL0421
HP-6 is a 6" LED light made for use on most tractors where a square light is needed. 40 degree light beam, over 6600 lumen effective !
$129.00

HP-6 60° flood

LL0420
HP-6 is a 6" LED light made for use on most tractors where a square light is needed. 60 degree light beam, over 6600 lumen effective !
$129.00
