66 / 86 / 806 Series

Larsen LED kits for 66, 86, 806 Series IH



LED light conversion for IH 666, 686, & 806.

LED Light kit for IH 1486 & 1586. Includes 6 Par-36 LED bulbs to replace the OEM halogen bulbs. Add 2 extra Par-36 flood or 2 complete LED-408 for the rear fenders if needed. Now using High Output PAR-36 LED lights.

The Par-36 lights are the 4.5“ round lights that install into the existing housings, all you have to do is remove the old light, and install female spade connectors on the wires,(Included) then re-install the light.

Please note that the Hi-Lo light is a 3 wire light if you only have 2 wires to the OEM light, (positive and negative) then the LED light will have to be wired on high beam, and the dimming effect will be limited.

This kit will improve your lighting by 200-300%, and lower the electrical amp draw by 1/2 !

The standard Par-36 halogen is around 600-800 lumen, the standard LED is 1400 lumen each light, the High Output model is 1700 lumen effective each.

The light used in this kit: PAR-36

View as Grid List
Sort by
Display per page

IH 666 / 686 with 3 flood lights

LED light conversion for IH 666 & 686. 3 Par-36 flood lights, 2 x Par-36 Hi-Lo LED lights are included in this kit. All the lights are the 1700 lumen High Output.
$170.00

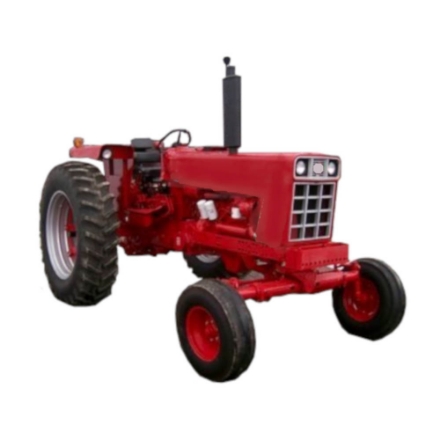

IH 666 / 686 with 4 flood lights

LED light conversion for IH 666 & 686. 4 Par-36 flood lights, 2 x Par-36 Hi-Lo LED lights are included in this kit. All lights are the High Output 1700 lumen model
$204.00

IH 1086/1486/1586 LED light kit

LED Light kit for IH 1486 & 1586. Includes 6 Par-36 LED bulbs to replace the OEM halogen bulbs. Add 2 extra Par-36 flood or 2 complete LED-408 for the rear fenders if needed. Now using High Output PAR-36 LED lights.
$204.00

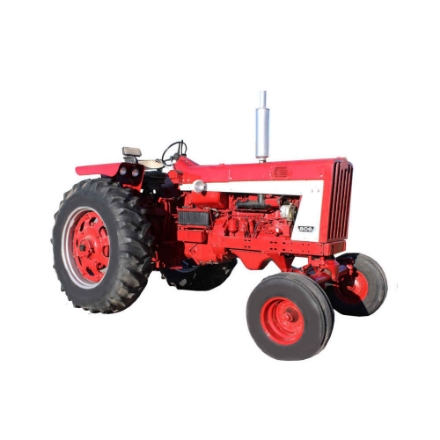

IH 806, 5 lights

LED light conversion for IH & Farmall 806. 2 x Par-36 flood lights, 2 x Par-36 trapezoid and 1 combo Red/White Par-36 lights are included in this kit.
$140.00

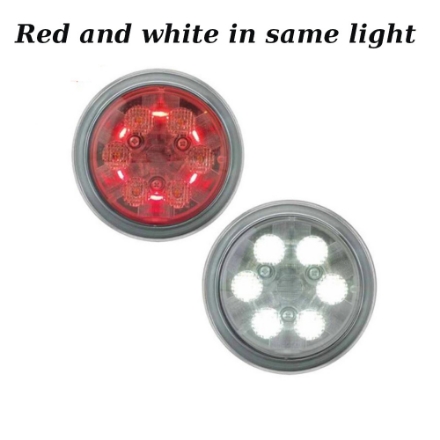

Par-36 Red/White combo light

The Par-36 light as a combo of the red taillight and white work light. 3 spades on the rear for power connections. 12 volt. Bulb number: 4409X, 4409 Replaces: AC: 250301, 235583 CASE: A40855 IH: 371461R92 & FITS LIGHT 377102R92 MM: 10p1729, 10p2646, 20-7000652 Oliver: 103593A, 166406A, 20-7000652 White: 10P2646
$32.00

High Output PAR-36 Flood

High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 60° Flood Beam
$34.00

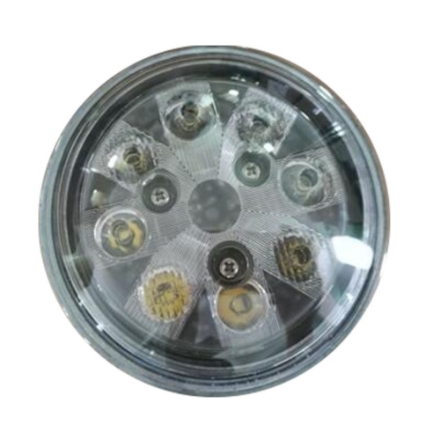

High Output PAR-36 Hi-Lo

High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700 Hi-Lo Beam, 800 low beam
$34.00

High Output PAR-36 Spot beam

High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 20° Spot Beam
$34.00

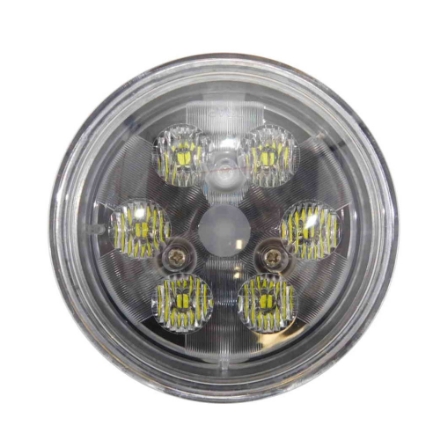

High Output PAR-36 Trapezoid

High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 40° trapezoid beam
$34.00

Par-36 Bolt on Housing

A steel housing with a single bolt for mounting in the fenders on some tractors. Rubber grommet included.
$21.00

PAR-36 Flood

PAR-36 size replacement LED light for the old style sealed beam halogen light. 5 watt CREE LED chips. Actual use is around 18 watt, effective lumen around 1450, raw lumen around 2200. 60° Flood Beam. 1450 lumen, 30 watt rated / 18 watt use. 60° flood.
$27.00

Par-36 Rubber Grommet

Rubber grommet for the PAR-36 size lights. 3 tabs lock onto the OEM housing. Not for the front fender lights. Need a front fender glare guard grommet ? Find it here : https://www.steinertractor.com/ABC3044-Guide-Glare-Guard-Rubber-Light-Bezel
$5.50
