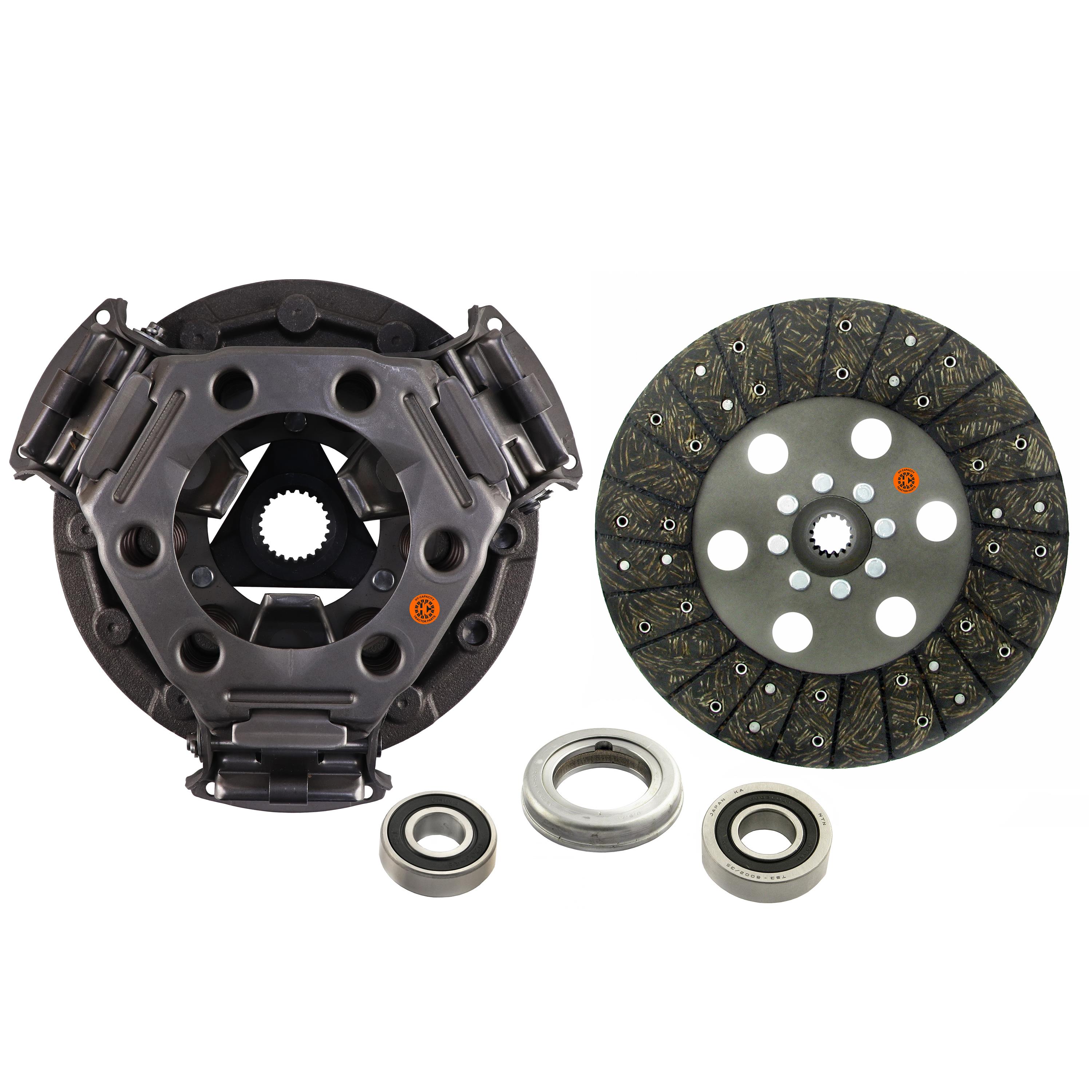

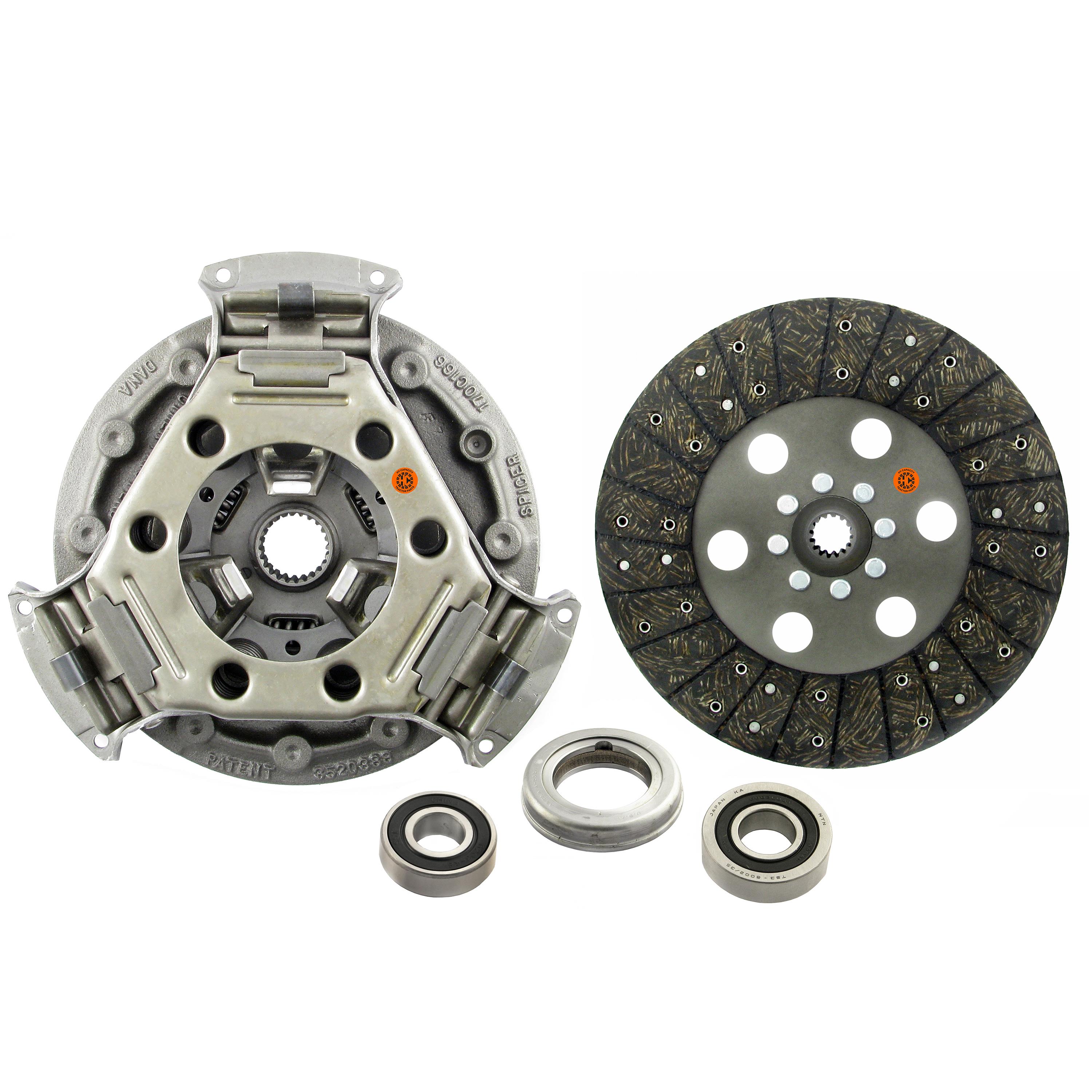

11" Single Stage Clutch Kit, w/ Woven Disc & Bearings - New

w/ solid center hub in PPA. Use appropriate pilot bearing per model.Includes: R100649N (PPA), R63965 (Disc), 8225518 (Release Bearing), 836203 (Pilot Bearing) & 836002 (Pilot Bearing)The R100649 KIT1 11" Single Stage Clutch Kit, w/ Woven Disc & Bearings - New fits equipment brands such as: John Deere

Manufacturer: Hy-Capacity

SKU: R100649 KIT1

Vendor: Hy-Capacity

Availability:

In stock

$259.82

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	0.820"
Hub Size	1-1/2"
Spline Count	23
PPA Levers	3
PPA Springs	6 Coil Springs
Flywheel Disc Spec	Woven; 1" 15 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Size	11"
Flywheel Step	0.820"
Hub Size	1-1/2"
Spline Count	23
PPA Levers	3
PPA Springs	6 Coil Springs
Flywheel Disc Spec	Woven; 1" 15 Spline Hub; Solid Center
New/Reman	New
Sold As	Each
Warranty	1 Year

Product tags

RE22610 (3)
,
AT30046 (3)
,
AR100649 (3)
,
AT30046 (3)
,
RE22610 (3)
,
R10064KIT1 (1)

Use On Below Models (Click to expand)

John Deere

Loader Backhoe: 401A 401B

Tractor: 1020 USA Manufactured Tractor 1520 w/ Independent PTO, w/o Reverser 2030 USA Manufactured Tractor 2440 w/ Independent PTO, w/o Reverser 2630 w/ Independent PTO, w/o Reverser 2640 w/ Independent PTO, w/o Reverser 300 301 301A 302 400 401 401D
