Larsen LED kit for Challenger 700 / 800 B / C / D / E series.

LED light kit for the Challenger 700 - 800 series. Includes 8 Oval LED-765 lights (4800 lm), if you have 2 OEM HID lights on the rear, and you want to keep them, you can de-select the 2 extra lights. Add headlights if needed - for the A + B series we use H11 LED bulbs, and for the C + D + E we use the LED-409 light unit.
SKU: Cat MT800-all
*
*
*
$0.00
+ -
Product Files
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

Larsen LED kit for Challenger 700 - 800 B / C / D series

This kit will replace the 6 work lights on the rear cab, and the 2 front-facing lights by the tracks. If you have 2 OEM HID lights on the rear, and you want to keep them, you can de-select the 2 extra lights.

The lights used are the LED-765 lights, similar in size and shape to the OEM lights.

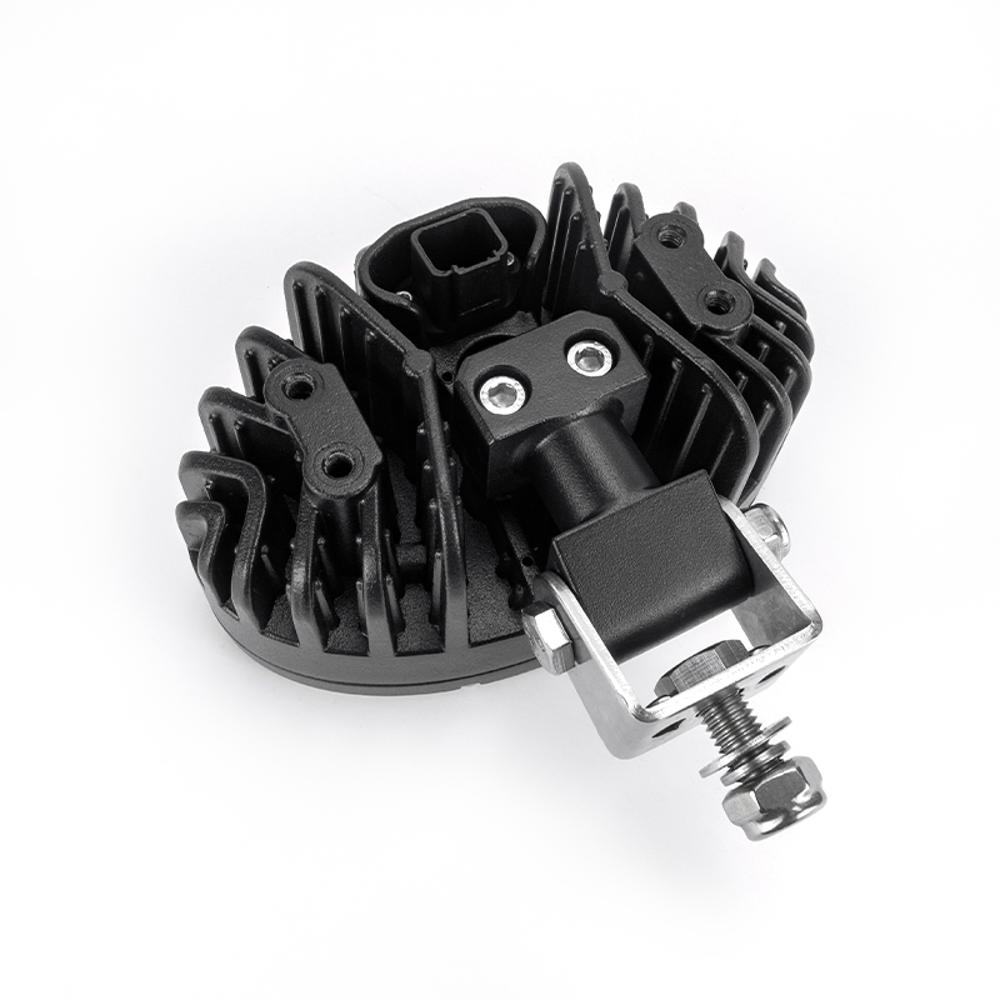

The LED-765 is a plug and play light, 4800 effective lumen, and has an integrated power connector that matches the Challenger plug. 6 of the LED-765 are side mount lights, and 2 (rear center) are bottom mount lights.

The OEM bracket is a little too wide for the LED-765 light, we recommend using a washer as a shim to remove the slack. (not included)

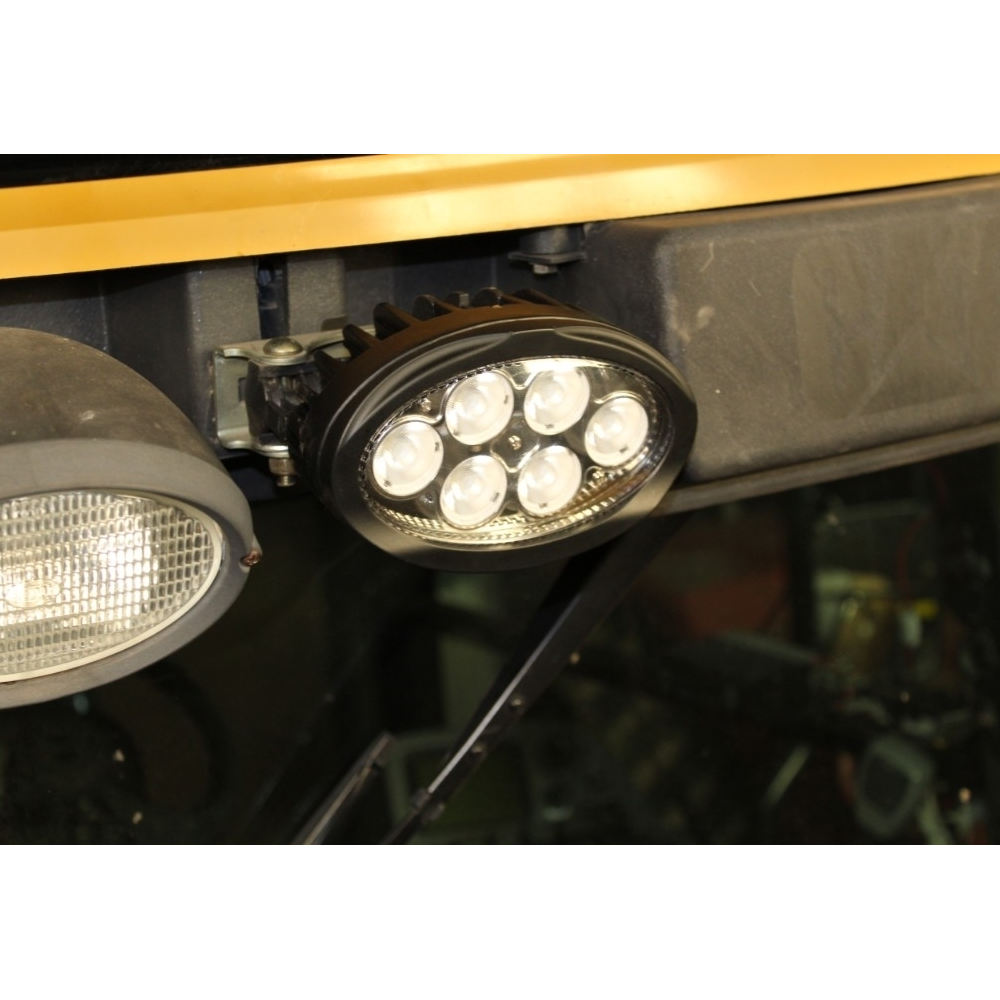

When mounting the LED lights on the rear cab, please install a large washer or make a "washer" from flat iron, and install behind the plastic cab part that the lights mount to. The extra weight of the LED lights can break the plastic otherwise.

For the headlights we can not replace the complete light assembly, instead for the A+B series we replace the bulbs (h11), and for the C+D+E series we use the LED-409 light unit - this light is held in place with 3 screws, and mount into the OEM headlight assembly.

Lights used in this kit can be found in "Related Products"

Larsen LED kit for Challenger 700 - 800 B / C / D series

This kit will replace the 6 work lights on the rear cab, and the 2 front-facing lights by the tracks. If you have 2 OEM HID lights on the rear, and you want to keep them, you can de-select the 2 extra lights.

The lights used are the LED-765 lights, similar in size and shape to the OEM lights.

The LED-765 is a plug and play light, 4800 effective lumen, and has an integrated power connector that matches the Challenger plug. 6 of the LED-765 are side mount lights, and 2 (rear center) are bottom mount lights.

The OEM bracket is a little too wide for the LED-765 light, we recommend using a washer as a shim to remove the slack. (not included)

When mounting the LED lights on the rear cab, please install a large washer or make a "washer" from flat iron, and install behind the plastic cab part that the lights mount to. The extra weight of the LED lights can break the plastic otherwise.

For the headlights we can not replace the complete light assembly, instead for the A+B series we replace the bulbs (h11), and for the C+D+E series we use the LED-409 light unit - this light is held in place with 3 screws, and mount into the OEM headlight assembly.

Lights used in this kit can be found in "Related Products"
