LED-824-S3 Oval with H11 / 880 connector

Be the first to review this product

24 Watt Oval LED work light. Now includes H11 connector (same as 880 series bulb connector) so the light will plug and play on most tractors and combines using the same size light.

SKU: LL0086

Availability:

309 in stock

$31.45

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-824 S3

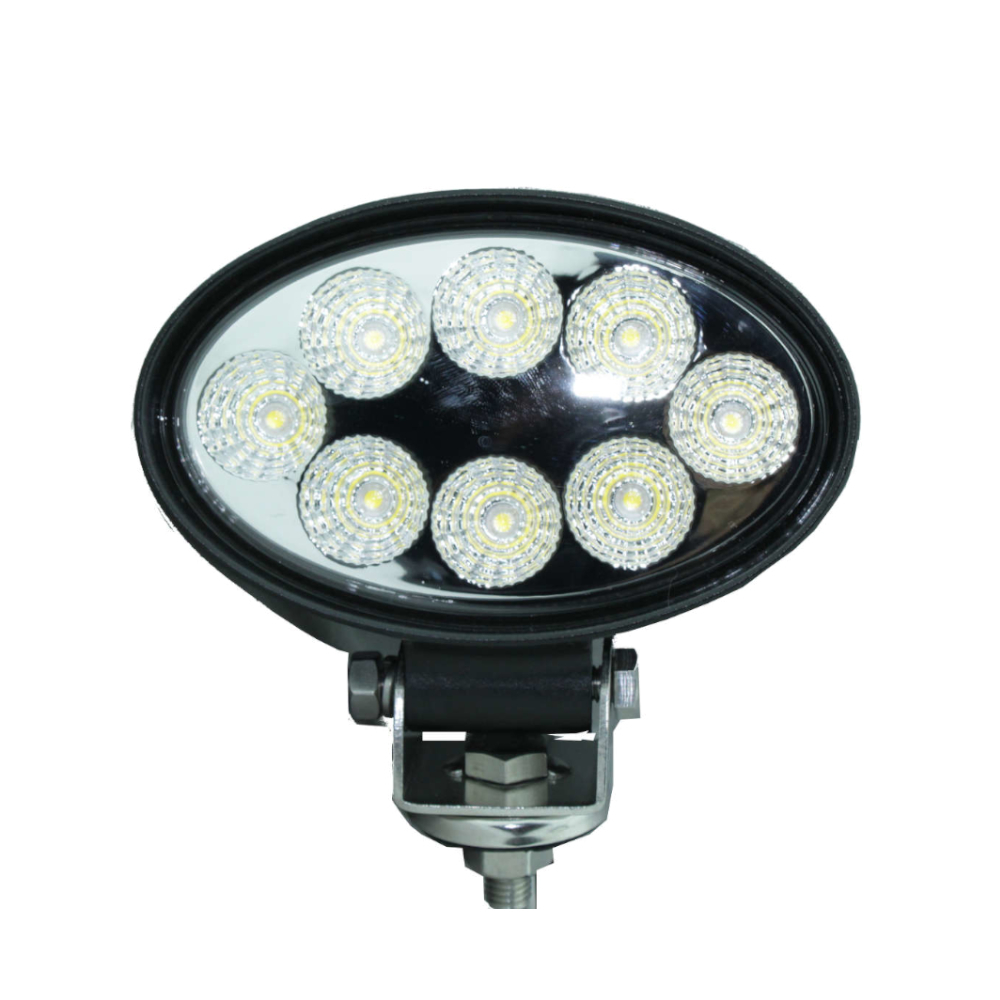

This is a well liked oval 24 watt 60° flood light, mounts anywhere with the stainless steel bracket.

Comes with an H11 connector installed (same as an 880 series bulb / 885 / 886)

Use for: Tractors, Combines, Yellow equipment, ATV's and more.

Specifications :

. LED Power: 24 Watt, Epistar LED 8 x 3W/PC

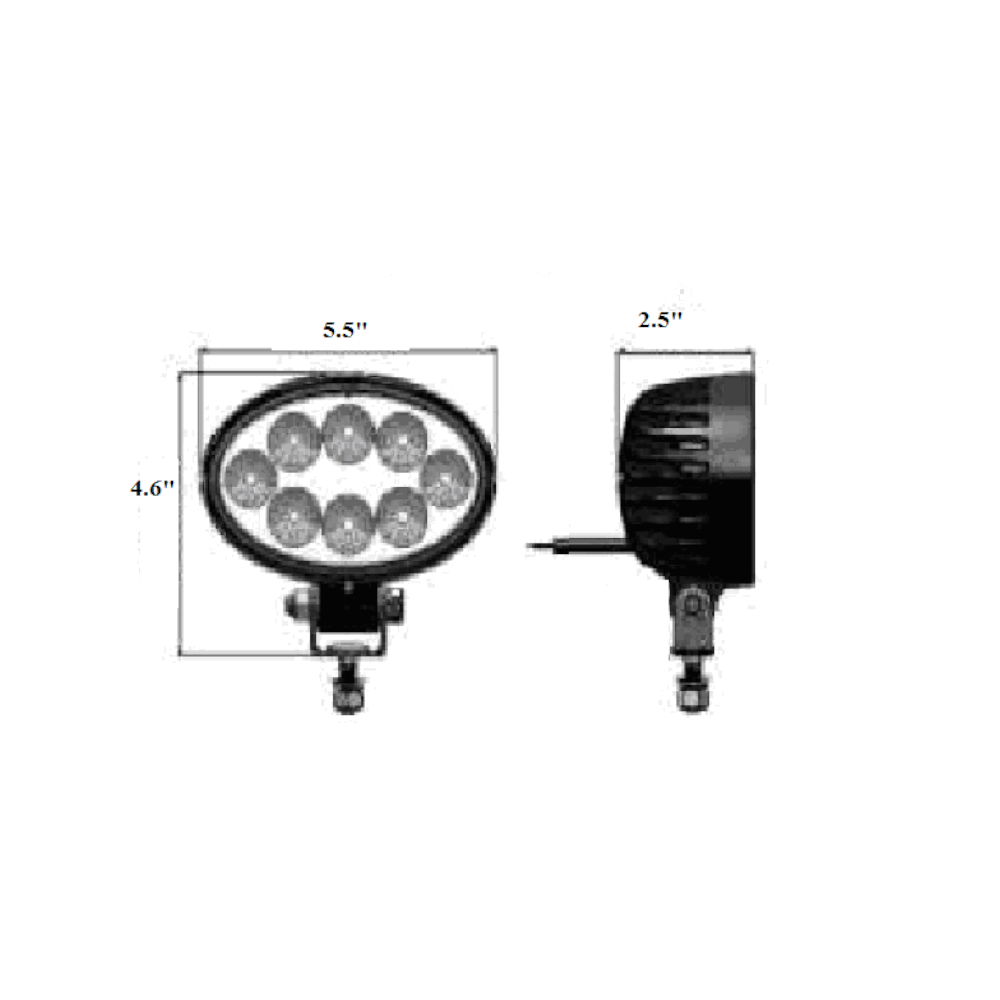

. Size : 5.5 x 4.6 x 2.5 (width x height with stand x depth)

. Mount width 1 7/16" (inside U clamp measurement)

. Operating Volt: 10-30Volt DC

. Lumen :2000 Raw, 1710 Effective

. Power use : 1.55 amp @ 12V – 19 watt

. Color temperature: 6000K

. Operation temperature -40°C~60°C

. Beam: 45° flood beam

. Material: diecast aluminum housing

. Mounting Bracket: stainless steel bracket

. Lens: PC . Housing color: Black

. Life time: >30000h

. Certificate : IP67, CE, ROHS

LED824, LED-824

LED-824 S3

This is a well liked oval 24 watt 60° flood light, mounts anywhere with the stainless steel bracket.

Comes with an H11 connector installed (same as an 880 series bulb / 885 / 886)

Use for: Tractors, Combines, Yellow equipment, ATV's and more.

Specifications :

. LED Power: 24 Watt, Epistar LED 8 x 3W/PC

. Size : 5.5 x 4.6 x 2.5 (width x height with stand x depth)

. Mount width 1 7/16" (inside U clamp measurement)

. Operating Volt: 10-30Volt DC

. Lumen :2000 Raw, 1710 Effective

. Power use : 1.55 amp @ 12V – 19 watt

. Color temperature: 6000K

. Operation temperature -40°C~60°C

. Beam: 45° flood beam

. Material: diecast aluminum housing

. Mounting Bracket: stainless steel bracket

. Lens: PC . Housing color: Black

. Life time: >30000h

. Certificate : IP67, CE, ROHS

LED824, LED-824

Product tags

trapezoid (12)
,
JD (106)
,
45° (1)

Use On Below Models (Click to expand)

Case IH

Combine: 5088 Stubble, Service & Discharge 6088 Stubble, Service & Discharge 7010 Stubble, Service & Discharge 7088 Stubble, Service & Discharge 7120 Stubble, Service & Discharge 7130 Stubble, Service & Discharge 7230 Stubble, Service & Discharge 8010 Stubble, Service & Discharge 8120 Stubble, Service & Discharge 9120 Stubble, Service & Discharge

John Deere

Combine: 9560 Lower cab / auger / rear light. 9560SH Lower cab / auger / rear light. 9560STS Lower cab / auger / rear light. 9560WTS Lower cab / auger / rear light. 9570STS Lower cab / auger / rear light. 9580WTS Lower cab / auger / rear light. 9660 Lower cab / auger / rear light. 9660CTS Lower cab / auger / rear light. 9660iWTS Lower cab / auger / rear light. 9660STS Lower cab / auger / rear light. 9660WTS Lower cab / auger / rear light. 9670STS Lower cab / auger / rear light. 9680iWTS Lower cab / auger / rear light. 9680WTS Lower cab / auger / rear light. 9760STS Lower cab / auger / rear light. 9770STS Lower cab / auger / rear light. 9780CTS Lower cab / auger / rear light. 9780iCTS Lower cab / auger / rear light. 9860STS Lower cab / auger / rear light. 9870STS Lower cab / auger / rear light. S550 Lower cab / auger / rear light. S650 Lower cab / auger / rear light. S660 Lower cab / auger / rear light. S670 Lower cab / auger / rear light. S670 Hillmaster Lower cab / auger / rear light. S680 Lower cab / auger / rear light. S680 Hillmaster Lower cab / auger / rear light. S690 Lower cab / auger / rear light. S690 Hillmaster Lower cab / auger / rear light. S760 Lower cab / auger / rear light. S770 Lower cab / auger / rear light. S780 Lower cab / auger / rear light. S785 Lower cab / auger / rear light. S790 Lower cab / auger / rear light.

Kubota

Tractor: M100X use own connector M105X use own connector M108S use own connector M108X use own connector M110X use own connector M125X use own connector M126X use own connector M135X use own connector M5040 use own connector M5140 use own connector M6040 use own connector M6060 use own connector M7040 use own connector M7060 use own connector M8540 use own connector M9540 use own connector M95X use own connector M96S use own connector
