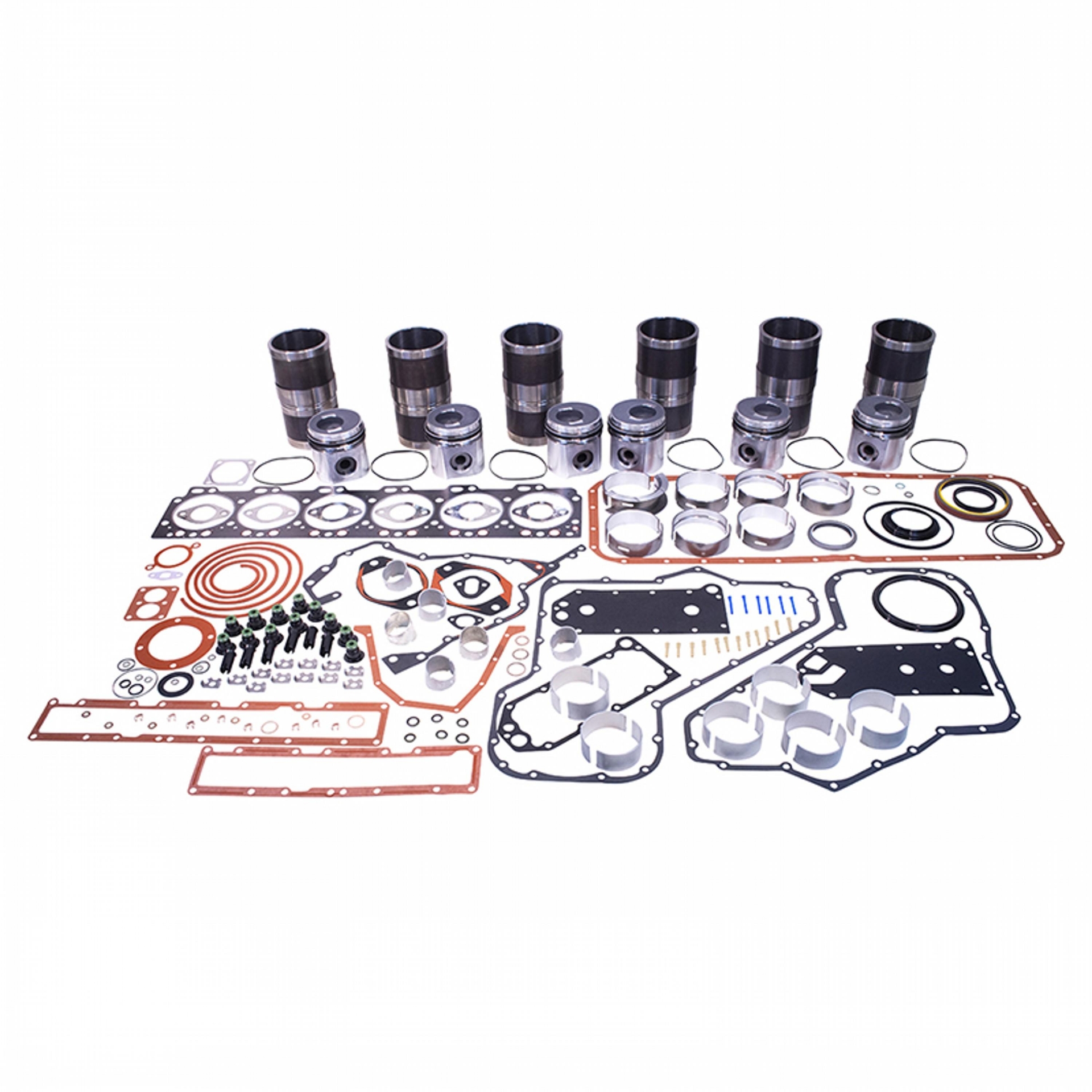

Major Overhaul Kit, Cummins 6TA830 Diesel

Be the first to review this product

Includes:

(6) ##HCRK3970951## Boreable Piston Pin Bushings
(1) ##HCRK3800558## Conversion Gasket Set
(6) ##HCRRP1066## Cylinder Kits
(1) ##HCRK4025271## Head Gasket Set
(1) ##HCRK3945917## Main Bearing Set, Standard
(6) ##HCRK3901430## Rod Bearings, Standard

Manufacturer: Vendor: Hy-Capacity

SKU: HCRRP1089

Availability:

In stock

$1,537.54

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Engine Manufacturer	Cummins
Piston Marked	7707
Engine CID	505
Fuel Type	Diesel
Cylinder Count	6
Bore	4.488"
Stroke Length	5.315"
Rod Journal Dimensions	2.9916" - 2.9926"
Main Journal Dimensions	3.8568-3.8588"
New/Reman	New
Sold As	Each
Warranty	1 Year

Products specifications

Attribute name	Attribute value
Engine Manufacturer	Cummins
Piston Marked	7707
Engine CID	505
Fuel Type	Diesel
Cylinder Count	6
Bore	4.488"
Stroke Length	5.315"
Rod Journal Dimensions	2.9916" - 2.9926"
Main Journal Dimensions	3.8568-3.8588"
New/Reman	New
Sold As	Each
Warranty	1 Year

Use On Below Models (Click to expand)

Case IH

Combine: 2377 Cummins 6TA830 Diesel, Short Sleeve 9.21" long, 5.150" Flange O.D, Piston Marked 7707

COMBINE: 2366 Cummins 6TA830 Diesel, Short Sleeve 9.21" long, 5.150" Flange O.D, Piston Marked 7707

Power Unit: PX190 Cummins 6TA830 Diesel, Short Sleeve 9.21" long, 5.150" Flange O.D, Piston Marked 7707 PX215 Cummins 6TA830 Diesel, Short Sleeve 9.21" long, 5.150" Flange O.D, Piston Marked 7707 PX240 Cummins 6TA830 Diesel, Short Sleeve 9.21" long, 5.150" Flange O.D, Piston Marked 7707

Tractor: MX210 Cummins 6TA830 Diesel, Short Sleeve 9.21" long, 5.150" Flange O.D, Piston Marked 7707 MX230 Cummins 6TA830 Diesel, Short Sleeve 9.21" long, 5.150" Flange O.D, Piston Marked 7707

New Holland

Power Unit: SE190 Cummins 6TA830 Diesel, Short Sleeve 9.21" long, 5.150" Flange O.D, Piston Marked 7707 SE215 Cummins 6TA830 Diesel, Short Sleeve 9.21" long, 5.150" Flange O.D, Piston Marked 7707 SE240 Cummins 6TA830 Diesel, Short Sleeve 9.21" long, 5.150" Flange O.D, Piston Marked 7707

Tractor: TG210 Cummins 6TA830 Diesel, Short Sleeve 9.21" long, 5.150" Flange O.D, Piston Marked 7707 TG230 Cummins 6TA830 Diesel, Short Sleeve 9.21" long, 5.150" Flange O.D, Piston Marked 7707
