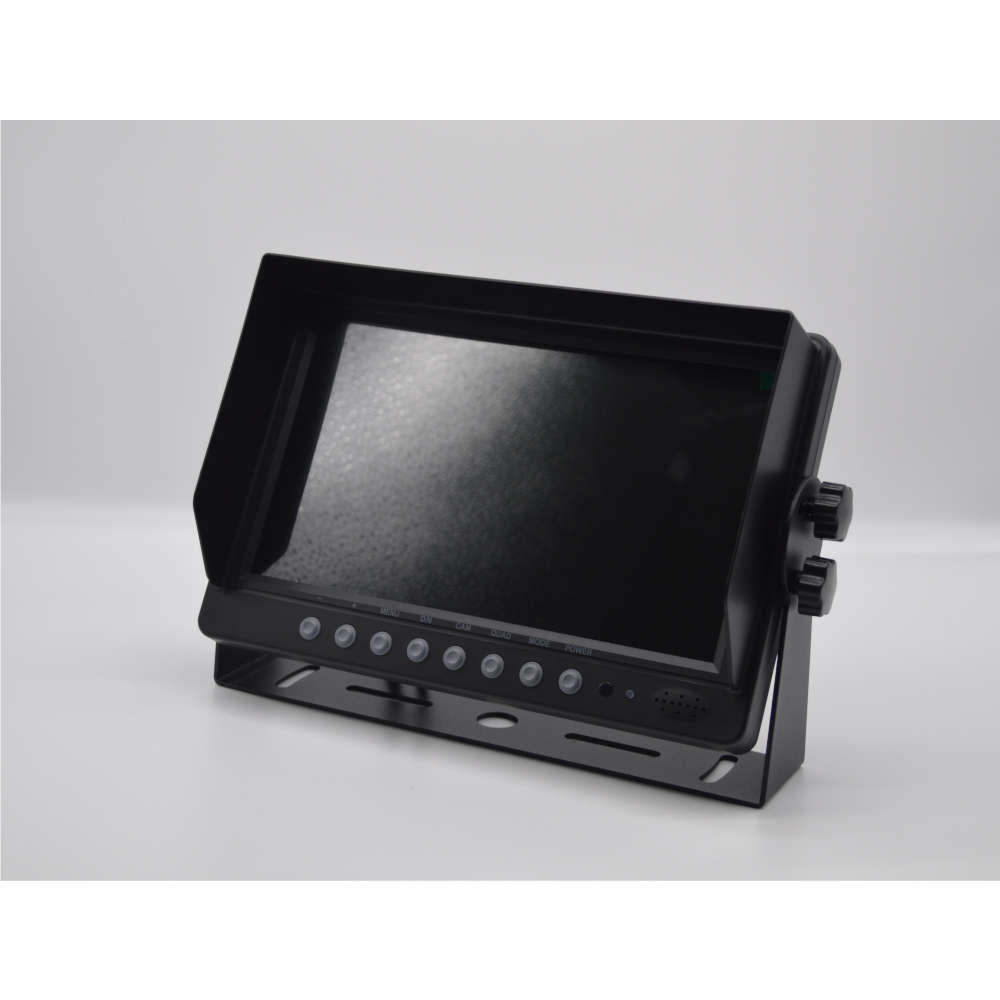

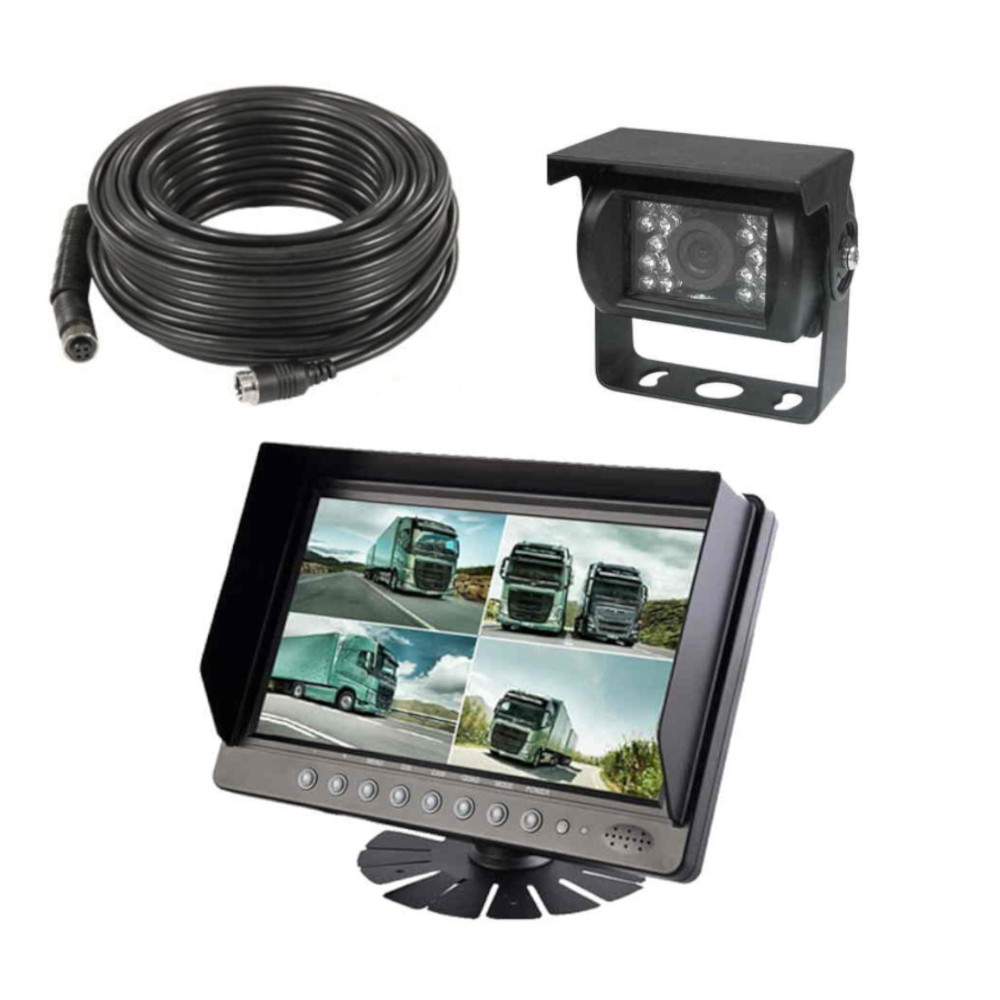

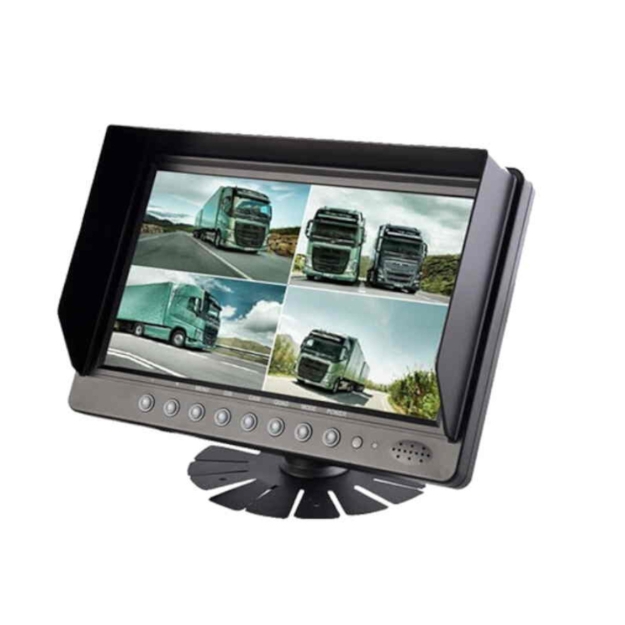

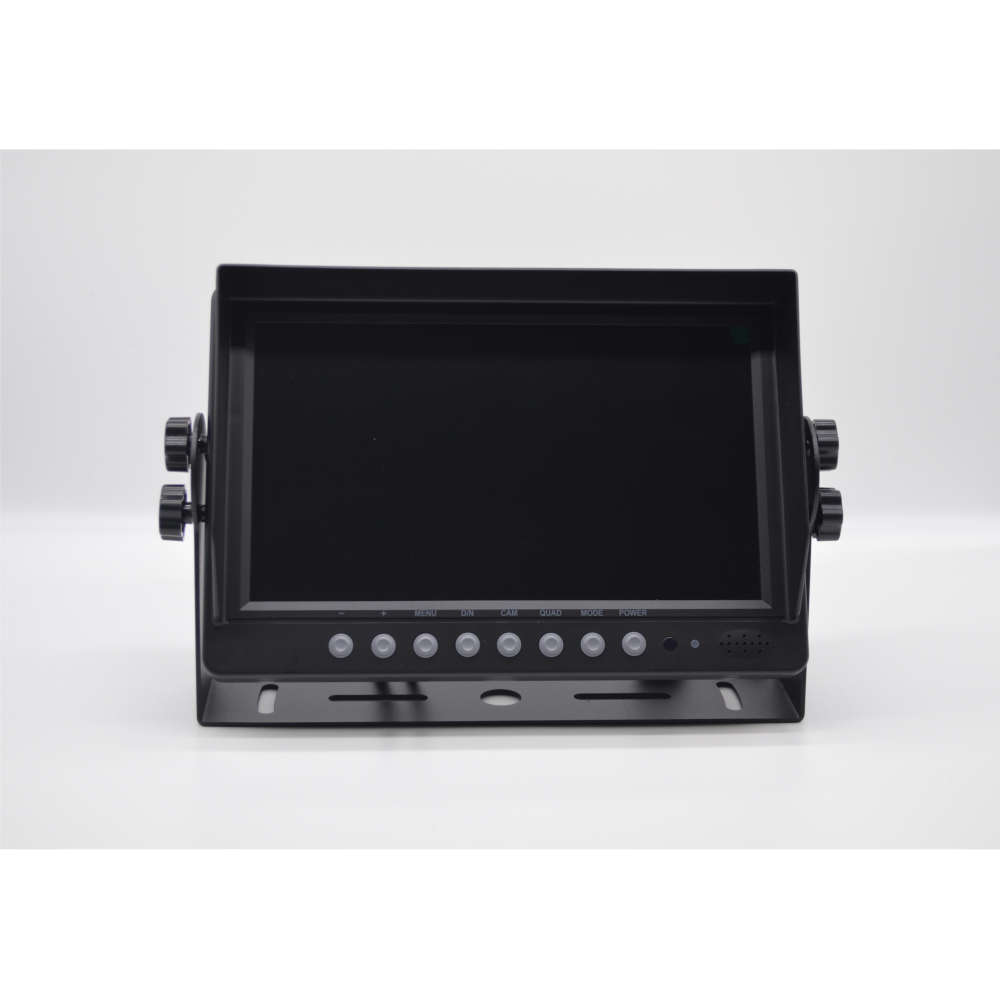

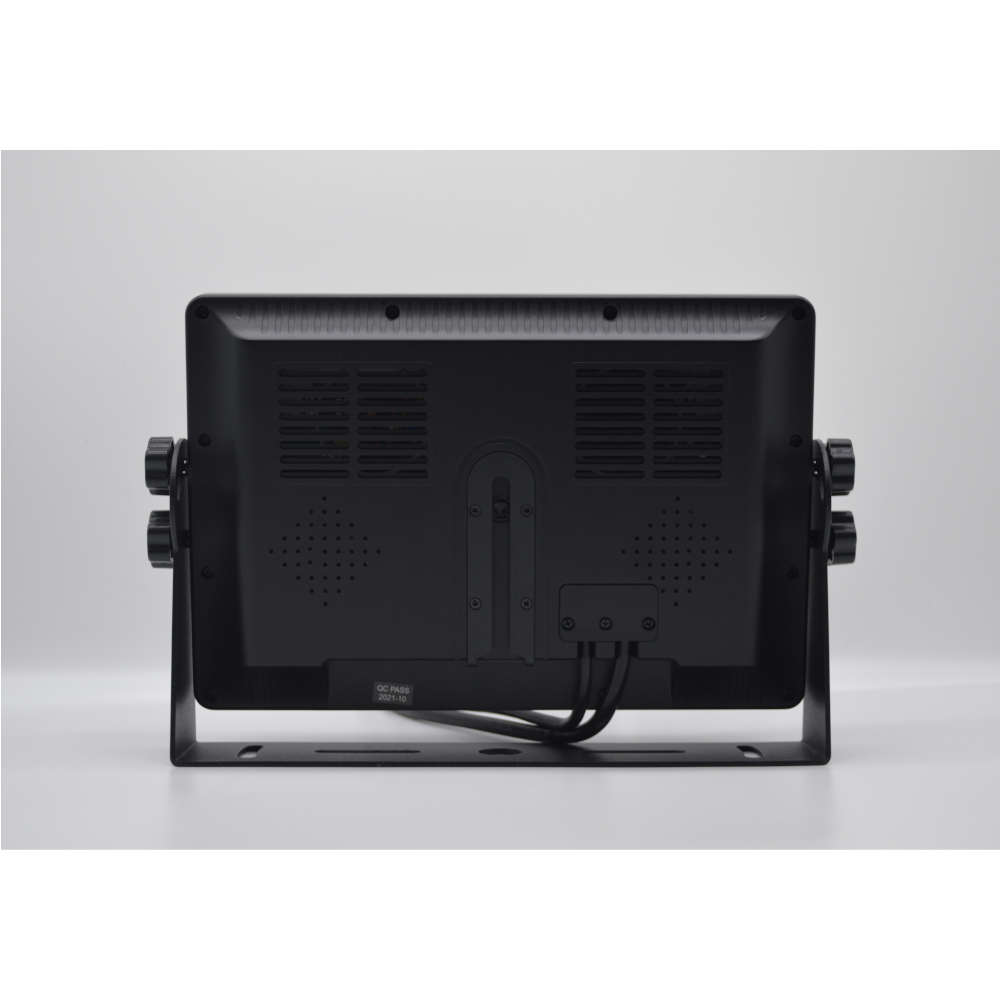

Larsen Monitor VPM9002Q - 9 inch monitor, quad view - see up to 4 cameras on the screen.

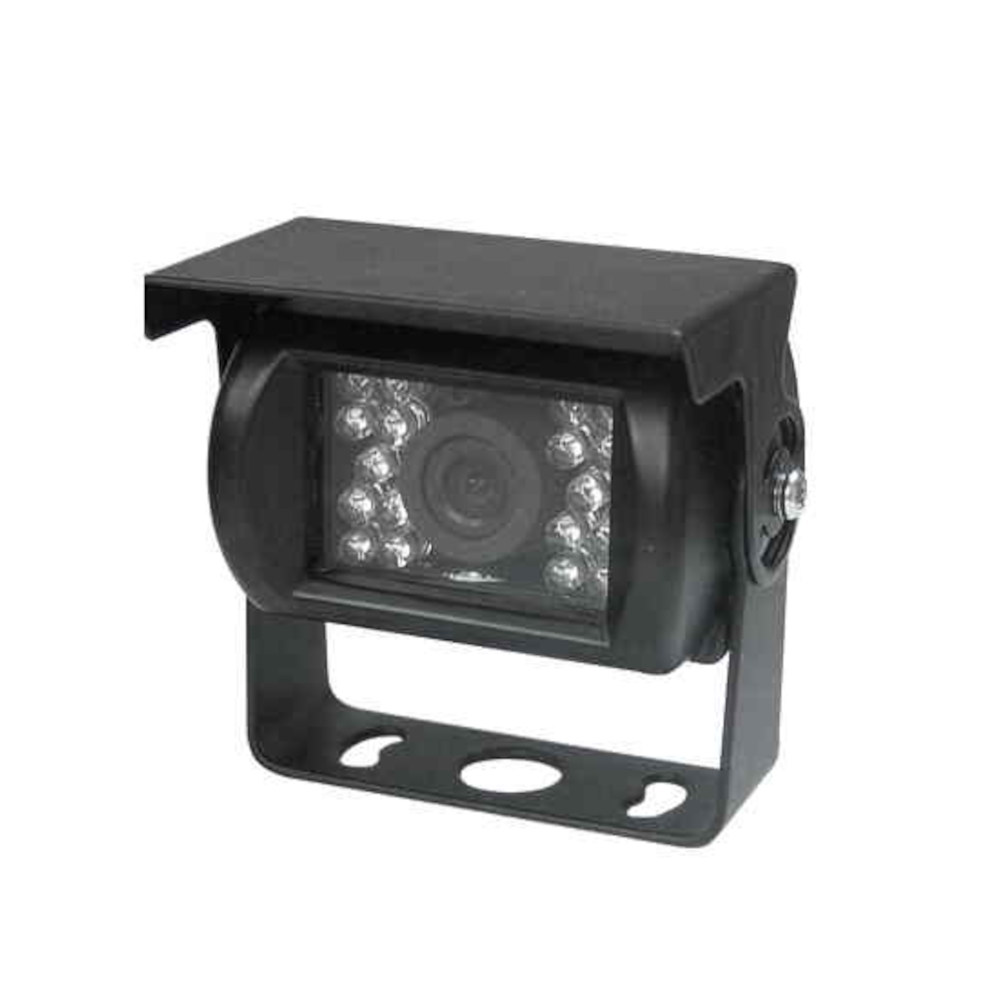

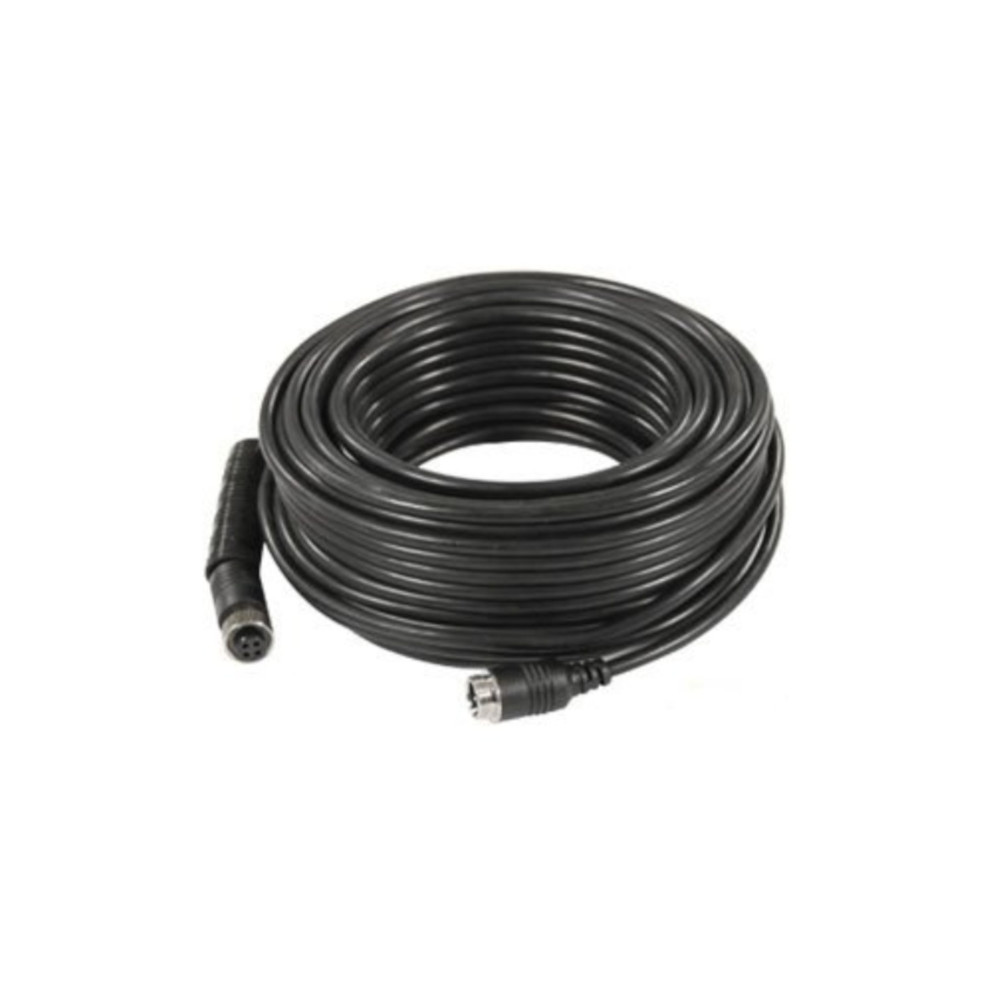

Add camera(s) and cable(s) as needed.
- TFT LCD Monitor with wide angle view and high resolution.
- Multiple video formats available: PAL/NTSC/AUTO.
- 4 video inputs, 4 audio inputs.
- Operates from 10~32, Support 12V or 24V automobile battery.
- Auto switch to back-up, left or right camera view.
- Multiple languages available for user operation.
- Image adjustable for Horizontal, Vertical, Mirror and Normal view.
- Built in speaker.
- Single, Dual, Triple and Quad image mode optional.
- Full function remote control.
LCD size: 9"
TV System: PAL / NTSC
Resolution: 800 x 3 (RGB) x 480
Contrast: 500:1
Brightness: 400 cd/m²
Viewing angle: U: 50 / D: 60, R/L: 70
Operating temperature: -20~+70ºC, RH 90%
Storage temperature: -30~+80ºC, RH 90%
Power inputs: DC 10~32 V
Power consumption: Max. 25W
Power for cameras: Max. 4 x 300mA, 12V
Video inputs: 4 inputs
Audio inputs: 4 inputs
Tirgger signal: 4 tirgger wires
