Sorry - this product is no longer available

Larsen LED kit for JD 8x60/70 - Standard Par-36 LED bulbs

Be the first to review this product

2 Hi-Lo (wire on high) and 2 trapezoid lights for the front grill lights, 2 flood and 2 trapezoid for the top roof lights & 2 flood and 2 trap for the rear fender lights. . (1400 lumen each bulb)

SKU: JD8x60/70-2

Included: *

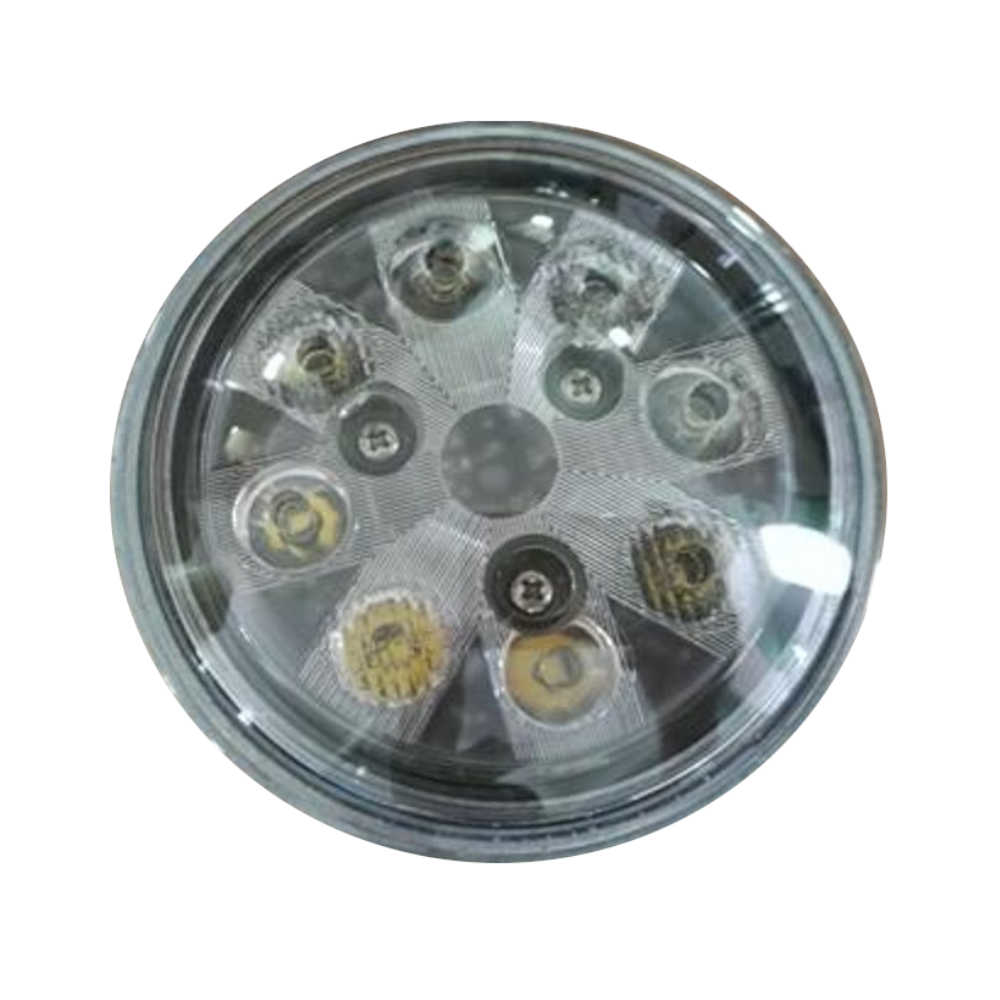

2 x Par-36 Hi-Lo (wire on high if needed as spot)
4 x Par-36 Flood
6 x Par-36 Trapezoid

Add signal lights:

4 x LED-91 flasher with built in resistor

$0.00

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

JD 8x60 LED upgrade. (1400 lumen each bulb)

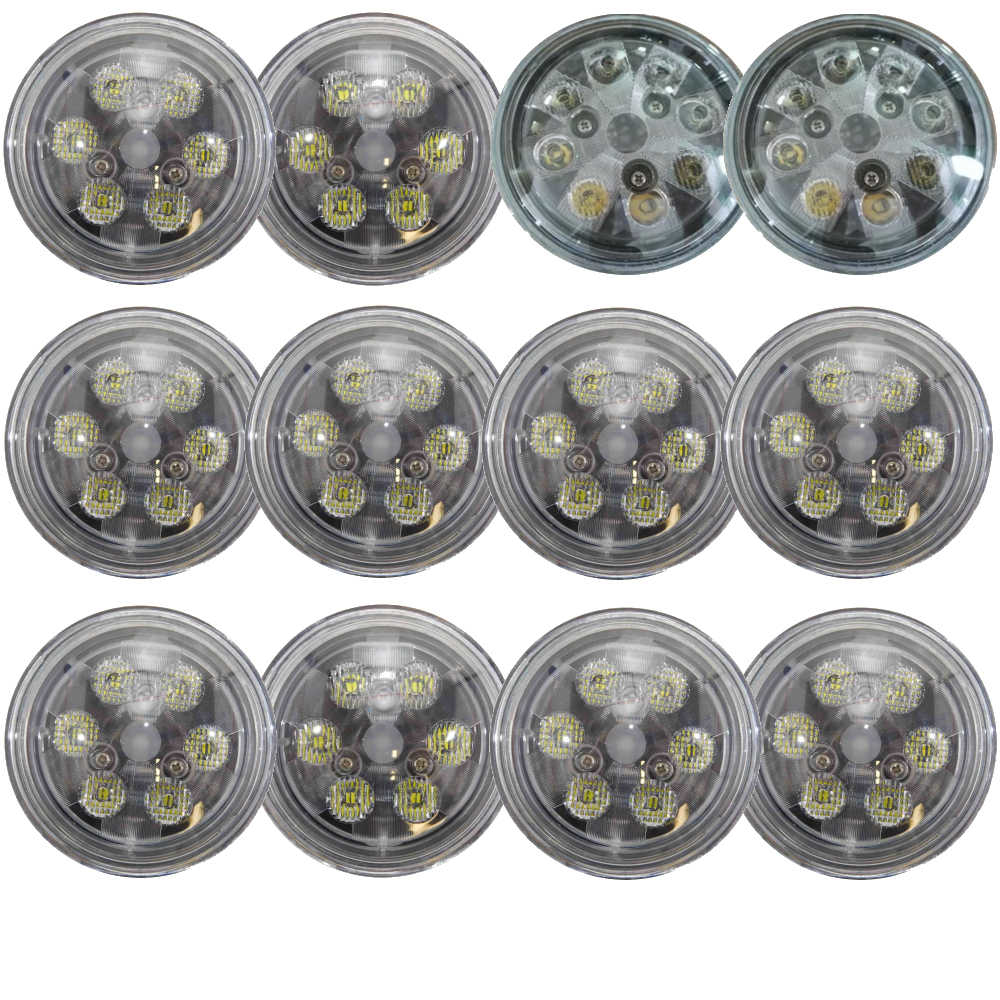

12 Par-36 LED bulbs included in this packet, changes all lights to LED using the existing housings. From 600 lumen/bulb to 1450 lumen/bulb.

Easy to install - just cut off the existing connector and install a female spade connector (included), connect wiring to light and install in housing!

For the Hi-Lo bulb, if your tractor only has 2 wires to the light, install the wires to feed the H and G terminals - the light will be on high beam when on.

This kit will really improve the lights on the 8x60 series JD.

Suggested placement: 2 Hi-Lo and 2 trapezoid lights for the front grill lights, 2 flood and 2 trapezoid for the top roof lights & 2 flood and 2 trap for the rear fender lights.

Lights used in this kit can be found in "Related Products"

JD 8x60 LED upgrade. (1400 lumen each bulb)

12 Par-36 LED bulbs included in this packet, changes all lights to LED using the existing housings. From 600 lumen/bulb to 1450 lumen/bulb.

Easy to install - just cut off the existing connector and install a female spade connector (included), connect wiring to light and install in housing!

For the Hi-Lo bulb, if your tractor only has 2 wires to the light, install the wires to feed the H and G terminals - the light will be on high beam when on.

This kit will really improve the lights on the 8x60 series JD.

Suggested placement: 2 Hi-Lo and 2 trapezoid lights for the front grill lights, 2 flood and 2 trapezoid for the top roof lights & 2 flood and 2 trap for the rear fender lights.

Lights used in this kit can be found in "Related Products"

Use On Below Models (Click to expand)

John Deere

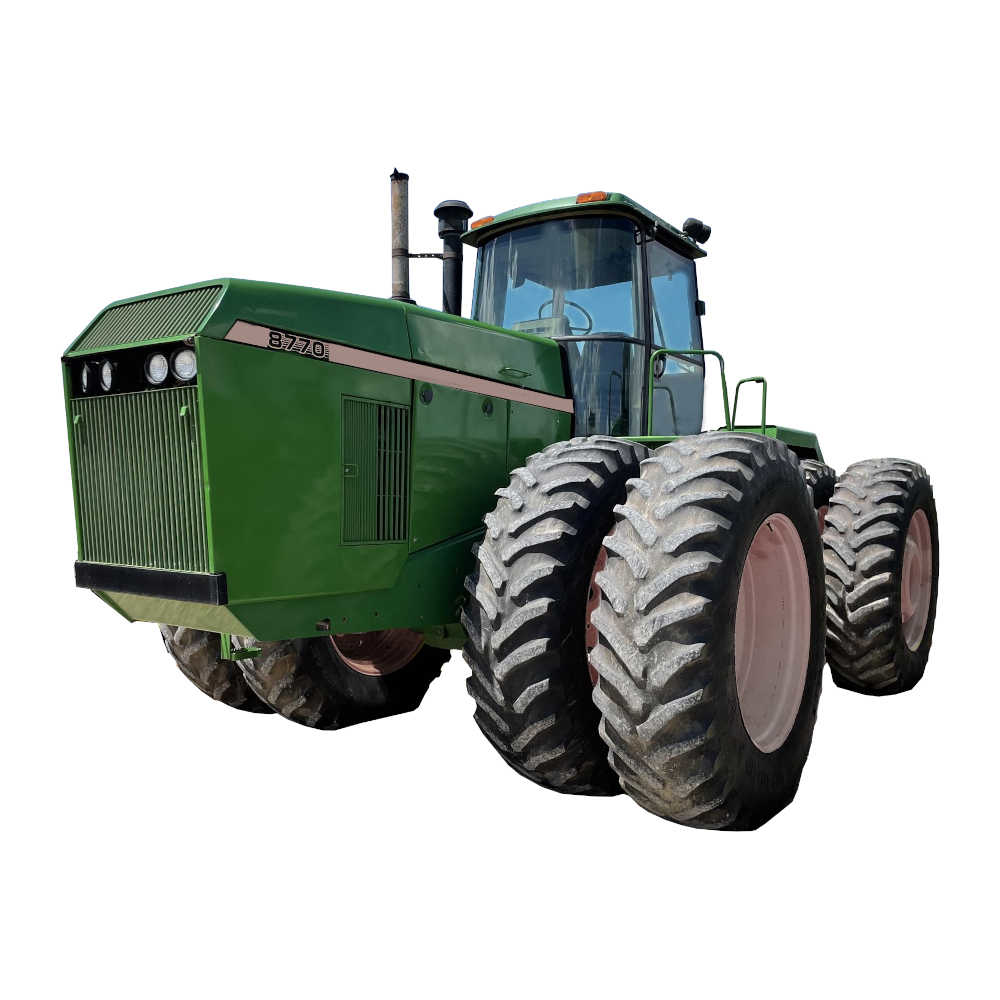

Tractor: 8560 8570 8760 8770 8870 8960 8970
