Front
Front LED-510 High Beam LED-4303 High Beam LED-3301A JDD84 LED-409 JDD84-3

Larsen LED headlight selection guide for JD 9xxxR series tractors.

Be the first to review this product
This is for replacing the headlight units in the grill fixtures on the 9xxxR series tractor. It is only for the grill lights and is meant to help you select the correct replacement lights, as there are many to choose from. Note that the lights will not replace OEM LED lights.
SKU: JD9xxxR-headlights
$0.00
+ -
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

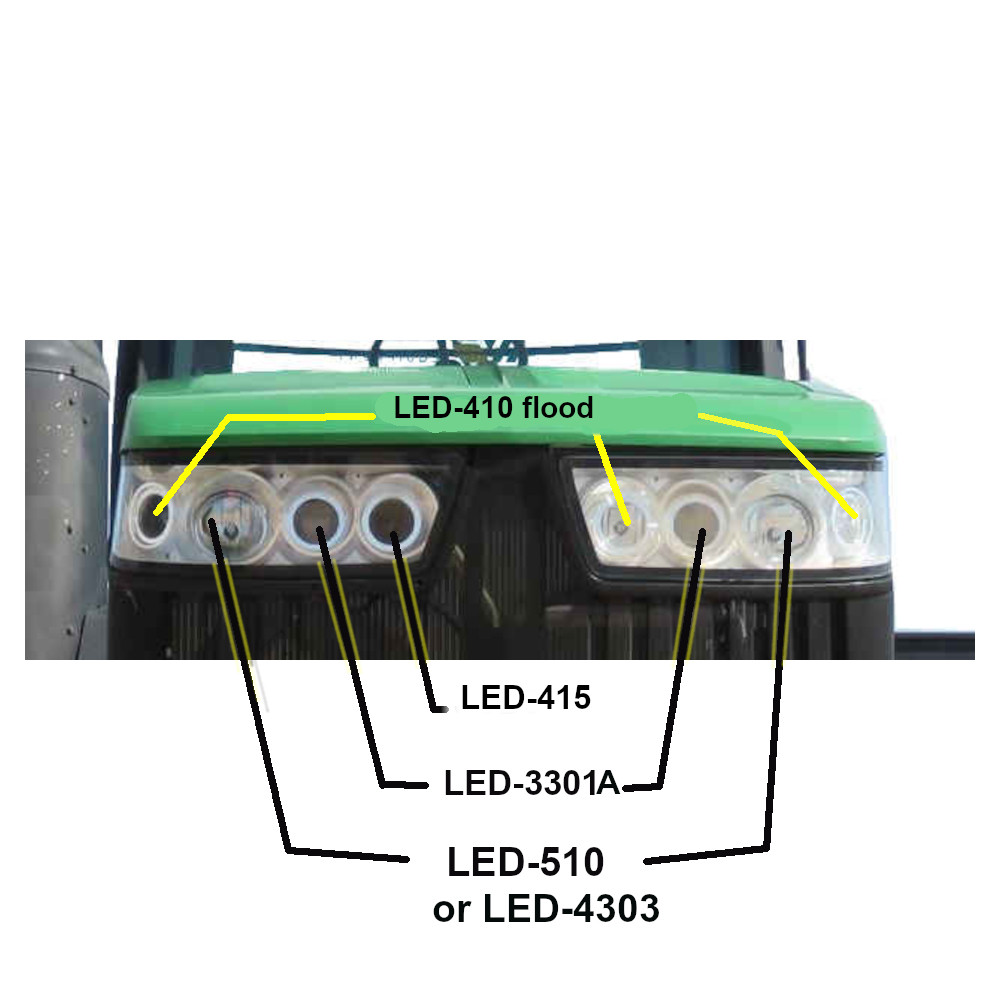

Larsen LED headlight  selection guide for JD 9xxxR series tractors and sprayers.



Note that the lights will not replace OEM LED lights.

Note: LED-510 and LED-4303 are both High beam lights, they work/fit in the same location, so order only 1 of them.

Same for the LED-409 and JDD84 - they both work/fit in the same location. Max 3 used - the 4th light will be the JDD84-3.

Only order the JDD84-3 (the one with the long arm) if you currently have a light in that location, this light will not install without the OEM hardware from the OEM light.

Lights used in this kit can be found in "Related Products"





Larsen LED headlight  selection guide for JD 9xxxR series tractors and sprayers.



Note that the lights will not replace OEM LED lights.

Note: LED-510 and LED-4303 are both High beam lights, they work/fit in the same location, so order only 1 of them.

Same for the LED-409 and JDD84 - they both work/fit in the same location. Max 3 used - the 4th light will be the JDD84-3.

Only order the JDD84-3 (the one with the long arm) if you currently have a light in that location, this light will not install without the OEM hardware from the OEM light.

Lights used in this kit can be found in "Related Products"





Product tags
Use On Below Models (Click to expand)
Write your own review
*
*
  • Bad
  • Excellent
Related products / Used in kit
Picture of LED-4303 High beam

LED-4303 High beam

LL0653
This is the large high beam light in the grill (the center light of the 3 lights on each side) on the newer models of JD "R" series tractors. Includes rubber grommet.
$69.00
Picture of LED-510 - for JD "R" series headlights

LED-510 - for JD "R" series headlights

LL0550
This is the large light in the grill (the center light of the 3 lights on each side) on the newer models of JD "R" series tractors.
$69.00

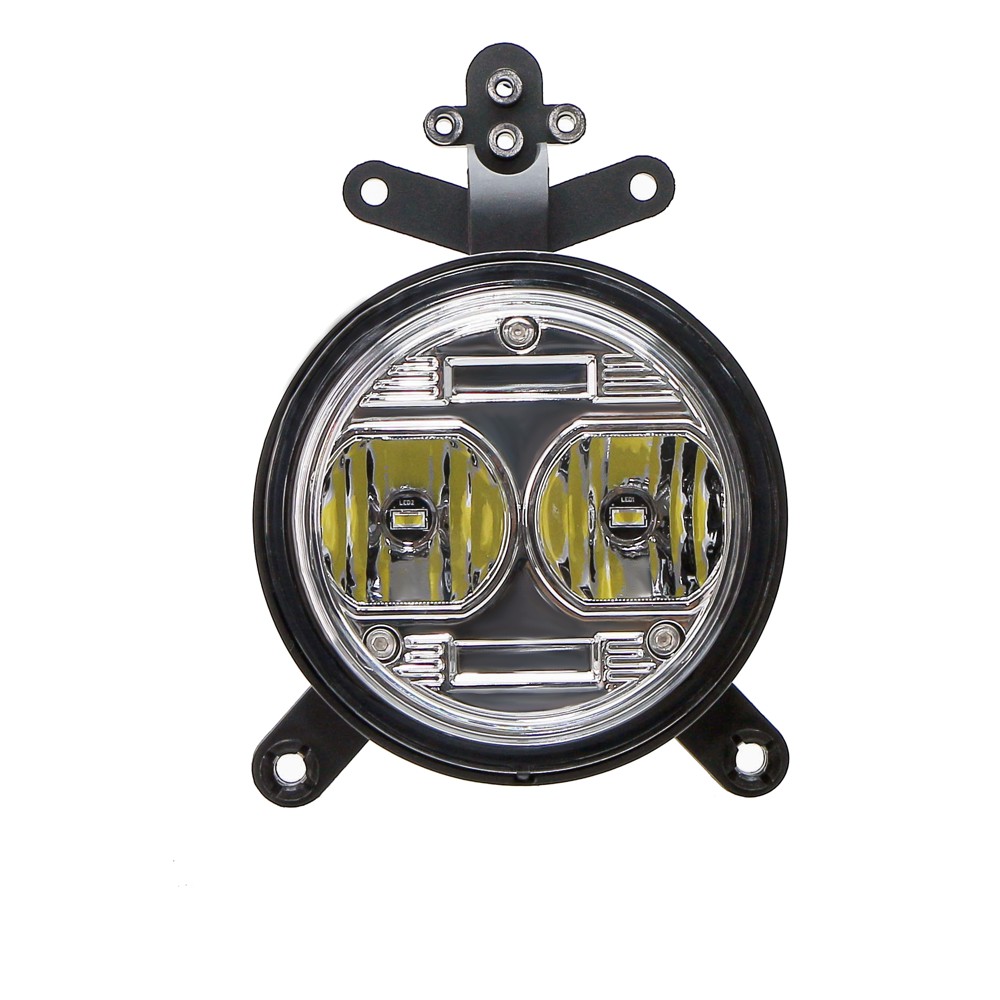

Picture of LED-3301A, Low beam for JD 9xxx R series

LED-3301A, Low beam for JD 9xxx R series

LL0600
LED-3301A, Low beam for JD 9xxx R series
$62.00
LED-409

LED-409A 40° Flood beam

LL0072
LED-409A - a 40 watt, 40° beam LED light for the center grill lights on newer CaseIH tractors. 3 used for the MX / Magnum, and 6 for the large STX models. Also available as Spot beam. John Deere OEM Part Number: AL209455, Challenger OEM Part Numbers: 519438D1, 526701D1. CASE / IH OEM Part Numbers: 87539115, 87328621. Will bolt into CIH OEM light housing part #: 87455676, 87455677, 87308895.
$51.00
LED-409

LED-409A 15° Spot beam.

LL0317
LED-409A - a 40 watt, 15° beam LED light for the center grill lights on newer CaseIH tractors. 3 used for the MX / Magnum, and 6 for the large STX models. Also available as Flood beam. John Deere OEM Part Numbers: AL209455. Challenger OEM Part Numbers: 519438D1, 526701D1. CASE / IH OEM Part Numbers: 87539115, 87328621. Will bolt into CIH OEM light housing part #: 87455676, 87455677, 87308895.
$51.00

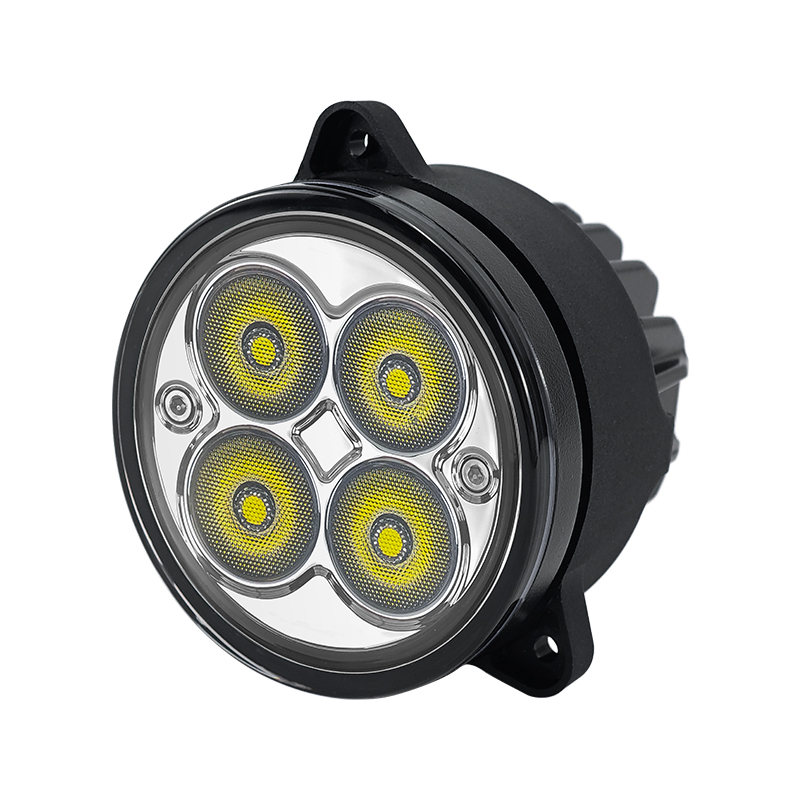

JDD84

JDD84 – made to fit JD "R" series tractors and sprayers. Thomas LED.

LL0538
JDD84 60° is a 3" LED light for replacing the smaller grill light on some JD "R" series tractors and sprayers. (For headlights assemblies with 3 lights on each side) If you are replacing factory HID lights, you will need adapter cable LL0591 - Adapter 9005 male to H11/ 880 female. JD part # AL209455
$78.00

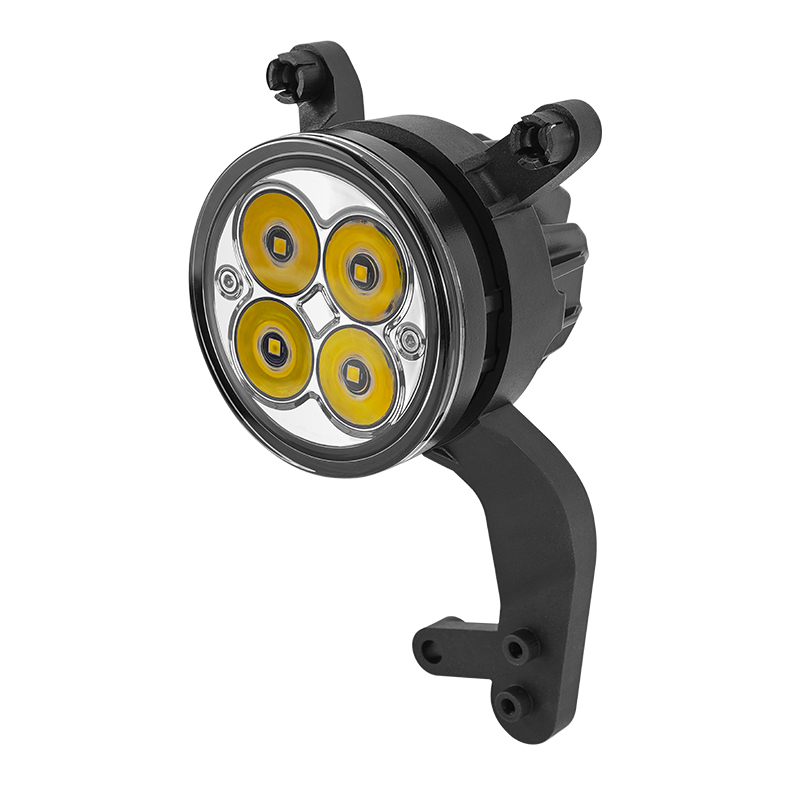

JDD84-3

JDD84-3 made to fit JD "R" series tractors

LL0612
JDD84-3 is a 3" LED light with 3 mounting "arms" for replacing the smaller grill light on some JD "R" series tractors. (For headlights assemblies with 3 or 4 lights on each side) This is the 1st light to the right of the center grill (looking forward) Only 1 is used.
$95.50
Customers who bought this item also bought
LED-765

LED-765 Oval LED Light

LED-765 series
LED-765 is a 4x6 style Oval LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5000-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-665.
$76.00
