8000 Series / 8000R

Larsen LED Kit for JD 8000 / 8010 tractors. Included 12 lights, add up to 4 more lights for the front cab if OEM installed on the tractor. Add flashers if needed. Note the serial number break - for older models - 1994-1995 serial # below 002215 this kit includes adapter cables that plug in to the connector JD used at that time, and includes the standard mounts for the LED-760 lights. If a newer model, the kit will include the ball mount brackets for use with the OEM hardware. Note that there is a "gray area" serial #002802 - 009495 where both light types were used, please check the pictures to confirm what type you have if needed.

16 light kit - Included: 2 LED-640 center grill lights, 2 x LED-640 flood for the outer front grill lights, 4 JD 2x5 lights for the front top cab, 2 x LED-765 80° flood for the rear fender, 2 x LED-765 60° narrow flood for the rear cab, 2 side mount LED-765 40° lights for the front cab beltline, and 2 x LED-765 60° flood for the lower cab lights. 16 lights total.

JD 8x20 series LED light upgrade. This kit can be customized so it works for tractors with OEM HID Xenon lights, and for tractors without that need all new LED lights. If you select the option for tractors with OEM HID Xenon lights, you will keep those lights and only replace the halogen lights. Extra common lights can be added to the kit as needed. The lights used are the HP-5, a 5000 effective lumen light, and the LED-6060 for the grill Hi-Lo lights.

JD 8x20 series LED light upgrade. This kit can be customized so it works for tractors with OEM HID Xenon lights, and for tractors without that need all new LED lights. If you select the option for tractors with OEM HID Xenon lights, you will keep those lights and only replace the halogen lights. Extra common lights can be added to the kit as needed. The lights used are the LED-765, a 4800 effective lumen light, or the LED-6075, a 6000 lumen light, and the LED-6060 for the grill Hi-Lo lights.

JD 8x20 series LED light upgrade. This kit can be customized so it works for tractors with OEM HID Xenon lights, and for tractors without that need all new LED lights. If you select the option for tractors with OEM HID Xenon lights, you will keep those lights and only replace the halogen lights. Extra common lights can be added to the kit as needed. The lights used are the LED-765, a 4800 effective lumen light.

JD 8xxx R series LED light upgrade. 10 x Larsen LED work lights for the cab are included in this kit. 2 light models to choose from - the LED-7604 model, a 4800 lm light - or the LED-6075, a 6000 lumen light. Over 48000 effective lumen in the cab lights alone, if LED-6075 lights are used it is over 60000!! Add fender lights if needed - some models have HID Xenon lights OEM, and might not need new LED lights for that location. Add grill lights depending on the year/model. See the pictures in the description.

JD 8xxx R series LED light upgrade. 10 x Thomas LED work lights for the cab are included in this kit. 2 light models to choose from - the HP-4 model, a 4300 lm light - or the HP-5, a 5000 lumen light. Over 43000 effective lumen in the cab lights alone, if HP-5 lights are used it is over 45800!! Add fender lights if needed - some models have HID Xenon lights OEM, and might not need new LED lights for that location. Add grill lights depending on the year/model. See the pictures in the description.

This kit is specifically designed to replace the headlight units in the grill fixtures of R series tractors and sprayers. Please note that it is intended only for the grill lights and aims to assist you in selecting the appropriate replacement lights among the many options available. Note that the lights will not replace OEM LED lights.

High Power LED 2 x 5 LED light for the top front cab on the 6000-7000-8000 series tractor. 30° or 60° beam. Can also be used in the nosecone on the 55 and 60 series tractors. Lumen: 3000 Raw, 2400 Effective.

LED 2 x 5 LED light for the top front cab on the 55 & 60 series + 6000-7000-8000 series tractor. Flood beam.

LED 2x5 LED light for the top front cab on the 7000-8000 series tractor, and front hood light on older JD’s, 55 and 60 series. 50° beam pattern. 1700 effective lumen.

LED-6075 Oval LED Light . This is a light similar to the Thomas HP-5 light, but 1000 lumens brighter at 6000 effective lm. Includes a pigtail wire for power. Select from 20° / 40° / 60° / 80° beam types. Please add adapter wires as needed.

Perfect size light with the 1" ball mount for the center grill lights on the JD 8000/8010 series tractors. 6 x 5 watt CREE LED's, 5200 kelvin, 2700 lumen effective. This light is now made so only half the LED's turn on if on low beam, on high beam all LED's are on. Adapter cable that connects the wires from the corner lights to the center lights included and is needed for the function of the lights.

Perfect size light with the 1" ball mount for the center grill lights on the JD 8000/8010 series tractors. Now 8 x 5 watt CREE LED's, 5500 kelvin, 3200 lumen effective. 60° flood or 40° combo headlight. The LED-640 center grill light (40°) is made so only half the LED's turn on if on low beam, on high beam all LED's are on. Adapter cable that connects the wires from the corner lights to the center lights included and is needed for the function of the lights.

LED-760 is a 4x6 style LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5200-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-660.

LED-765 is a 4x6 style Oval LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5000-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-665.

EHP-4 Oval, 20°, 40°, or 60° light, for the built-in "flush-mounted" lights on the "R" series JD tractors and sprayers.

LED-3301, Low beam for JD 8xxx R series. Replaces JD part# RE288372, RE288373, RE563608, RE563609.

LED-3301A, Low beam for JD 9xxx R series

LED-7605F, 40° or 60° light for the built-in cab lights on the "R" series JD tractors and sprayers.

HP-5 - Oval 5000 lumen LED work light. 20°, 40° or 60° beam.

Thomas LED "JD Bracket". Needed for installing the Thomas HP-4 and HP-5 on some positions on JD tractors and combines - used for the "hanging" cab lights, eg. front cab lights on combines and "R" series Tractors.

LED-4060 can be ordered as flood or spot beam, and is used for the 20 and 30 series JD tractors and other machines. Replaces John Deere Part Numbers: RE271574, RE181282, RE180613, RE271573. Replaces Buhler/Versatile Part Numbers: 86034865, 86034864, 86038024.

LED-6060 is an oval LED light for CIH combines and some JD tractors. Select from Hi-Lo beam or Flood beam. Replaces Case IH® Part Numbers: 87106352, 87106354. Replaces John Deere® Part Numbers: RE260102, RE173600. Effective Output: Low beam 2700 lumen, high beam / flood beam 5400 lumen.

An oval LED-652 Hi-Lo or Flood LED light for some JD tractors and CaseIH combines. The Hi-Lo model fits in the hood on many newer JD tractors, and both the Hi-Lo and the Flood light fit some newer CIH combines. Replaces Case IH® Part Numbers: 87106352, 87106354. Replaces John Deere® Part Numbers: RE260102, RE173600.

JDD84 60° is a 3" LED light for replacing the smaller grill light on some JD "R" series tractors and sprayers. (For headlights assemblies with 3 lights on each side) If you are replacing factory HID lights, you will need adapter cable LL0591 - Adapter 9005 male to H11/ 880 female. JD part # AL209455

JDD84-3 is a 3" LED light with 3 mounting "arms" for replacing the smaller grill light on some JD "R" series tractors and some sprayers. (For headlights assemblies with 3 or 4 lights on each side) This is the 1st light to the right of the center grill (looking forward) Only 1 is used.

LED-415 is a 3" LED light with 3 mounting "arms" for replacing the smaller grill light on some JD "R" series tractors and some sprayers. (For headlights assemblies with 3 or 4 lights on each side) This is the 1st light to the right of the center grill (looking forward) Only 1 is used.

This is the large high beam light in the grill (the center light of the 3 lights on each side) on the newer models of JD "R" series tractors. Includes rubber grommet.

This is the large light in the grill (the center light of the 3 lights on each side) on the newer models of JD "R" series tractors.

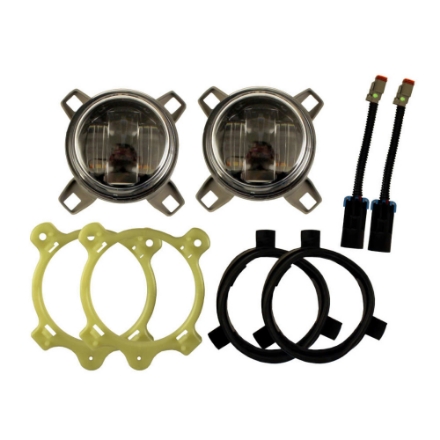

Upgrade your equipment from stock bulbs! These low beam lights are designed for easy installation, plus feature a heavy-duty housing & UV-resistant lens. Includes: (2) Low Beam Lamps, (2) Adapter Brackets, (2) Rubber Boots & (2) Jumper Harnesses. Replaces JD part# RE288372, RE288373, RE563608, RE563609.

2 x LED-2200 Amber w/ built in resistor, replaces OEM Part Numbers: RE217551, AT151873, & AT326622. Direct fit, Plug & Play.

Set of 2 amber flashers (right and left) for some JD tractors, 7000/8000/9000 series.

LED-7501 is a light that matches the OEM lights on the JD Rx tractors. 5500 lumens each. Available in 40° and 60° beam type. Replaces OEM# RE593795, RE593796, RE593798

LED-7821 Hi-Lo is a light that matches the OEM lights on some JD R tractors. Replaces OEM# RE593798

LED-7604 - 80°, 60°, 40° or 20° beam. This light is designed for use on the JD "R" series tractors, newer combines, and many others. 4800 effective lumen!

LED-2207 Amber clearance light for JD
