The kit always includes 2 x LED-8610 Hi-Lo and 2 x LED-8608 flood for front grill lights, but the cab and the fender lights change depending on the kit. Add cab lights and center grill light if needed. Note that the headlights use a standard H4 connector that does not match the OEM connector - we include the H4 connectors for the tractor harness for you to install on the tractor wires. Please read the description for more info.
JD 9x20 / 9x30 series LED light upgrade. Choose from LED-765, a 4800 lumen light, or the LED-6075, a 6000 lumen light. The base kit includes 2 headlights and 8 work lights. You can de-select 2 rear fender lights if needed (if you have HID lights and want to keep them). Add the grill flood lights and spotlight if needed.
JD 9x20 / 9x30 series LED light upgrade. 4 hood lights, 4 cab lights, and 4 rear fender lights included. 12 lights total. The Thomas HP-5 is a 5000 lumen light. Note: If you are replacing the factory HID lights on the fender, you will need longer adapter cables (LL0595)
JD 9xxx R series LED light upgrade. Lights used are the LED-7604/LED-7605 (4800lm) or LED-6075 (6000lm). Choose to replace 2 or 4 fender lights (2 if you have OEM HID Xenon lights, and want to keep them). Add the headlights if needed. Base kit with 4 fender lights equals up to 64800 effective lumens if LED-6075 is used.
JD 9xxx R series LED light upgrade. Lights used are the EHP-4 (4300lm) and HP-5 (5000lm). Choose to replace 2 or 4 fender lights (2 if you have OEM HID Xenon lights, and want to keep them). Add the headlights if needed. Base kit with 4 fender lights equals 55800 effective lumens.
This is for replacing the headlight units in the grill fixtures on the 9xxxR series tractor. It is only for the grill lights and is meant to help you select the correct replacement lights, as there are many to choose from.
LED-760 is a 4x6 style LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5200-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-660.
LED-765 is a 4x6 style Oval LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5000-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-665.
30 watt PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. Available beam types are 60° flood, 40° beam, Hi-Lo beam, and Spot beam.
High power 40 watt PAR-36 size replacement LED light for the old style sealed beam halogen light. 4 x 10 watt LED chips. This light will only fit in normal full size "HOBBS" housings with rubber grommets due to large cooling fins. It will not fit the "GUIDE" brand housings with the "rolled lip". Also it will NOT fit in the new plastic housings used on some later model JD's. This light has a temperature sensor that will limit the power of the light if the temperature gets too high. Max effective lumen 2800 - minimum effective lumen 2200.
HP-4 Oval, 20° Spot light. If used on the hanging cab lights on an "R"/20/30 series JD, please order the "R" series bracket. Also needed for the 60/70/S series combine cab lights. For Challenger tractors, the side mount bracket might be needed. Find those and adapter cables on the bottom of the page.
HP-4 Oval, 40° Beam light, If used on the hanging cab lights on an "R"/20/30 series JD, please order the "R" series bracket. Also needed for the 60/70/S series combine cab lights. For Challenger tractors, the side mount bracket might be needed. Find those and adapter cables on the bottom of the page.
HP-4 Oval, 60° Flood light, If used on the hanging cab lights on a "R"/20/30 series JD, please order the "R" series bracket. Also needed for the 60/70/S series combine cab lights. For Challenger tractors, the side mount bracket might be needed. Find those and adapter cables on the bottom of the page.
LED-6075 Flood 20° beam. This is a light similar to the Thomas HP-5 light, but 1000 lumens brighter at 6000 effective lm. Includes a pigtail wire for power.
LED-6075 Flood 40° beam. This is a light similar to the Thomas HP-5 light, but 1000 lumens brighter at 6000 effective lm. Includes a pigtail wire for power.
LED-6075 Flood 60° beam. This is a light similar to the Thomas HP-5 light, but 1000 lumens brighter at 6000 effective lm. Includes a pigtail wire for power.
LED-6075 Flood 80° beam. This is a light similar to the Thomas HP-5 light, but 1000 lumens brighter at 6000 effective lm. Includes a pigtail wire for power.
Thomas LED "JD Bracket". Needed for installing the Thomas HP-4 and HP-5 on some positions on JD tractors and combines - used for the "hanging" cab lights, eg. front cab lights on combines and "R" series Tractors.

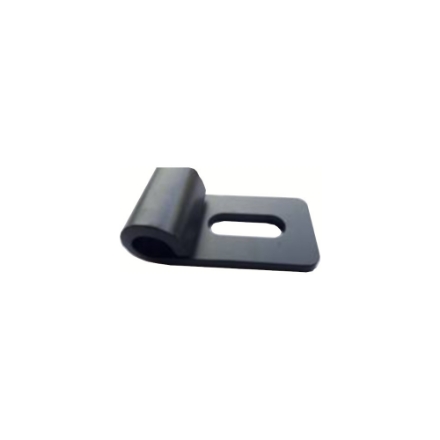

An add on bracket (2 in a set - right and left) for the HP-4 & HP5 oval LED light - this bracket lets you use the light on Cat and other tractors, that use a side mount light.
LED-392 is used for the 20 and 30 series JD tractors + more. Replaces John Deere Part Numbers: RE271574, RE181282, RE180613, RE271573. Replaces Buhler/Versatile Part Numbers: 86034865, 86034864, 86038024.

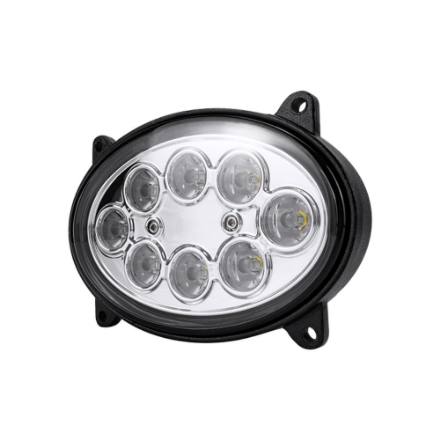

LED-4060 is used for the 20 and 30 series JD tractors + more. Replaces John Deere Part Numbers: RE271574, RE181282, RE180613, RE271573. Replaces Buhler/Versatile Part Numbers: 86034865, 86034864, 86038024.

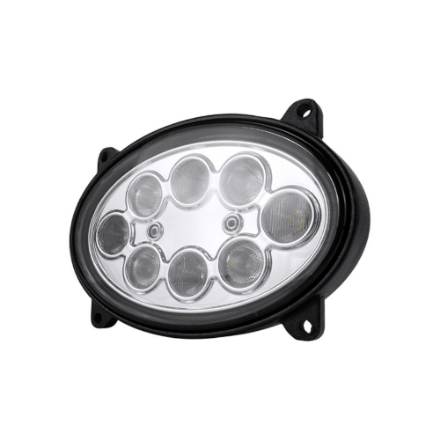

LED-4060 Flood is used for the 20 and 30 series JD tractors and other machines. Replaces John Deere Part Numbers: RE271574, RE181282, RE180613, RE271573. Replaces Buhler/Versatile Part Numbers: 86034865, 86034864, 86038024.
An oval LED-6060 Hi-Lo LED light for CaseIH combines and some JD tractors. Replaces Case IH® Part Numbers: 87106352, 87106354. Replaces John Deere® Part Numbers: RE260102, RE173600. The light is made especially for use on the CIH combines, but can be used on some JD tractors. Effective Output: Low beam 2700 lumen, high beam 5400 Lumen
An oval LED-652 Hi-Lo LED light for some JD tractors and CaseIH combines. Fits in the hood on many newer JD tractors and some newer CIH combines. Replaces Case IH® Part Numbers: 87106352, 87106354. Replaces John Deere® Part Numbers: RE260102, RE173600.
JDD84 60° is a 3" LED light for replacing the smaller grill light on some JD "R" series tractors and sprayers. (For headlights assemblies with 3 lights on each side) If you are replacing factory HID lights, you will need adapter cable LL0591 - Adapter 9005 male to H11/ 880 female. JD part # AL209455
JDD84-3 is a 3" LED light with 3 mounting "arms" for replacing the smaller grill light on some JD "R" series tractors. (For headlights assemblies with 3 or 4 lights on each side) This is the 1st light to the right of the center grill (looking forward) Only 1 is used.
This is the large high beam light in the grill (the center light of the 3 lights on each side) on the newer models of JD "R" series tractors. Includes rubber grommet.
LED-486, Round stud mounted warning light for mounting onto fenders, and many other places where you need an amber warning light. 8.5 watt. Note - This light does not have a built-in flasher, they would require a flasher relay in order to flash, or installed in place of an existing flasher. Also - most older flasher relays will not work with this low-wattage turn signal, you will need flasher relay SKU LL0466 for the turn signal to work.
LED-760 is a 4x6 style LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5200-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-660.
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 40° beam. Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 60° Flood Beam. Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700 Hi-Lo Beam, 800 low beam. Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.
Cab lights for the 9000 series JD combine using a rectangular light on the cab - fits any vehicle using the JD9000 series cab. Use the combo beam for most distance, we suggest 2 combo beam and 4 flood beam for the combines.
