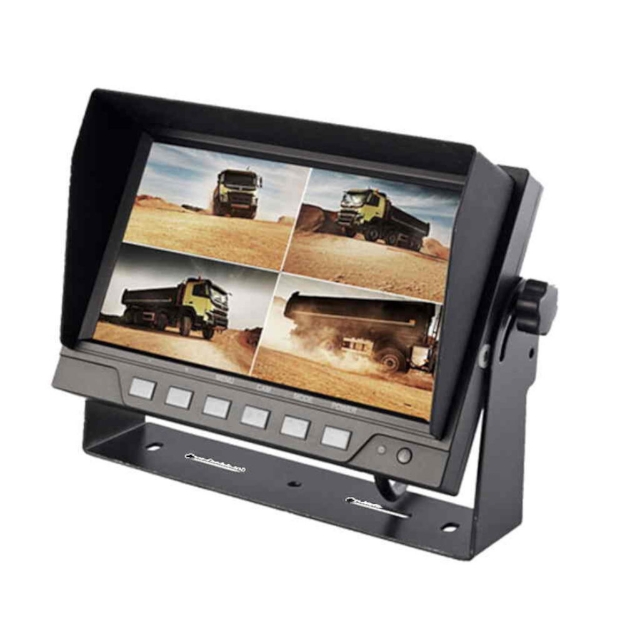

Larsen Monitor VPM7003 Quad

7 Inch LCD Monitor, up to 4 wired cameras can be connected, and viewed on this QUAD view monitor at the same time. Accessories included for 7" models : 1- U-support bracket, 1-Center mount bracket, 1- Sun shield, 4- Angle adjustment screws, 1- Remote control, 1- User's Manual, 2- Power cable. Please add Cameras and Cables below.
Availability: In stock
SKU: LL1002
$120.00
Notes:
  • All prices USD. If importing into Canada there will be brokerage cost collected by UPS. Check the "Canada/World" link on the homepage for more info. We are out of most of the LED-660 model of lights, any kits including those lights can not be ordered.
Full Description

Larsen Monitor VPM7003 Quad



TFT LCD Monitor with wide angle view and high resolution.

Single, Dual, Triple or Quad image mode

4 video inputs, 4 audio inputs.

Multiple languages available for user operation.

Image adjustable for Horizontal, Vertical, Mirror and Normal view.


LCD size: 7"
TV System: PAL / NTSC
Resolution: 800 x 3 (RGB) x 480
Contrast: 500:1
Brightness: 400 cd/m²
Viewing angle: U: 50 / D: 60, R/L: 70
Operating temperature: -20~+70ºC, RH 90%
Storage temperature: -30~+80ºC, RH 90%
Power inputs: DC 10~32 V
Power consumption: Max. 25W
Power for cameras: Max. 4 x 300mA, 12V
Tirgger signal: 4 tirgger wires
Anti-vibration: 2.8 g (Center mount bracket) / 7 g (U-support bracket)

Accessories included for 7" models :

1- U-support bracket, 1-Center mount bracket, 1- Sun shield,  4- Angle adjustment screws, 1- Remote control, 1- User's Manual, 2- Power cable.



Product Name:

Model No.: VPM7003 Quad

Operates from 10~32, Support 12V or 24V automobile battery.
Auto switch to back-up, left or right camera view.
Built in speaker.
Full function remote control.



Larsen Monitor VPM7003 Quad - QrCodeImage
