LED-660 Series LED lights (to be discontinued - new model LED-760)

1 review(s) | Add your review

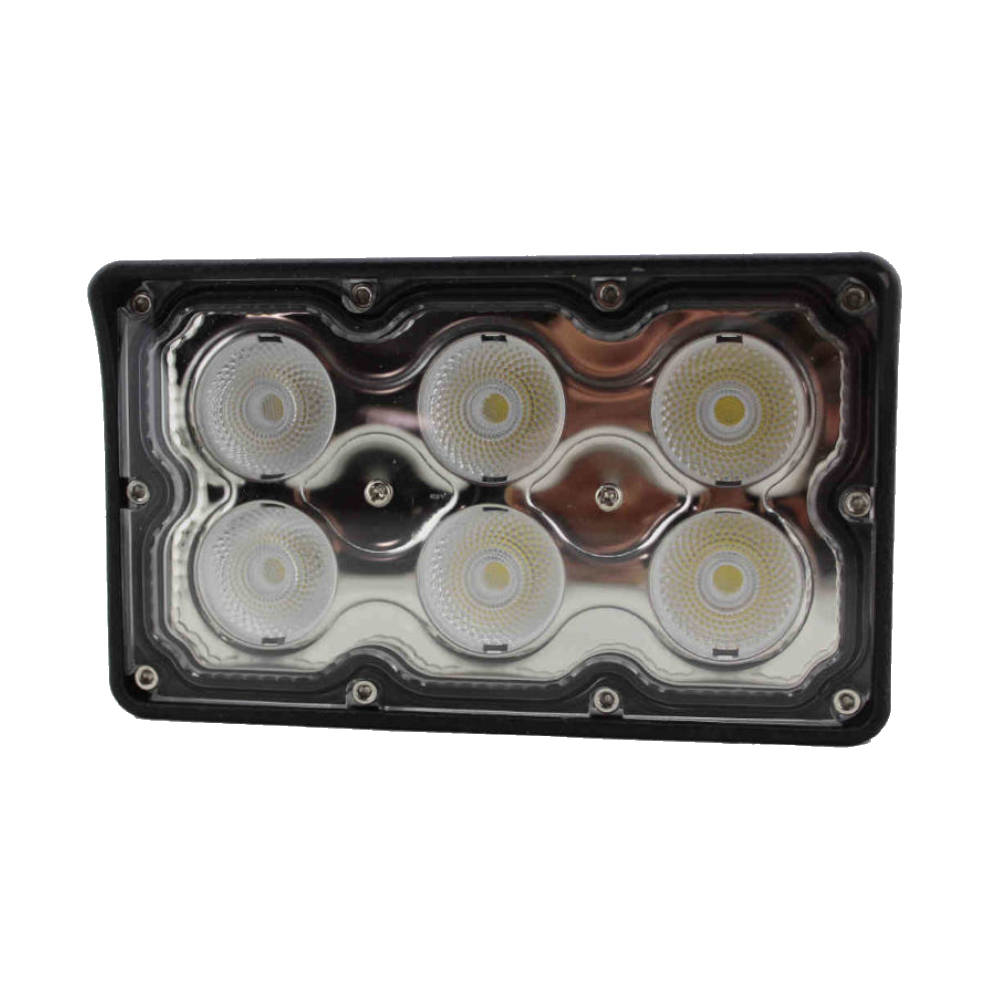

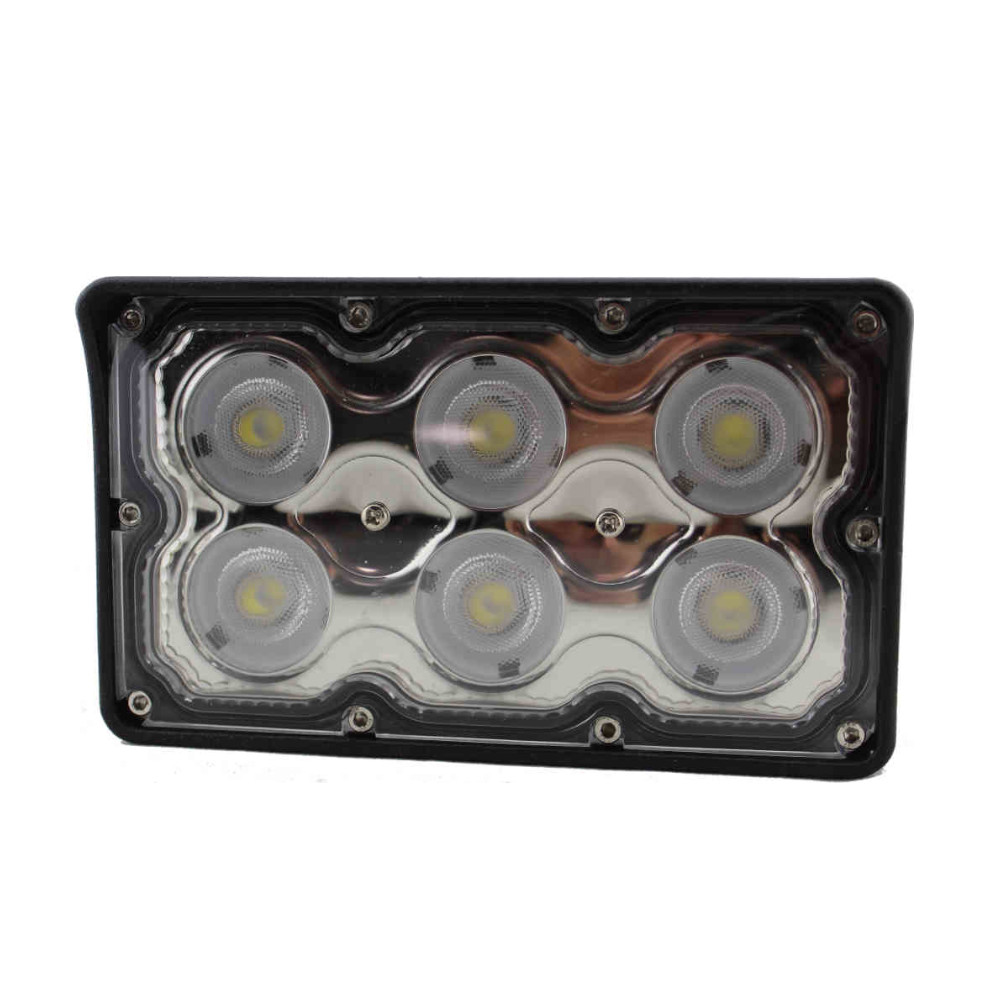

LED-660 is a 4x6 style LED work light. 6 CREE LED's at 10 watt each, 4100 lumens, 5000k, and only 3.6 amp use. Select the light beam type, then select the bracket you need for your application. Comes with a 7" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom of this page. Note: This light will be replaced by the LED-760.

SKU: LED-660 series

Beam style: *

LED-660 60° beam

Bracket style: *

"Solid" Mount Bracket (Fits into 1 3/8" bracket / U clamp)

$60.00

Qty:

+ -

Product Files

Install Instructions

Bracket install on LED-660 and 665

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

LED-660 series LED lights

The LED-660 rectangular series of lights are all 60-watt CREE LED lights. 4100 lumen at 5000k. This is a very powerful light that will work for many applications.

The light can be ordered as a side mount or a bottom mount light, 40, 60 or 80-degree beam. Fits many tractors and combines that use a rectangular 4x6 style light.

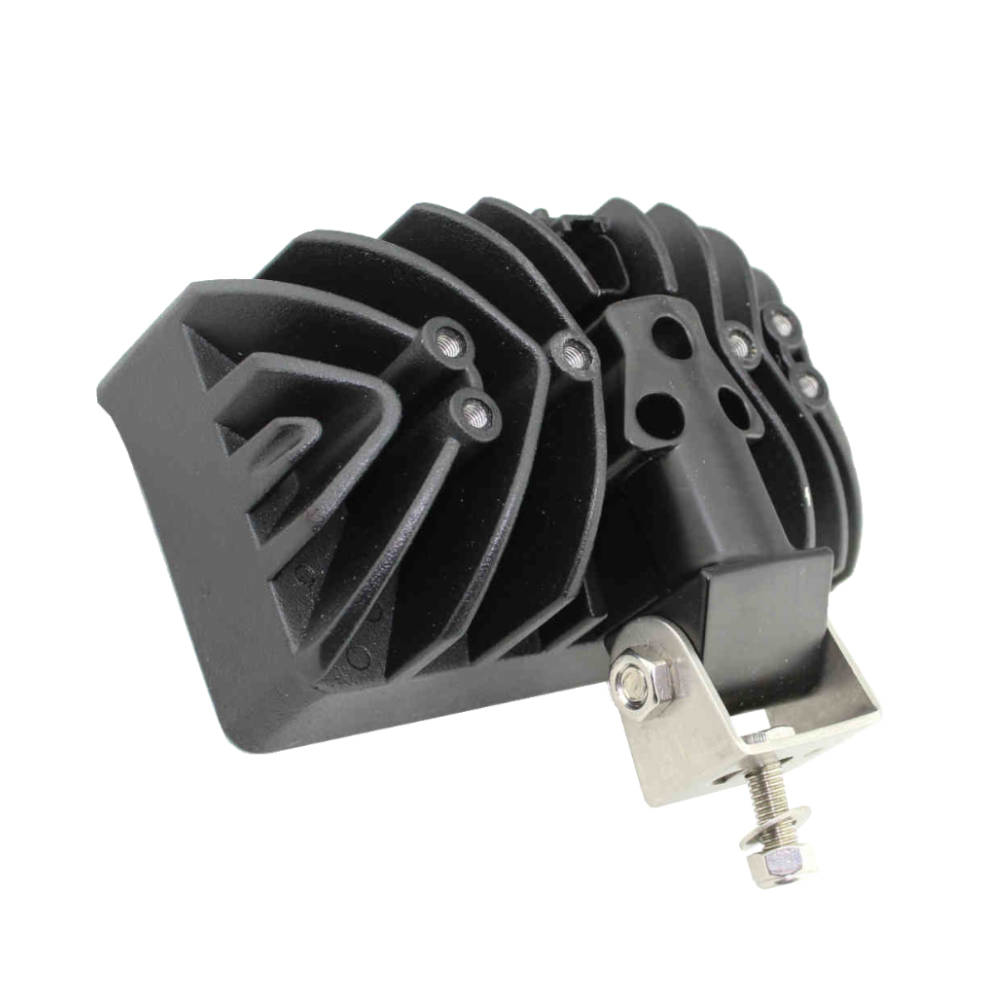

The "Solid mount" is a 1 3/8" wide mount that will fit into OEM "U" clamps on many tractors and combines.

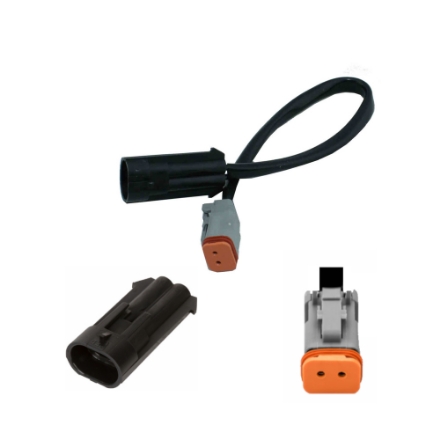

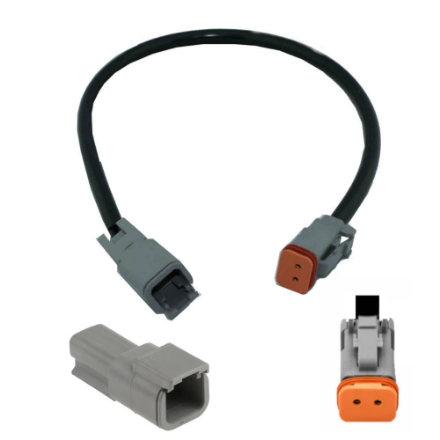

Integrated Deutsch connector, comes with an adaptor cable for 880 series and 9005 bulb connectors. Adaptor cables for 2 pin weather pack and metripack 150 can be ordered on the bottom of the page if needed, or click on this link for more choices adapter cables

Spec's

Watt : 60 watt - 6 x 10 watt CREE Xlamp XM-L2 LED's
Size : 5 15/16 x 3 1/2 x 3 1/4 inch (base light without bracket)
Power use: 43 watt
Lumen: 4800 raw, 4100 Effective
Beam: 80°, 60°, 40° or 25°
Volt: 10-30 volt
IP: 68
Kelvin color: 5000-5500k
Lifetime: >30000 hours
Warranty : 3 years.

In the case of paint in the mounting holes, a 5mm 0.8 tap can be used to clean the holes.

LED 660, LED-660, LED660, 660, 4x6, LL0406, LL0469, LL0404, LL0405, LL0467

LED-660 series LED lights

The LED-660 rectangular series of lights are all 60-watt CREE LED lights. 4100 lumen at 5000k. This is a very powerful light that will work for many applications.

The light can be ordered as a side mount or a bottom mount light, 40, 60 or 80-degree beam. Fits many tractors and combines that use a rectangular 4x6 style light.

The "Solid mount" is a 1 3/8" wide mount that will fit into OEM "U" clamps on many tractors and combines.

Spec's

Watt : 60 watt - 6 x 10 watt CREE Xlamp XM-L2 LED's
Size : 5 15/16 x 3 1/2 x 3 1/4 inch (base light without bracket)
Power use: 43 watt
Lumen: 4800 raw, 4100 Effective
Beam: 80°, 60°, 40° or 25°
Volt: 10-30 volt
IP: 68
Kelvin color: 5000-5500k
Lifetime: >30000 hours
Warranty : 3 years.

In the case of paint in the mounting holes, a 5mm 0.8 tap can be used to clean the holes.

LED 660, LED-660, LED660, 660, 4x6, LL0406, LL0469, LL0404, LL0405, LL0467

Use On Below Models (Click to expand)

Case

Backhoe: 570MXT Cab Front & Rear 570NEP Cab Front & Rear 580K 580M Cab Front & Rear 580SK 580SM Cab Front & Rear 590 590SM Cab Front & Rear

Crawler/Dozer: 1150E Cab Front & Rear, Fender Rear 1155E Cab Front & Rear, Fender Rear 650K Cab Front & Rear 750K Cab Front & Rear 850E Cab Front & Rear, Fender Rear 850K Cab Front & Rear 855E Cab Front & Rear, Fender Rear

Dozer: 1150H 650G 650H 750H 850H

Tractor: 470 Fender Rear

Wheel Loader: 521D Cab Front & Rear 621 Cab Front & Rear 621B Cab Front & Rear 621C Cab Front & Rear 621D Cab Front & Rear 721 Cab Front & Rear 721B Cab Front & Rear 721C Cab Front & Rear 721D Cab Front & Rear 821 Cab Front & Rear 821B Cab Front & Rear 821C Cab Front & Rear 921 Cab Front & Rear 921B Cab Front & Rear 921C Cab Front & Rear

Case IH

Combine: 5130 Stubble, auger, rear light 5140 Stubble, auger, rear light

Sprayer: 3020 Titan Cab Front & Rear 3030 Titan Cab Front & Rear 3040 Titan Cab Front & Rear 3150 3185 3230 Patriot Boom 3240 Patriot Boom 3330 Patriot Boom 3340 Patriot Boom 3520 Titan Cab Front & Rear 3530 Titan Cab Front & Rear 3540 Titan Cab Front & Rear 4020 Titan Cab Front & Rear 4030 Titan Cab Front & Rear 4040 Titan Cab Front & Rear 4420 Patriot Cab Front 4430 Patriot Boom 4440 Patriot Boom 4520 Titan Cab Front & Rear 4530 Titan Cab Front & Rear 4540 Titan Cab Front & Rear SPX3320 Patriot Boom SPX4410 Cab Front & Rear SPX4410 Patriot Boom

Spreader: FLX3010 Cab Front & Rear FLX3510 Cab Front & Rear FLX4010 Cab Front & Rear FLX4510 Cab Front & Rear

Tractor: 100 Maxxum Rear Post 110 Maxxum Rear Post 115 Maxxum Rear Post 115 Puma Rear Post 120 Maxxum Rear Post 125 Maxxum Rear Post 125 Puma Rear Post 130 Maxxum Rear Post 130 Puma Rear Post 140 Maxxum Rear Post 140 Puma Rear Post 145 Puma Rear Post 150 Puma Rear Post 150 Puma CVT Rear Post 155 Puma Rear Post 160 Puma Rear Post 165 Puma Rear Post 165 Puma CVT Rear Post 170 Puma Rear Post 180 Magnum Prior to S/N ZERH08099, Mid-Body 180 Puma Rear Post 185 Puma Rear Post 185 Puma CVT Rear Post 1854 Puma Rear Post 1896 190 Magnum Mid-Body 190 Magnum Prior to S/N ZERH08099, Mid-Body 195 Puma Rear Post 200 Magnum Prior to S/N ZERH08099, Mid-Body 200 Puma Rear Post 200 Puma CVT Rear Post 2094 2096 210 Magnum Mid-Body 210 Puma Rear Post 2104 Puma Rear Post 215 Magnum Mid-Body 215 Puma Rear Post 220 Magnum Prior to S/N ZERH08099, Mid-Body 220 Puma Rear Post 220 Puma CVT Rear Post 225 Magnum Mid-Body 225 Puma Rear Post 2294 230 Puma Rear Post 2304 Puma Rear Post 235 Magnum Mid-Body 2394 240 Magnum Prior to S/N ZERH08099, Mid-Body 240 Puma CVT Rear Post 245 Magnum Mid-Body 250 Magnum Prior to S/N ZERH08099, Mid-Body 255 Magnum Mid-Body 260 Magnum Mid-Body 275 Magnum Mid-Body 280 Magnum Prior to S/N ZERH08099, Mid-Body 290 Magnum Mid-Body 305 Magnum Mid-Body 310 Magnum Prior to S/N ZERH08099, Mid-Body 315 Magnum Mid-Body 3294 335 Magnum Mid-Body 3394 340 Magnum Prior to S/N ZERH08099, Mid-Body 3594 370 Magnum Mid-Body 380 Magnum Prior to S/N ZERH08099, Mid-Body 500 Quadtrac Cab Front & Rear, Fender Rear 5120 Cab Front & Rear, Fender Rear 5130 Cab Front & Rear, Fender Rear 5140 Cab Front & Rear, Fender Rear 5220 Cab Front & Rear, Fender Rear 5230 Cab Front & Rear, Fender Rear 5240 Cab Front & Rear, Fender Rear 5250 Cab Front & Rear, Fender Rear 540 Quadtrac Cab Front & Rear, Fender Rear 550 Quadtrac Cab Front & Rear, Fender Rear 580 Quadtrac Cab Front & Rear, Fender Rear 600 Quadtrac Cab Front & Rear, Fender Rear 620 Quadtrac Cab Front & Rear, Fender Rear 7110 Cab Front & Rear, Fender Rear 7110 Lower Mid-Body 7120 Cab Front & Rear, Fender Rear 7120 Lower Mid-Body 7130 Lower Mid-Body 7130 Cab Front & Rear, Fender Rear 7140 Lower Mid-Body 7140 Cab Front & Rear, Fender Rear 7150 Cab Front & Rear, Fender Rear 7150 Lower Mid-Body 7210 Lower Mid-Body 7210 Cab Front & Rear, Fender Rear 7220 Lower Mid-Body 7220 Cab Front & Rear, Fender Rear 7230 Cab Front & Rear, Fender Rear 7230 Lower Mid-Body 7240 Lower Mid-Body 7240 Cab Front & Rear, Fender Rear 7250 Cab Front & Rear, Fender Rear 7250 Lower Mid-Body 8910 Lower Mid-Body 8910 Cab Front & Rear, Fender Rear 8920 Cab Front & Rear, Fender Rear 8920 Lower Mid-Body 8930 Lower Mid-Body 8930 Cab Front & Rear, Fender Rear 8940 Cab Front & Rear, Fender Rear 8940 Lower Mid-Body 8950 Lower Mid-Body 8950 Cab Front & Rear, Fender Rear 9110 9130 9150 9170 Eff. S/N 17900650 9180 Eff. S/N 17900650 9210 Prior to P.I.N. JCB0028400 9230 Prior to P.I.N. JCB0028400 9240 Prior to P.I.N. JCB0028400 9260 Prior to P.I.N. JCB0028400 9270 Prior to P.I.N. JCB0028400 9280 Prior to P.I.N. JCB0028400 9310 Prior to P.I.N. JCB0028400 9330 Prior to P.I.N. JCB0028400 9350 Prior to P.I.N. JCB0028400 9370 Prior to P.I.N. JCB0028400 9380 Prior to P.I.N. JCB0028400 9390 Prior to P.I.N. JCB0028400 CX100 Cab Front & Rear, Fender Rear CX50 Cab Front & Rear, Fender Rear CX60 Cab Front & Rear, Fender Rear CX70 Cab Front & Rear, Fender Rear CX80 Cab Front & Rear, Fender Rear CX90 Cab Front & Rear, Fender Rear JX100U side mount or bottom mount JX1060C side mount or bottom mount JX1070C side mount or bottom mount JX1070N side mount or bottom mount JX1070U side mount or bottom mount JX1075C side mount or bottom mount JX1075N side mount or bottom mount JX1075V side mount or bottom mount JX1080U side mount or bottom mount JX1085C side mount or bottom mount JX1090U side mount or bottom mount JX1095C side mount or bottom mount JX1095N side mount or bottom mount JX1100U side mount or bottom mount JX55 side mount or bottom mount JX60 side mount or bottom mount JX65 side mount or bottom mount JX70 side mount or bottom mount JX70U side mount or bottom mount JX75 side mount or bottom mount JX80 side mount or bottom mount JX80U side mount or bottom mount JX85 side mount or bottom mount JX90 side mount or bottom mount JX90U side mount or bottom mount JX95 side mount or bottom mount JXU105 side mount or bottom mount JXU115 side mount or bottom mount JXU75 side mount or bottom mount JXU85 side mount or bottom mount JXU95 side mount or bottom mount Magnum 180 Magnum 190 Magnum 200 Magnum 210 Magnum 215 Magnum 220 Magnum 225 Magnum 235 Magnum 240 Magnum 245 Magnum 250 Magnum 260 Magnum 275 Magnum 280 Magnum 290 Magnum 305 Magnum 310 Magnum 315 Magnum 335 Magnum 340 Magnum 370 Magnum 380 MX100 Cab Front MX100C Cab Front MX110 Cab Front MX120 Cab Front MX135 Cab Front MX150 Cab Front MX170 Cab Front MX180 Mid-Body MX200 Mid-Body MX210 Mid-Body MX215 Mid-Body MX220 Mid-Body MX230 Mid-Body MX240 Mid-Body MX245 Mid-Body MX255 Mid-Body MX270 Mid-Body MX275 Mid-Body MX285 Mid-Body MX305 Mid-Body MX80C Cab Front MX90C Cab Front MXM120 Grabrail MXM130 Grabrail MXM140 Grabrail MXM155 Grabrail MXM190 Grabrail MXU100 MXU100X MXU110 Rear Post MXU110 MXU110X MXU115 Rear Post MXU115 MXU115X MXU125 MXU125X MXU130 MXU130 Rear Post MXU130X MXU135 STX275 Cab Front & Rear, Fender Rear STX280 Cab Front & Rear, Fender Rear STX325 Cab Front & Rear, Fender Rear STX330 Cab Front & Rear, Fender Rear STX375 Cab Front & Rear, Fender Rear STX380 Cab Front & Rear, Fender Rear STX425 Cab Front & Rear, Fender Rear STX430 Cab Front & Rear, Fender Rear STX440 Cab Front & Rear, Fender Rear STX450 Cab Front & Rear, Fender Rear STX480 Cab Front & Rear, Fender Rear STX500 Cab Front & Rear, Fender Rear STX530 Cab Front & Rear, Fender Rear

Ford

Tractor: 9030E Cab Front & Rear 9030V Cab Front & Rear

International

Tractor: 5488

International

Tractor: 3088 3288 3488 3688 5088 5288

John Deere

Excavator: 230LCR 230LCRD 330LCR

Forestry Equipment: 330B 335 335C 430B 435 435C 437C 530B 535

Sprayer: 4700 4710

Tractor: 5076EF Narrow Models 5415 5415H 5425N 5615 5715 5715HC 5725N 6105D Interim Tier 4 6105E Final Tier 4 6110 6110D Prior to S/N 050000, Tier 0 6110E 6110L 6115D Prior to S/N 050000, Tier 3 6120E Final Tier 4 6125D Prior to S/N 050000, Tier 0 6125E 6130D Prior to S/N 050000, Tier 3 6140D Prior to S/N 050000 6200 6200L 6210 6210L 6220L 6300 6300L 6310 6310L 6310S 6320L 6400 6400L 6405 6410 6410L 6410S 6420L 6500 6500L 6510L 6510S 6520L 6600 6605 7200 7210 7220 7320 7400 7405 7410 7420 7505 7510 7520 7600 7610 7700 7710 7800 7810 8100 8100T 8110 8110T 8200 8210 8210T 8300 8300T 8310 8310T 8400 8400T 8410 8410T 9100 9200 9300 9300T 9400 9400T

Wheel Loader: 444H 444J 544H 544J 624H 624J 644H 644J 724J 744H 744J 824J TC44H TC54H TC62H

Komatsu

Excavator: PC130-8 PC138US-8 PC160LC-7-E0 PC160LC-8 PC180LC-7-E0 PC180NLC-7-E0 PC190LC-8 PC190NLC-8 PC210-10 PC228USLC-8 PC240-8K PC240LC-10 PC290-8K PC290LC-10 PC350LC-8 PC360LC-10 PC450LC-7E0 PC450LC-8 PC490-10 PC700LC-8E0 PC800-8E0 PC800LC-8E0

Massey Ferguson

Tractor: 6235 6245 6255 6265 6270 6280 6290

McCormick

Tractor: CX105 Cab Front & Rear, Fender Rear CX50 Cab Front & Rear, Fender Rear CX60 Cab Front & Rear, Fender Rear CX75 Cab Front & Rear, Fender Rear CX85 Cab Front & Rear, Fender Rear CX95 Cab Front & Rear, Fender Rear MC105 Cab Front & Rear, Fender Rear MC115 Cab Front & Rear, Fender Rear MC95 Cab Front & Rear, Fender Rear MTX110 Cab Front & Rear, Fender Rear MTX120 Cab Front & Rear, Fender Rear MTX125 Cab Front & Rear, Fender Rear MTX135 Cab Front & Rear, Fender Rear MTX140 Cab Front & Rear, Fender Rear MTX150 Cab Front & Rear, Fender Rear MTX155 Cab Front & Rear, Fender Rear MTX165 Cab Front & Rear, Fender Rear MTX175 Cab Front & Rear, Fender Rear MTX185 Cab Front & Rear, Fender Rear MTX200 Cab Front & Rear, Fender Rear

New Holland

Tractor: 8670 Lower Mid-Body 8670 Cab Front & Rear, Fender Rear 8670A Cab Front & Rear, Fender Rear 8670A Lower Mid-Body 8770 Cab Front & Rear, Fender Rear 8770 Lower Mid-Body 8770A Cab Front & Rear, Fender Rear 8770A Lower Mid-Body 8870 Lower Mid-Body 8870 Cab Front & Rear, Fender Rear 8870A Cab Front & Rear, Fender Rear 8870A Lower Mid-Body 8970 Lower Mid-Body 8970 Cab Front & Rear, Fender Rear 8970A Lower Mid-Body 8970A Cab Front & Rear, Fender Rear 9280 Cab Front 9282 Cab Front 9384 Cab Front 9480 Cab Front 9482 Cab Front 9484 Cab Front 9680 Cab Front 9682 Cab Front 9684 Cab Front 9880 Cab Front 9882 Cab Front 9884 Cab Front T8010 Mid-Body T8020 Mid-Body T8030 Mid-Body T8040 Mid-Body T8050 Mid-Body T9.390 Cab Front & Rear, Fender Rear T9.435 Cab Front & Rear, Fender Rear T9.450 Cab Front & Rear, Fender Rear T9.480 Cab Front & Rear, Fender Rear T9.505 Cab Front & Rear, Fender Rear T9.530 Cab Front & Rear, Fender Rear T9.560 Cab Front & Rear, Fender Rear T9.565 Cab Front & Rear, Fender Rear T9.600 Cab Front & Rear, Fender Rear T9.615 Cab Front & Rear, Fender Rear T9.645 Cab Front & Rear, Fender Rear T9.670 Cab Front & Rear, Fender Rear T9.700 Cab Front & Rear, Fender Rear T9010 Cab Front & Rear, Fender Rear T9020 Cab Front & Rear, Fender Rear T9030 Cab Front & Rear, Fender Rear T9040 Cab Front & Rear, Fender Rear T9050 Cab Front & Rear, Fender Rear T9060 Cab Front & Rear, Fender Rear TG210 Mid-Body TG215 Mid-Body TG230 Mid-Body TG245 Mid-Body TG255 Mid-Body TG275 Mid-Body TG285 Mid-Body TG305 Mid-Body TJ275 Cab Front & Rear, Fender Rear TJ280 Cab Front & Rear, Fender Rear TJ325 Cab Front & Rear, Fender Rear TJ330 Cab Front & Rear, Fender Rear TJ375 Cab Front & Rear, Fender Rear TJ380 Cab Front & Rear, Fender Rear TJ425 Cab Front & Rear, Fender Rear TJ430 Cab Front & Rear, Fender Rear TJ450 Cab Front & Rear, Fender Rear TJ480 Cab Front & Rear, Fender Rear TJ500 Cab Front & Rear, Fender Rear TJ530 Cab Front & Rear, Fender Rear TM115 Lower Mid-Body TM120 Lower Mid-Body TM125 Lower Mid-Body TM130 Lower Mid-Body TM135 Lower Mid-Body TM140 Lower Mid-Body TM150 Lower Mid-Body TM155 Lower Mid-Body TM165 Lower Mid-Body TM175 Lower Mid-Body TM190 Lower Mid-Body TV140 Cab Front & Rear, Fender Rear TV145 Cab Front & Rear, Fender Rear TV6070 Cab Front & Rear, Fender Rear

Tractor Loader Backhoe: U80C

Steiger

Tractor: 1000 280 Cab Front & Rear, Fender Rear 330 Cab Front & Rear, Fender Rear 335 Cab Front & Rear, Fender Rear 350 Cab Front & Rear, Fender Rear 370 Cab Front & Rear, Fender Rear 380 Cab Front & Rear, Fender Rear 385 Cab Front & Rear, Fender Rear 420 Cab Front & Rear, Fender Rear 430 Cab Front & Rear, Fender Rear 435 Cab Front & Rear, Fender Rear 450 Cab Front & Rear, Fender Rear 480 Cab Front & Rear, Fender Rear 485 Cab Front & Rear, Fender Rear 500 Cab Front & Rear, Fender Rear 530 Cab Front & Rear, Fender Rear 535 Cab Front & Rear, Fender Rear 540 Cab Front & Rear, Fender Rear 550 Cab Front & Rear, Fender Rear 580 Cab Front & Rear, Fender Rear 600 Cab Front & Rear, Fender Rear 620 Cab Front & Rear, Fender Rear Bearcat 1000 Series Only for the 4 hole bracket type. Cougar Cougar 1000 Series Only for the 4 hole bracket type. CR-1225 CR-1280 CR1225 Cougar CR1280 Cougar KR-1225 KR-1280 KR1225 Cougar KR1280 Cougar Panther Panther 1000 Series Only for the 4 hole bracket type. Puma Wildcat Wildcat 1000 Series Only for the 4 hole bracket type.

Versatile

Tractor: 2145 Lower Mid-Body 2145 Cab Front & Rear, Fender Rear 2160 Cab Front & Rear, Fender Rear 2160 Lower Mid-Body 2180 Cab Front & Rear, Fender Rear 2180 Lower Mid-Body 2210 Lower Mid-Body 2210 Cab Front & Rear, Fender Rear 2290 2335 2375

Existing reviews

Very Nice Lights

From: Richard Niemiec Date: 7/7/2020 8:53 PM

This is my first time installing aftermarket lights on something. It was difficult navigating through a bunch of cheap junk to find Larsen lights and then this particular model that fit so well into the factory locations. These look very similar to the work lights that came factory on my New Holland 555E backhoe. I was hesitant to spend the money on them but now that they are on they seem totally worth it. They are high quality in appearance and quite heavy considering the size. There is definitely substance to them. They are very bright. I put the 60 degree ones on the front and 80 degree ones on the back per advice calling and speaking to an actual human being that actually knows what he is talking about. I got the side mount and it fit almost perfectly in the factory mounting brackets, I had to open up the "ears" about a 1/16 of an inch to fit them in. The new lights blow away the old ones, no comparison. The lights look like they belong on the machine, they fit in the factory locations, they are the same size as the factory ones, they adjust like the factory ones. I could not be happier with them. I have only had them one day and night so I cannot speak to the longevity of them.
