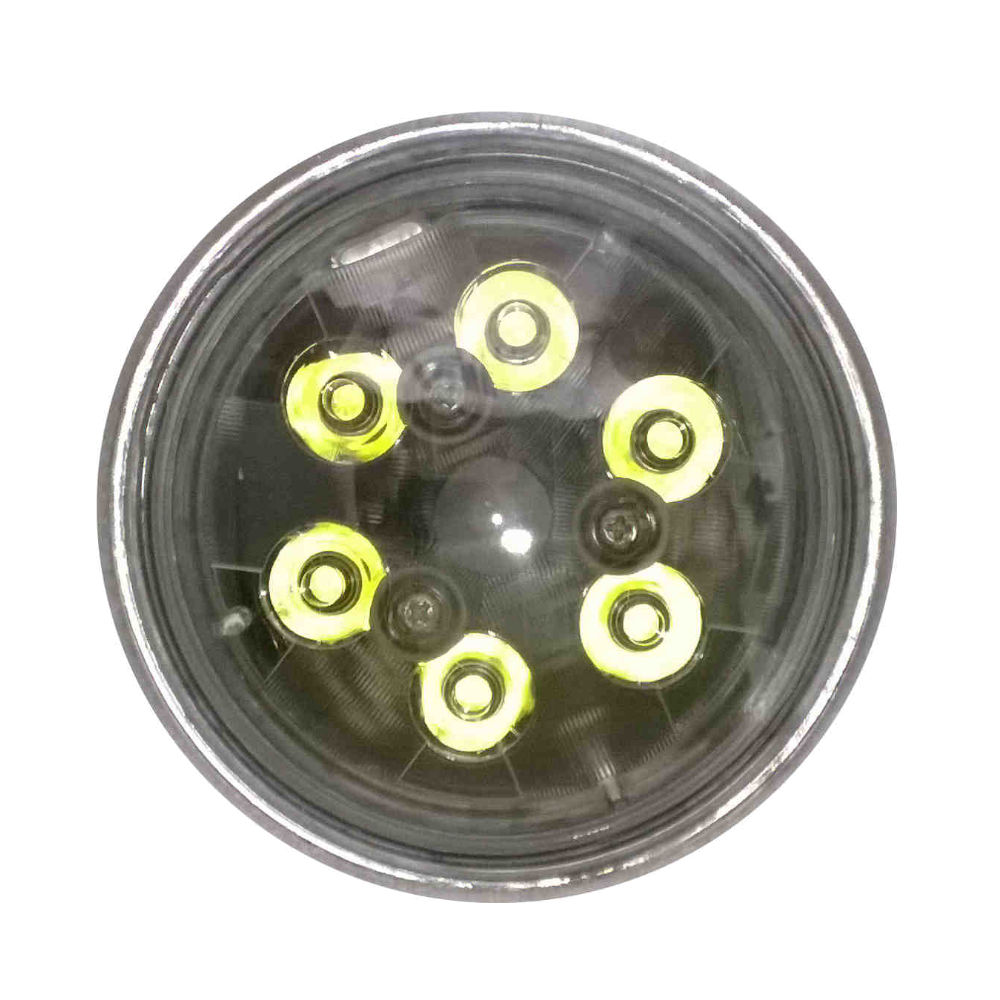

PAR-36, 4.5 LED light, Standard model.

PAR-36 size replacement LED light for the old style sealed beam halogen light. 5-watt CREE LED chips. Actual power use is around 18 watts, effective lumen around 1400, raw lumen around 2200.
SKU: Par-36
*

$27.00
+ -
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

 PAR-36 sealed beam led bulb.



Works as a replacement for the halogen sealed beam PAR-36 (4.5" bulb) used on many older tractors,

Male spades on rear for connections, female connectors included for you to install on OEM wires.

Note about the Hi-Lo model :

This is a light we made for use in farm tractors. It is designed to have 4 of the 8 led chips on as LOW beam, those 4 LED's are trapezoid beam - 4 LED's are 20° spot beam and will only be on in HIGH beam mode, together with the LOW beam trapezoid LED's. So all 8 LED chips will be on in High beam.

This seems to work really well, finally there is an option for replacing all the lights on the tractor.

Please note that the Par-36 Hi-Lo is not DOT approved.

Spec's:

Bulb: 6Pcs * 5W LED

  • Color Temperature: 5000k (White daylight)
  • 60° flood beam, trapezoid beam, Hi-Lo beam, Spot beam, Fluted (like OEM), & Red/White combo beam.
  • PC lens
  • Power: 30W rated, 18 watt used
  • Operating Voltage:9-32V DC
  • Luminous:  1400 - 1450 effective
  • Current: 1.5A @ 12V
  • Lifespan: 30,000Hours
  • Overvoltage protection
  • Back of housing has large cooling fins for optimized heat dissipation
  • Size: 5.2x4.5x2.6 inch with housing, 4.5" Dia. without housing.
  • IP67

 Par36, Par-36, Flood, trapezoid, hi-lo, fluted, red,

 PAR-36 sealed beam led bulb.



Works as a replacement for the halogen sealed beam PAR-36 (4.5" bulb) used on many older tractors,

Male spades on rear for connections, female connectors included for you to install on OEM wires.

Note about the Hi-Lo model :

This is a light we made for use in farm tractors. It is designed to have 4 of the 8 led chips on as LOW beam, those 4 LED's are trapezoid beam - 4 LED's are 20° spot beam and will only be on in HIGH beam mode, together with the LOW beam trapezoid LED's. So all 8 LED chips will be on in High beam.

This seems to work really well, finally there is an option for replacing all the lights on the tractor.

Please note that the Par-36 Hi-Lo is not DOT approved.

Spec's:

Bulb: 6Pcs * 5W LED

  • Color Temperature: 5000k (White daylight)
  • 60° flood beam, trapezoid beam, Hi-Lo beam, Spot beam, Fluted (like OEM), & Red/White combo beam.
  • PC lens
  • Power: 30W rated, 18 watt used
  • Operating Voltage:9-32V DC
  • Luminous:  1400 - 1450 effective
  • Current: 1.5A @ 12V
  • Lifespan: 30,000Hours
  • Overvoltage protection
  • Back of housing has large cooling fins for optimized heat dissipation
  • Size: 5.2x4.5x2.6 inch with housing, 4.5" Dia. without housing.
  • IP67

 Par36, Par-36, Flood, trapezoid, hi-lo, fluted, red,
