30 watt PAR-36

Be the first to review this product

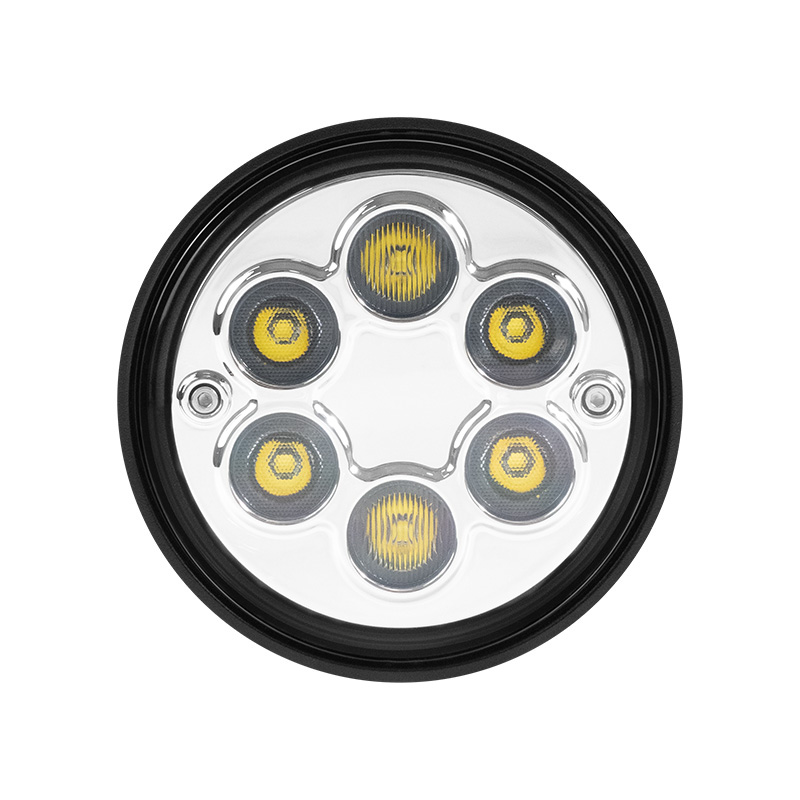

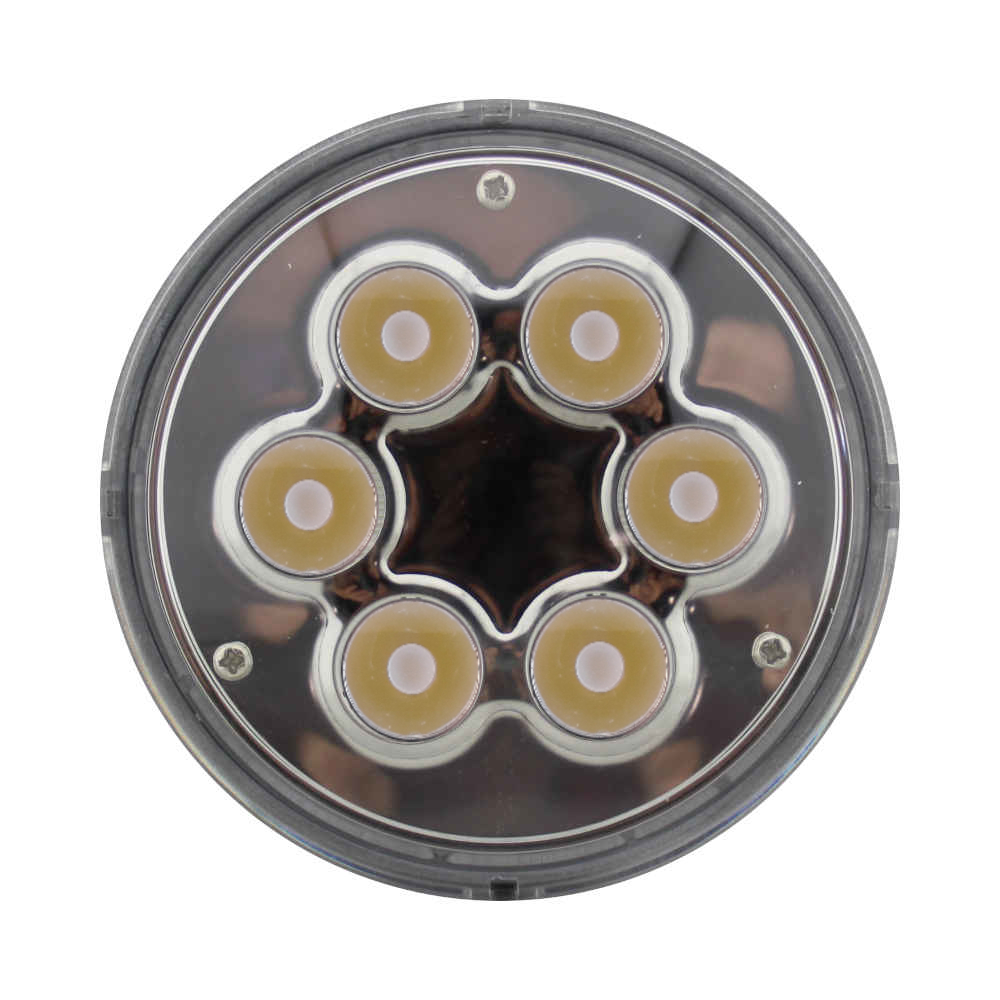

30 watt PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. Available beam types are 60° flood, 40° beam, Hi-Lo beam, and Spot beam.

SKU: HO Par-36

Select Beam Pattern : *

60° Flood
40° beam
Hi-Lo beam
15° Spot beam

$32.00

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

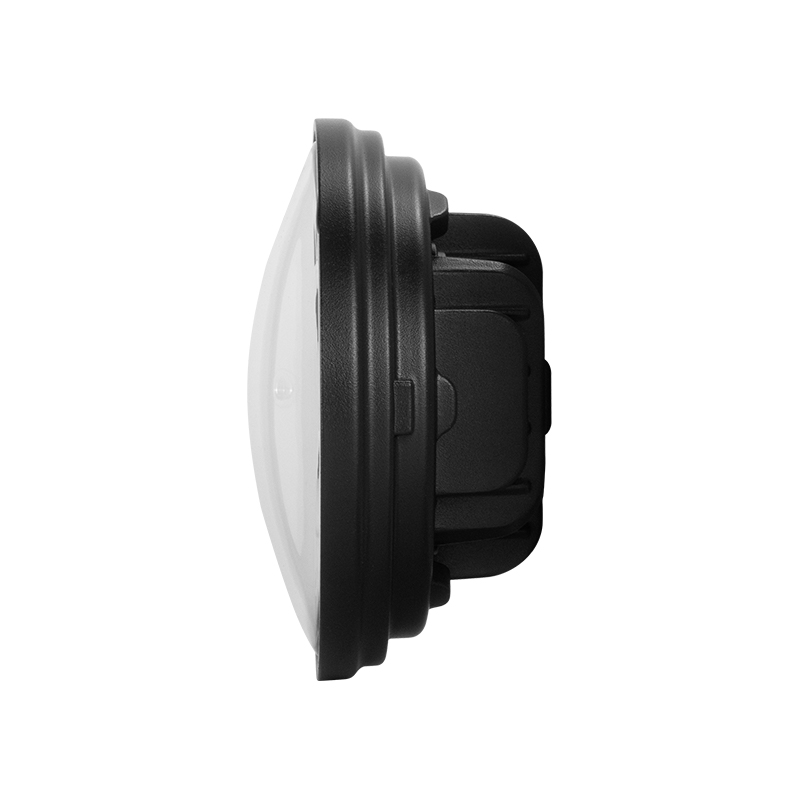

30 watt PAR-36 led bulb / light

Works as a replacement for the halogen sealed beam PAR-36 (4.5" OD bulb) used on many older tractors.

Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.

JD 30, 40 & 50 series IH and many others.

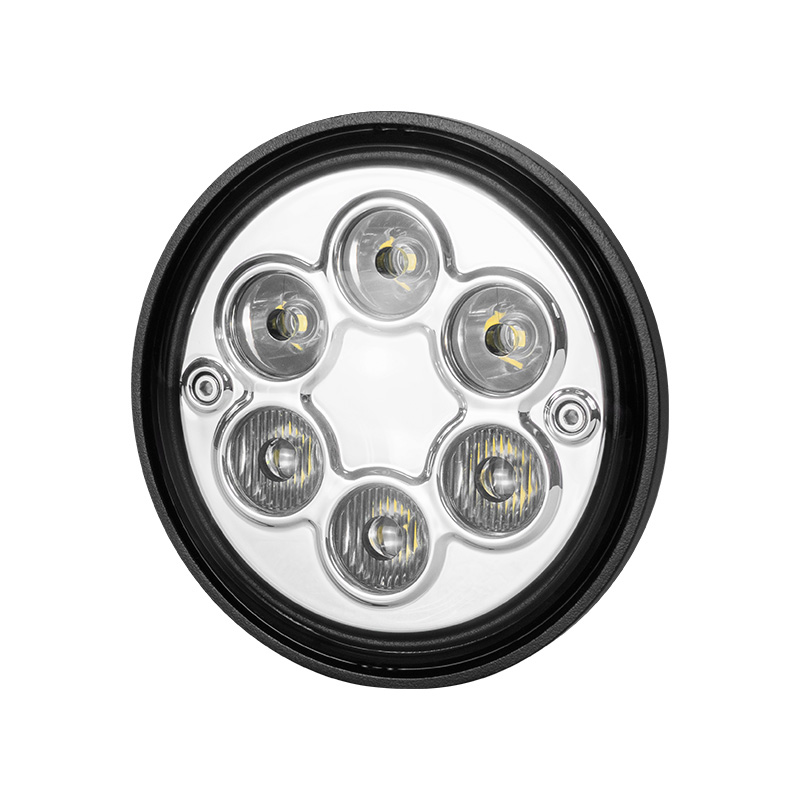

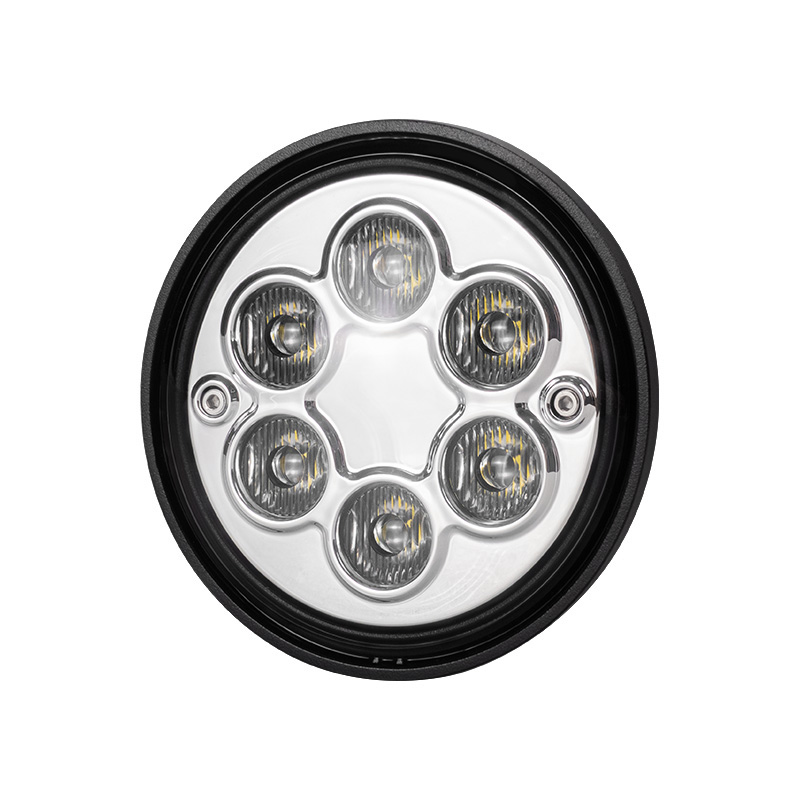

Bulb: 6 Pcs * 5W LED CREE XTE 5

Color Temperature: 5000k (White daylight)

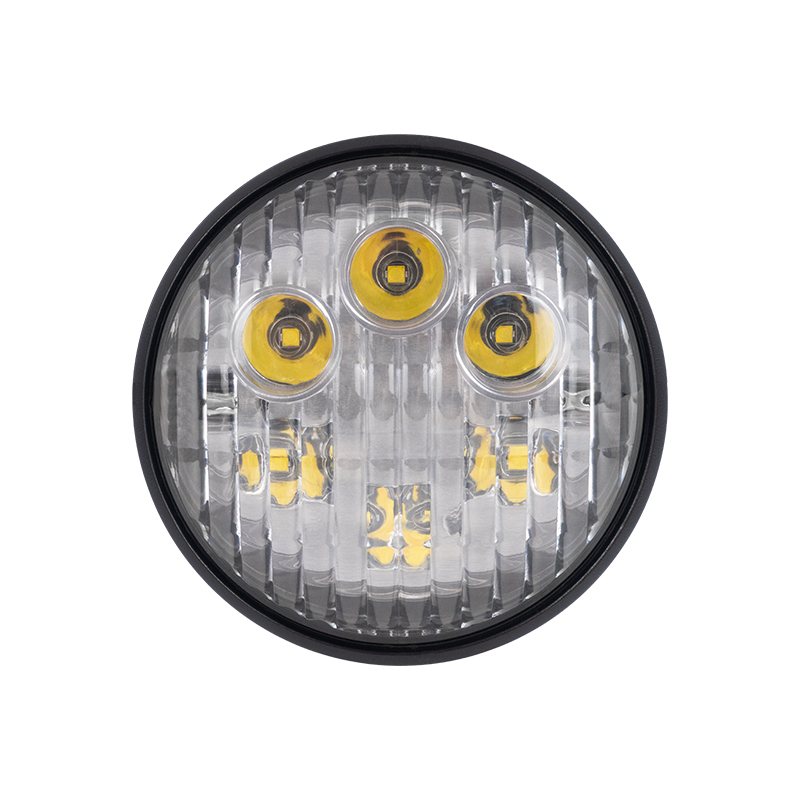

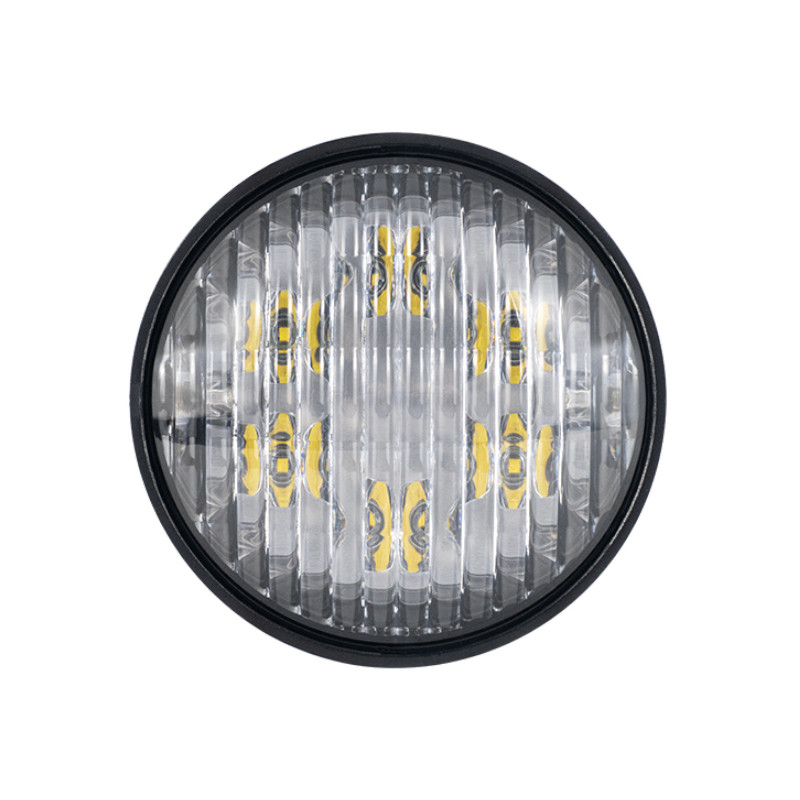

60° flood, 40° beam, Hi-Lo beam, Spot beam
UV resistant PC lens
Power: 30W rated, 19-20 watt used @ 12V
Operating Voltage:9-32V DC
Luminous:1700 effective measured by machine
Current: 1.8A @ 12V
Lifespan: 30,000Hours
Overvoltage protection

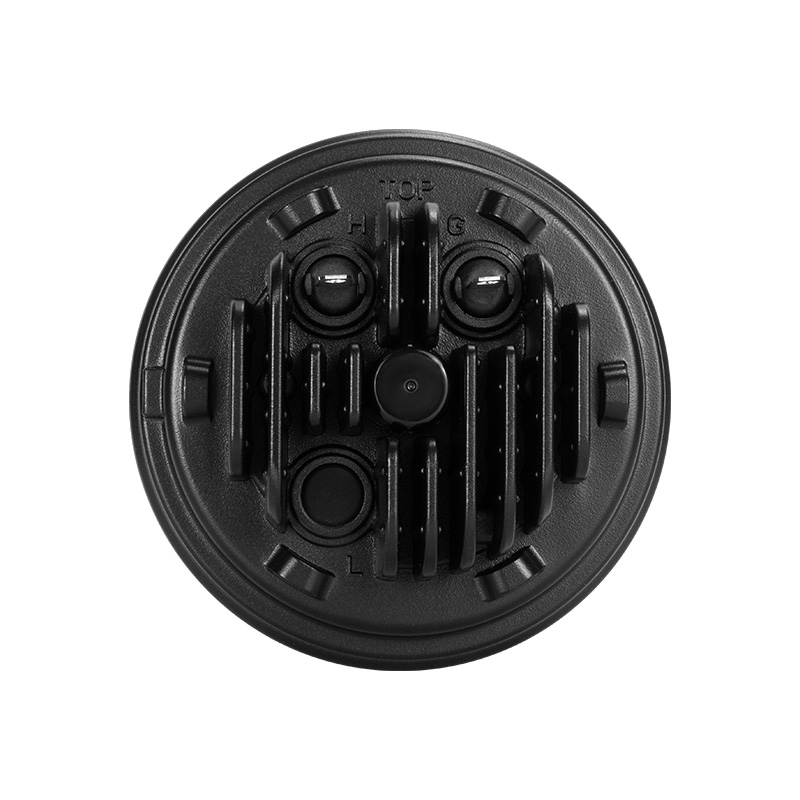

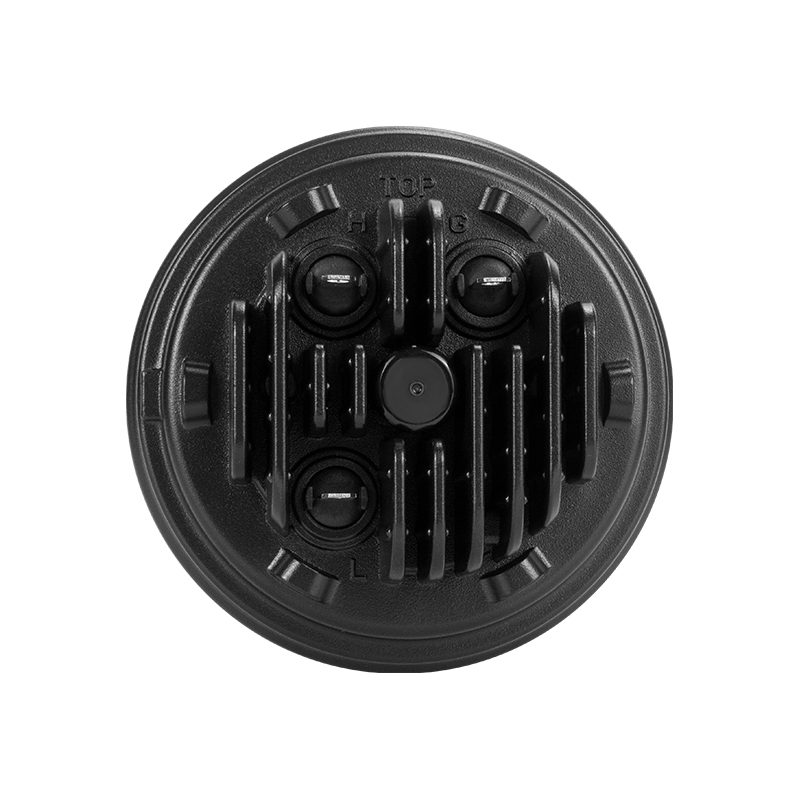

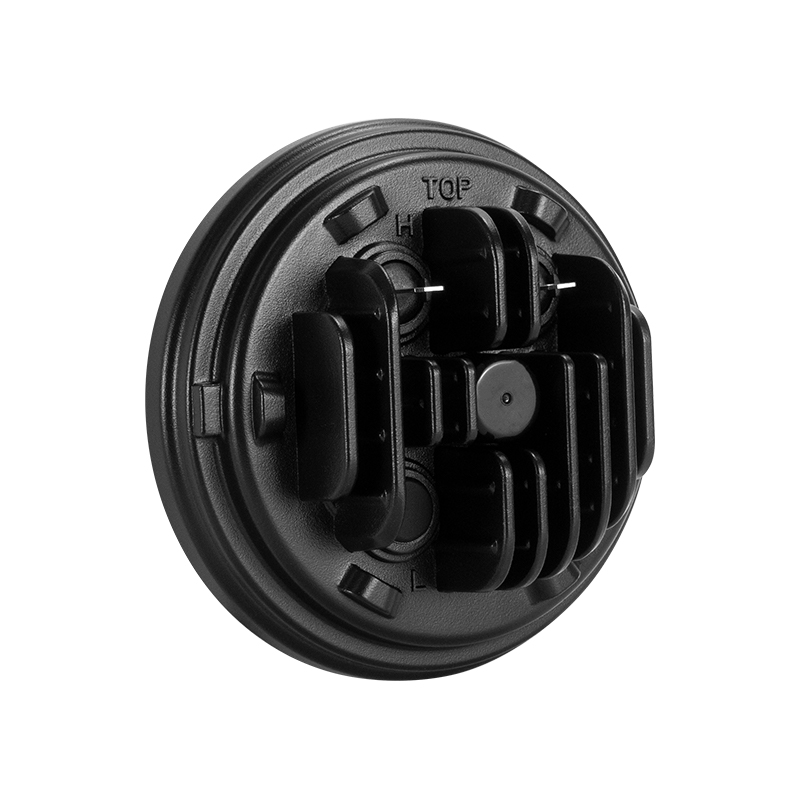

Back of housing has large cooling ribs for optimized heat dissipation
Size: 4.5" Dia. without housing.
IP67

HO Par36, HO Par-36, Par-36, Par36, High Output, High, Flood

30 watt PAR-36 led bulb / light

Works as a replacement for the halogen sealed beam PAR-36 (4.5" OD bulb) used on many older tractors.

Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.

JD 30, 40 & 50 series IH and many others.

Bulb: 6 Pcs * 5W LED CREE XTE 5

Color Temperature: 5000k (White daylight)
60° flood, 40° beam, Hi-Lo beam, Spot beam
UV resistant PC lens
Power: 30W rated, 19-20 watt used @ 12V
Operating Voltage:9-32V DC
Luminous:1700 effective measured by machine
Current: 1.8A @ 12V
Lifespan: 30,000Hours
Overvoltage protection
Back of housing has large cooling ribs for optimized heat dissipation
Size: 4.5" Dia. without housing.
IP67

HO Par36, HO Par-36, Par-36, Par36, High Output, High, Flood

Product tags

60° flood (23)
,
PAR-36 (16)
,
JD (102)
,
CaseIH (36)

Use On Below Models (Click to expand)

Case

Backhoe: 26 265 26B 33 34 480C 480D 480E 480ELL 480F 480LL 580C 580D 580SD 580SE 680E 680G 680H 780 780B 780C

Crawler Tractor: 1150B 1150C 1150D 1150E 1155D 1155E 1450 1450B 1455B 1550 310C 310D 420 420B 420C 450B 455B 850B 850C 850D 855C 855D

Forklift: 530 584C 584D 585C 585D 586C 586D

Tractor: 1190 1290 1390 1490 1690 2090 2290 2390 2590 320B 420B 420DB 4490 4690 480B 4890 W10E W8E W9 W9E

Caterpillar

Cold Planner: PR-1000

Compactor: 815B

Motor Grader: 120G 140G

Off Highway Truck: 776C 776D 777C 777D 784B 784C 785B 785C 785D 785DOEM 789B 789C 793B 793C 793D 797 797B MT4400DAC

Wheel Loader: 950H 966H 972G 972H 972K 972M 980F 980G 980GII 980H 980K IT12F

Ford New Holland

Tractor: 2000 2100 2110 2120 2150 2300 2310 233 2600 2600N 2600R 2600V 3000 3055 3100 3110 3120 3150 3300 3310 333 3330 3400 3500 3550 3600 3600N 3600NO 3600R 3600V 3900 4000 4100 4110 4140 4200 4330 4340 4400 4410 4500 4600 4600NO 4600O 4600SU 5000 5100 5200 5340 5600 5700 6600 6600C 6600O 6700 6710 7000 7100 7200 7600 7600C 7700 7710 7910 8000 8210 8600 8700 9000 9600 9700 TW10 TW15 TW20 TW25 TW30 TW35 TW5

International

Tractor: 1026 1066 1086 1206 1256 1456 1466 1468 1486 1566 1568 1586 3088 3288 3388 3488 3588 3688 3788 5088 5288 544 5488 656 666 686 706 756 766 786 806 826 856 886 966 986

John Deere

Backhoe: 300B 302A 310 310A 310B 401C 410 410B 415B 500A 500B 500C 510 510B 515B 610B 700A 710B 710C 760A

Combine: 3300 4400 4420 6600 6602 6620 6622 7700 7720 7721 8820

Crawler Dozer: 450D 550 550A

Crawler Dozer: 450E 550B

Crawler Loader: 455D 455E 555 555A 555B

Forklift: 380 480 480A 480B 480C

Log Skidder: 340D 440 440A 440B 440C 440D 448D 540 540A 540B 540D 548D 640 740A

Skid Steer: 125 14 170 24 24A 3375 375 570 575 675 675B 70

Skidder: 740

Tractor: 2010 2040 2240 2510 2520 2840 2940 3010 3020 4000 4010 4020 4030 4040 4050 4055 4230 4240 4250 4255 4320 4430 4440 4450 4455 4520 4555 4560 4620 4630 4640 4650 4755 4760 4840 4850 4955 4960 5010 5020 6030 7020 7520 8440 8450 8560 8570 8630 8640 8650 8760 8770 8850 8870 8960 8970 9100 9200 9300 9400

Wheel Loader: 301A 302 401B 444 444C 444CH 544 544A 544B 544C 644A 644B 644C

Massey Ferguson

Tractor: 10 1080 1085 1100 1105 1130 1135 1150 1155 135 150 1500 1505 165 175 180 1800 1805 20 230 240 245 250 255 2640 2675 270 2705 2745 275 2775 2805 285 290 298 30 31 3505 3525 3545 40 50 60 70 80
