PreviousLED-408U

Next30 watt PAR-36

40 watt PAR-36

1 review(s) | Add your review

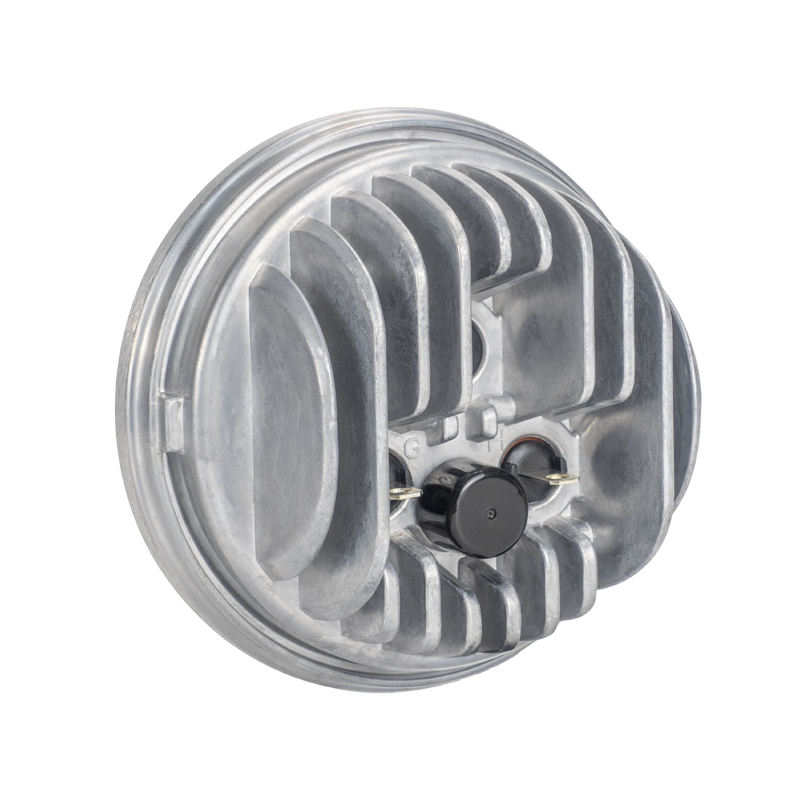

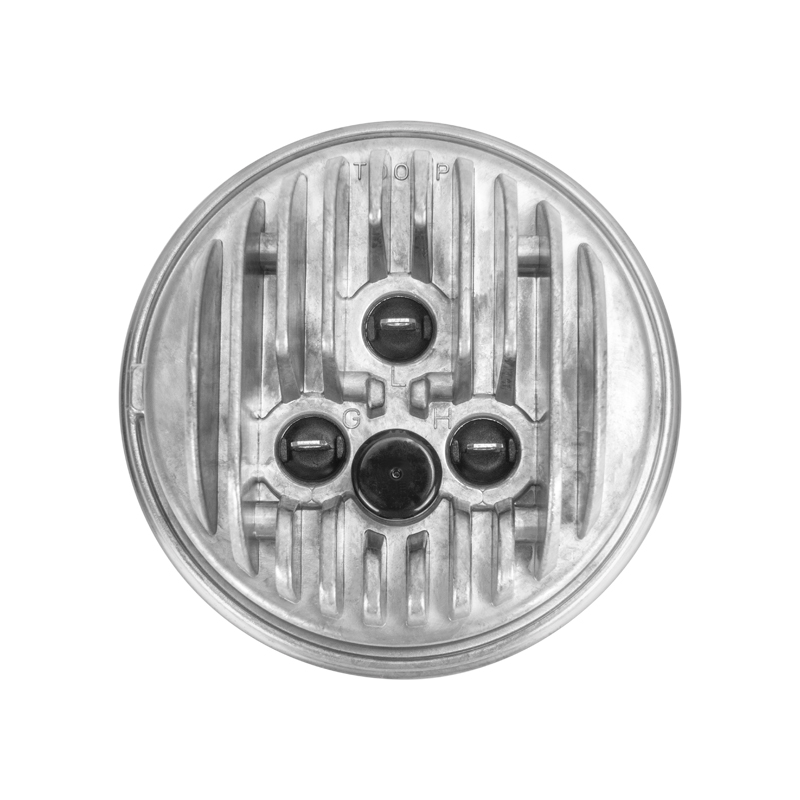

High power 40 watt PAR-36 size replacement LED light for the old style sealed beam halogen light. 4 x 10 watt LED chips. This light will only fit in normal full size "HOBBS" housings with rubber grommets due to large cooling fins. It will not fit the "GUIDE" brand housings with the "rolled lip". Also it will NOT fit in the new plastic housings used on some later model JD's. This light has a temperature sensor that will limit the power of the light if the temperature gets too high. Max effective lumen 2800 - minimum effective lumen 2200.

SKU: 40w Par-36

Select Beam Type: *

Hi-Lo beam
40° beam
80° Flood Beam

$39.00

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Overview

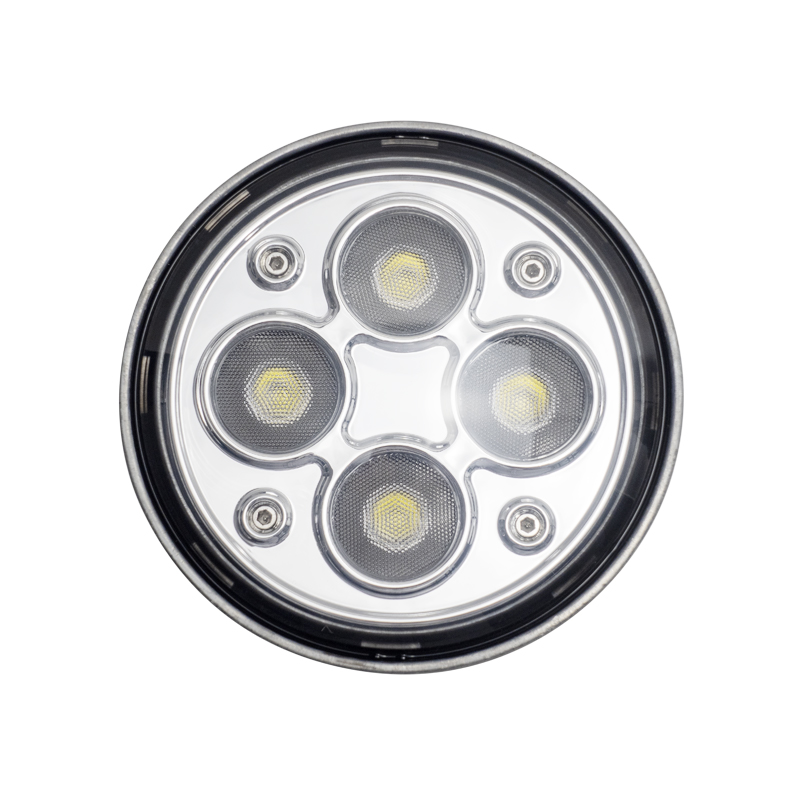

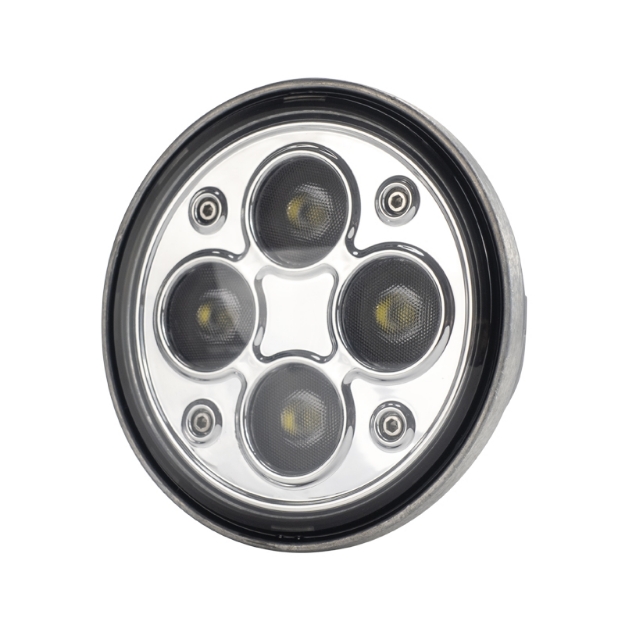

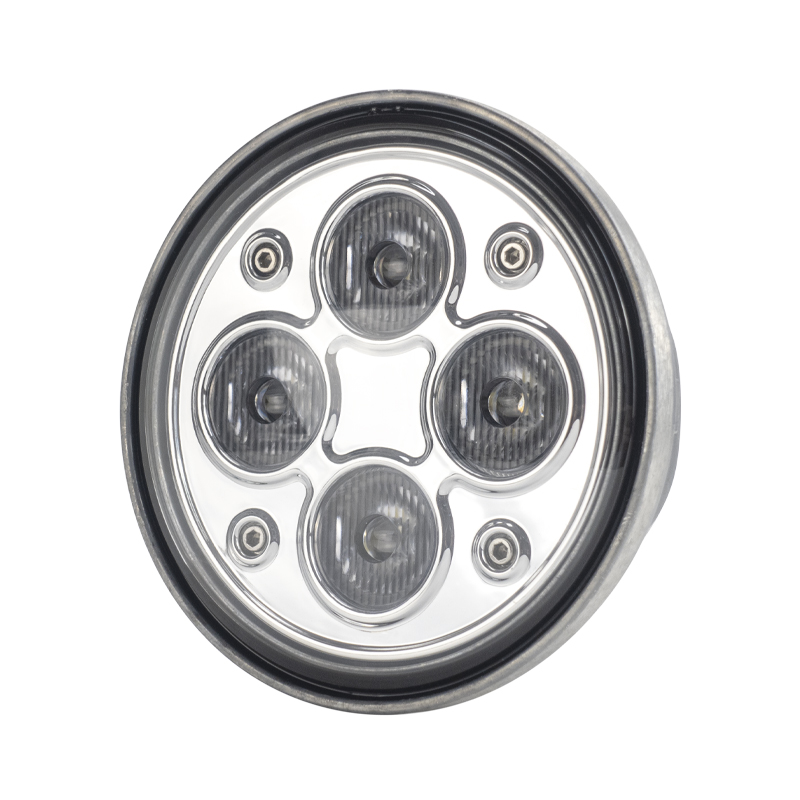

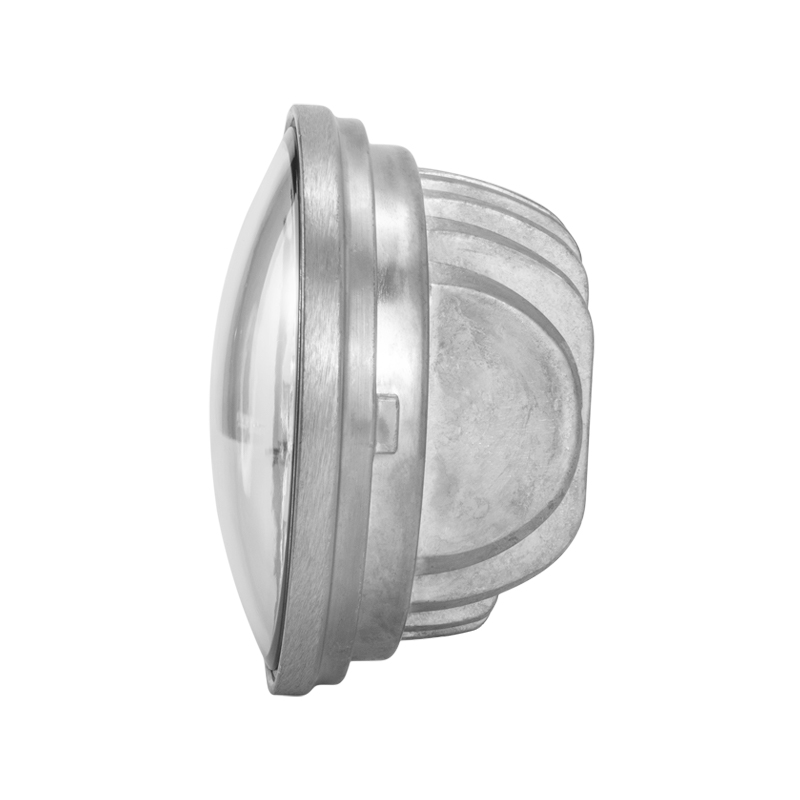

40 watt PAR-36

Works as a replacement for the halogen-sealed beam PAR-36 (4.5" bulb) used on many older tractors,

JD 30, 40 & 50 series IH and many others. This light will only fit in normal full size "HOBBS" housings with rubber grommets due to large cooling fins. It will not fit the "GUIDE" brand housings with the "rolled lip". Also it will NOT fit in the new plastic housings used on some later model JD's.

This light has a temperature sensor that will limit the power of the light if the temperature gets too high.

Max effective lumen 2800 - minimum effective lumen 2200

The advertised lumen is when the light is cool enough to operate at 100%

Note: It is a good practice to drill a few holes in the top and bottom of the housing the light is mounted in, this will help the lights cool.

. LED: 40 Watt OSRAM 10W/PC
. Voltage: 10-30 Volt DC
. Lumens: 4000lm Raw, 2800lm Effective
. Power used: 25W / 2A @ 12.5 Volt
. Kelvin: 5500K
. Temperature: -40°F to +140°F
. IP: Waterproof IP68
. Beam: Flood, 40°, or Hi-Lo
. Material: Diecast Aluminum Housing
. Lens: Scratch and UV Resistant Polycarbonate
. Life Time: 50,000 hours
. RFI and EMC filter

HO Par36, HO Par-36, Par-36, Par36, High Output, High, Flood

The 40 watt PAR-36 will not fit the GUIDE brand housings like below, or the new all in one plastic housings.

They will fit into the front fenders with a new "Glare Guard" rubber grommet, SKU LL0597

40 watt PAR-36

Works as a replacement for the halogen-sealed beam PAR-36 (4.5" bulb) used on many older tractors,

This light has a temperature sensor that will limit the power of the light if the temperature gets too high.

Max effective lumen 2800 - minimum effective lumen 2200

The advertised lumen is when the light is cool enough to operate at 100%

Note: It is a good practice to drill a few holes in the top and bottom of the housing the light is mounted in, this will help the lights cool.

HO Par36, HO Par-36, Par-36, Par36, High Output, High, Flood

The 40 watt PAR-36 will not fit the GUIDE brand housings like below, or the new all in one plastic housings.

They will fit into the front fenders with a new "Glare Guard" rubber grommet, SKU LL0597

Product tags

60° flood (23)
,
PAR-36 (16)
,
JD (106)
,
CaseIH (36)

Use On Below Models (Click to expand)

Case

Backhoe: 26 Only fit full size housings 265 Only fit full size housings 26B Only fit full size housings 33 Only fit full size housings 34 Only fit full size housings 480C Only fit full size housings 480D Only fit full size housings 480E Only fit full size housings 480ELL Only fit full size housings 480F Only fit full size housings 480LL Only fit full size housings 580C Only fit full size housings 580D Only fit full size housings 580SD Only fit full size housings 580SE Only fit full size housings 680E Only fit full size housings 680G Only fit full size housings 680H Only fit full size housings 780 Only fit full size housings 780B Only fit full size housings 780C Only fit full size housings

Crawler Tractor: 1150B Only fit full size housings 1150C Only fit full size housings 1150D Only fit full size housings 1150E Only fit full size housings 1155D Only fit full size housings 1155E Only fit full size housings 1450 Only fit full size housings 1450B Only fit full size housings 1455B Only fit full size housings 1550 Only fit full size housings 310C Only fit full size housings 310D Only fit full size housings 420 Only fit full size housings 420B Only fit full size housings 420C Only fit full size housings 450B Only fit full size housings 455B Only fit full size housings 850B Only fit full size housings 850C Only fit full size housings 850D Only fit full size housings 855C Only fit full size housings 855D Only fit full size housings

Forklift: 530 Only fit full size housings 584C Only fit full size housings 584D Only fit full size housings 585C Only fit full size housings 585D Only fit full size housings 586C Only fit full size housings 586D Only fit full size housings

Tractor: 1190 Only fit full size housings 1290 Only fit full size housings 1390 Only fit full size housings 1490 Only fit full size housings 1690 Only fit full size housings 2090 Only fit full size housings 2290 Only fit full size housings 2390 Only fit full size housings 2590 Only fit full size housings 320B Only fit full size housings 420B Only fit full size housings 420DB Only fit full size housings 4490 Only fit full size housings 4690 Only fit full size housings 480B Only fit full size housings 4890 Only fit full size housings W10E Only fit full size housings W8E Only fit full size housings W9 Only fit full size housings W9E Only fit full size housings

Caterpillar

Cold Planner: PR-1000 Only fit full size housings

Compactor: 815B Only fit full size housings

Motor Grader: 120G Only fit full size housings 140G Only fit full size housings

Off Highway Truck: 776C Only fit full size housings 776D Only fit full size housings 777C Only fit full size housings 777D Only fit full size housings 784B Only fit full size housings 784C Only fit full size housings 785B Only fit full size housings 785C Only fit full size housings 785D Only fit full size housings 785DOEM Only fit full size housings 789B Only fit full size housings 789C Only fit full size housings 793B Only fit full size housings 793C Only fit full size housings 793D Only fit full size housings 797 Only fit full size housings 797B Only fit full size housings MT4400DAC Only fit full size housings

Wheel Loader: 950H Only fit full size housings 966H Only fit full size housings 972G Only fit full size housings 972H Only fit full size housings 972K Only fit full size housings 972M Only fit full size housings 980F Only fit full size housings 980G Only fit full size housings 980GII Only fit full size housings 980H Only fit full size housings 980K Only fit full size housings IT12F Only fit full size housings

Ford New Holland

Tractor: 2000 Only fit full size housings 2100 Only fit full size housings 2110 Only fit full size housings 2120 Only fit full size housings 2150 Only fit full size housings 2300 Only fit full size housings 2310 Only fit full size housings 233 Only fit full size housings 2600 Only fit full size housings 2600N Only fit full size housings 2600R Only fit full size housings 2600V Only fit full size housings 3000 Only fit full size housings 3055 Only fit full size housings 3100 Only fit full size housings 3110 Only fit full size housings 3120 Only fit full size housings 3150 Only fit full size housings 3300 Only fit full size housings 3310 Only fit full size housings 333 Only fit full size housings 3330 Only fit full size housings 3400 Only fit full size housings 3500 Only fit full size housings 3550 Only fit full size housings 3600 Only fit full size housings 3600N Only fit full size housings 3600NO Only fit full size housings 3600R Only fit full size housings 3600V Only fit full size housings 3900 Only fit full size housings 4000 Only fit full size housings 4100 Only fit full size housings 4110 Only fit full size housings 4140 Only fit full size housings 4200 Only fit full size housings 4330 Only fit full size housings 4340 Only fit full size housings 4400 Only fit full size housings 4410 Only fit full size housings 4500 Only fit full size housings 4600 Only fit full size housings 4600NO Only fit full size housings 4600O Only fit full size housings 4600SU Only fit full size housings 5000 Only fit full size housings 5100 Only fit full size housings 5200 Only fit full size housings 5340 Only fit full size housings 5600 Only fit full size housings 5700 Only fit full size housings 6600 Only fit full size housings 6600C Only fit full size housings 6600O Only fit full size housings 6700 Only fit full size housings 6710 Only fit full size housings 7000 Only fit full size housings 7100 Only fit full size housings 7200 Only fit full size housings 7600 Only fit full size housings 7600C Only fit full size housings 7700 Only fit full size housings 7710 Only fit full size housings 7910 Only fit full size housings 8000 Only fit full size housings 8210 Only fit full size housings 8600 Only fit full size housings 8700 Only fit full size housings 9000 Only fit full size housings 9600 Only fit full size housings 9700 Only fit full size housings TW10 Only fit full size housings TW15 Only fit full size housings TW20 Only fit full size housings TW25 Only fit full size housings TW30 Only fit full size housings TW35 Only fit full size housings TW5 Only fit full size housings

International

Tractor: 1026 Only fit full size housings 1066 Only fit full size housings 1086 Only fit full size housings 1206 Only fit full size housings 1256 Only fit full size housings 1456 Only fit full size housings 1466 Only fit full size housings 1468 Only fit full size housings 1486 Only fit full size housings 1566 Only fit full size housings 1568 Only fit full size housings 1586 Only fit full size housings 3088 Only fit full size housings 3288 Only fit full size housings 3388 Only fit full size housings 3488 Only fit full size housings 3588 Only fit full size housings 3688 Only fit full size housings 3788 Only fit full size housings 5088 Only fit full size housings 5288 Only fit full size housings 544 Only fit full size housings 5488 Only fit full size housings 656 Only fit full size housings 666 Only fit full size housings 686 Only fit full size housings 706 Only fit full size housings 756 Only fit full size housings 766 Only fit full size housings 786 Only fit full size housings 806 Only fit full size housings 826 Only fit full size housings 856 Only fit full size housings 886 Only fit full size housings 966 Only fit full size housings 986 Only fit full size housings

John Deere

Backhoe: 300B Only fit full size housings 302A Only fit full size housings 310 Only fit full size housings 310A Only fit full size housings 310B Only fit full size housings 401C Only fit full size housings 410 Only fit full size housings 410B Only fit full size housings 415B Only fit full size housings 500A Only fit full size housings 500B Only fit full size housings 500C Only fit full size housings 510 Only fit full size housings 510B Only fit full size housings 515B Only fit full size housings 610B Only fit full size housings 700A Only fit full size housings 710B Only fit full size housings 710C Only fit full size housings 760A Only fit full size housings

Combine: 3300 Only fit full size housings 4400 Only fit full size housings 4420 Only fit full size housings 6600 Only fit full size housings 6602 Only fit full size housings 6620 Only fit full size housings 6622 Only fit full size housings 7700 Only fit full size housings 7720 Only fit full size housings 7721 Only fit full size housings 8820 Only fit full size housings

Crawler Dozer: 450D Only fit full size housings 450E Only fit full size housings 550 Only fit full size housings 550A Only fit full size housings 550B Only fit full size housings

Crawler Loader: 455D Only fit full size housings 455E Only fit full size housings 555 Only fit full size housings 555A Only fit full size housings 555B Only fit full size housings

Forklift: 380 Only fit full size housings 480 Only fit full size housings 480A Only fit full size housings 480B Only fit full size housings 480C Only fit full size housings

Log Skidder: 340D Only fit full size housings 440 Only fit full size housings 440A Only fit full size housings 440B Only fit full size housings 440C Only fit full size housings 440D Only fit full size housings 448D Only fit full size housings 540 Only fit full size housings 540A Only fit full size housings 540B Only fit full size housings 540D Only fit full size housings 548D Only fit full size housings 640 Only fit full size housings 740A Only fit full size housings

Skid Steer: 125 Only fit full size housings 14 Only fit full size housings 170 Only fit full size housings 24 Only fit full size housings 24A Only fit full size housings 3375 Only fit full size housings 375 Only fit full size housings 570 Only fit full size housings 575 Only fit full size housings 675 Only fit full size housings 675B Only fit full size housings 70 Only fit full size housings

Skidder: 740 Only fit full size housings

Tractor: 2010 Only fit full size housings 2040 Only fit full size housings 2240 Only fit full size housings 2510 Only fit full size housings 2520 Only fit full size housings 2840 Only fit full size housings 2940 Only fit full size housings 3010 Only fit full size housings 3020 Only fit full size housings 4000 Only fit full size housings 4010 Only fit full size housings 4020 Only fit full size housings 4030 Only fit full size housings 4040 Only fit full size housings 4050 Only fit full size housings 4055 Only fit full size housings 4230 Only fit full size housings 4240 Only fit full size housings 4250 Only fit full size housings 4255 Only fit full size housings 4320 Only fit full size housings 4430 Only fit full size housings 4440 Only fit full size housings 4450 Only fit full size housings 4455 Only fit full size housings 4520 Only fit full size housings 4555 Only fit full size housings 4560 Only fit full size housings 4620 Only fit full size housings 4630 Only fit full size housings 4640 Only fit full size housings 4650 Only fit full size housings 4755 Only fit full size housings 4760 Only fit full size housings 4840 Only fit full size housings 4850 Only fit full size housings 4955 Only fit full size housings 4960 Only fit full size housings 5010 Only fit full size housings 5020 Only fit full size housings 6030 Only fit full size housings 7020 Only fit full size housings 7520 Only fit full size housings 8440 Only fit full size housings 8450 Only fit full size housings 8560 Only fit full size housings 8570 Only fit full size housings 8630 Only fit full size housings 8640 Only fit full size housings 8650 Only fit full size housings 8760 Only fit full size housings 8770 Only fit full size housings 8850 Only fit full size housings 8870 Only fit full size housings 8960 Only fit full size housings 8970 Only fit full size housings 9100 Only fit full size housings 9200 Only fit full size housings 9300 Only fit full size housings 9400 Only fit full size housings

Wheel Loader: 301A Only fit full size housings 302 Only fit full size housings 401B Only fit full size housings 444 Only fit full size housings 444C Only fit full size housings 444CH Only fit full size housings 544 Only fit full size housings 544A Only fit full size housings 544B Only fit full size housings 544C Only fit full size housings 644A Only fit full size housings 644B Only fit full size housings 644C Only fit full size housings

Massey Ferguson

Tractor: 10 Only fit full size housings 1080 Only fit full size housings 1085 Only fit full size housings 1100 Only fit full size housings 1105 Only fit full size housings 1130 Only fit full size housings 1135 Only fit full size housings 1150 Only fit full size housings 1155 Only fit full size housings 135 Only fit full size housings 150 Only fit full size housings 1500 Only fit full size housings 1505 Only fit full size housings 165 Only fit full size housings 175 Only fit full size housings 180 Only fit full size housings 1800 Only fit full size housings 1805 Only fit full size housings 20 Only fit full size housings 230 Only fit full size housings 240 Only fit full size housings 245 Only fit full size housings 250 Only fit full size housings 255 Only fit full size housings 2640 Only fit full size housings 2675 Only fit full size housings 270 Only fit full size housings 2705 Only fit full size housings 2745 Only fit full size housings 275 Only fit full size housings 2775 Only fit full size housings 2805 Only fit full size housings 285 Only fit full size housings 290 Only fit full size housings 298 Only fit full size housings 30 Only fit full size housings 31 Only fit full size housings 3505 Only fit full size housings 3525 Only fit full size housings 3545 Only fit full size housings 40 Only fit full size housings 50 Only fit full size housings 60 Only fit full size housings 70 Only fit full size housings 80 Only fit full size housings
