40W PAR36
40W PAR36 40W PAR36 40W PAR36 40W PAR36

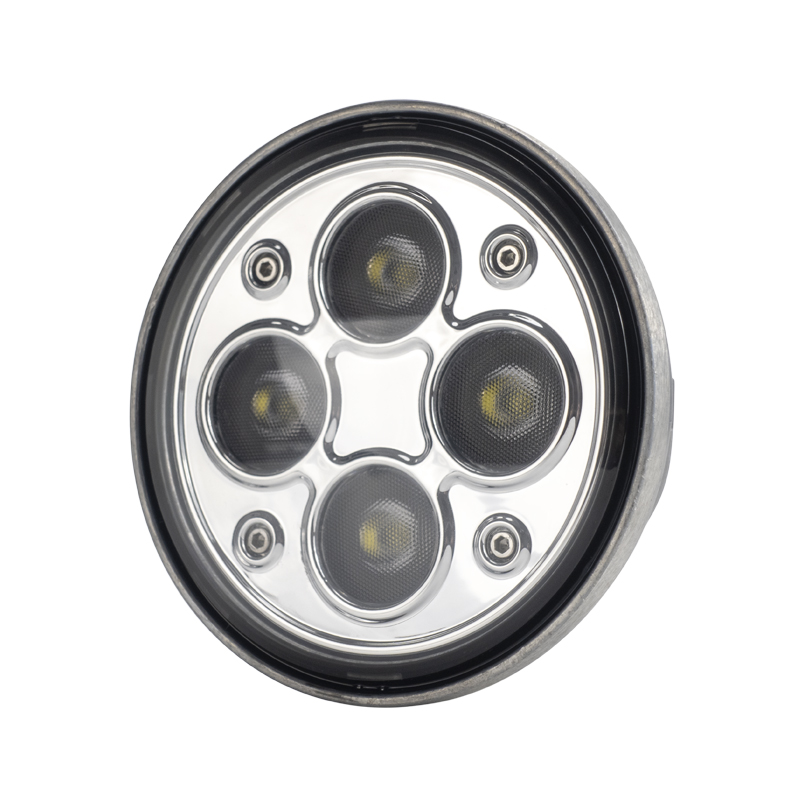

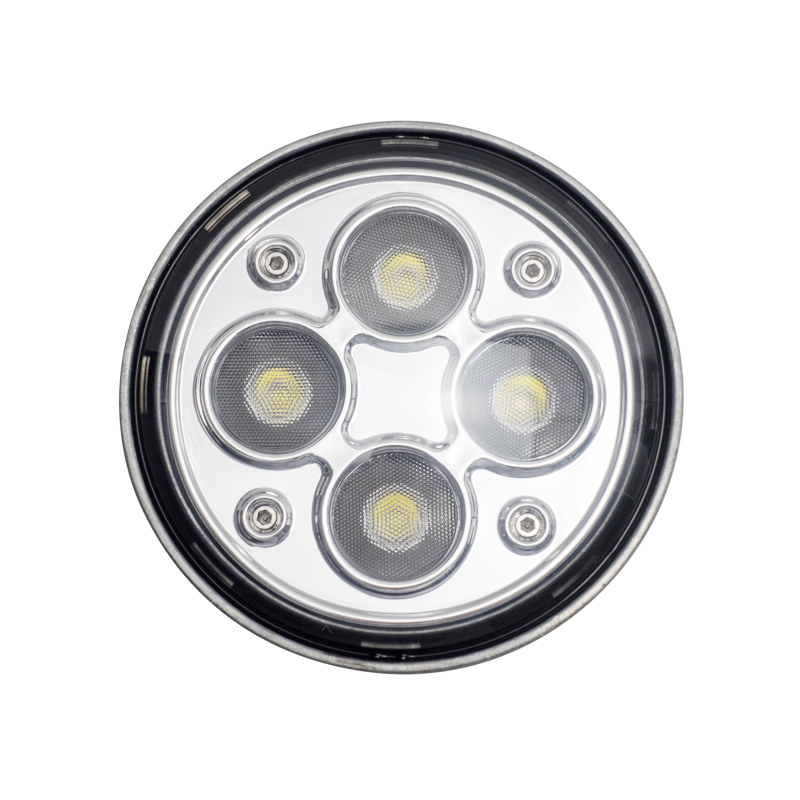

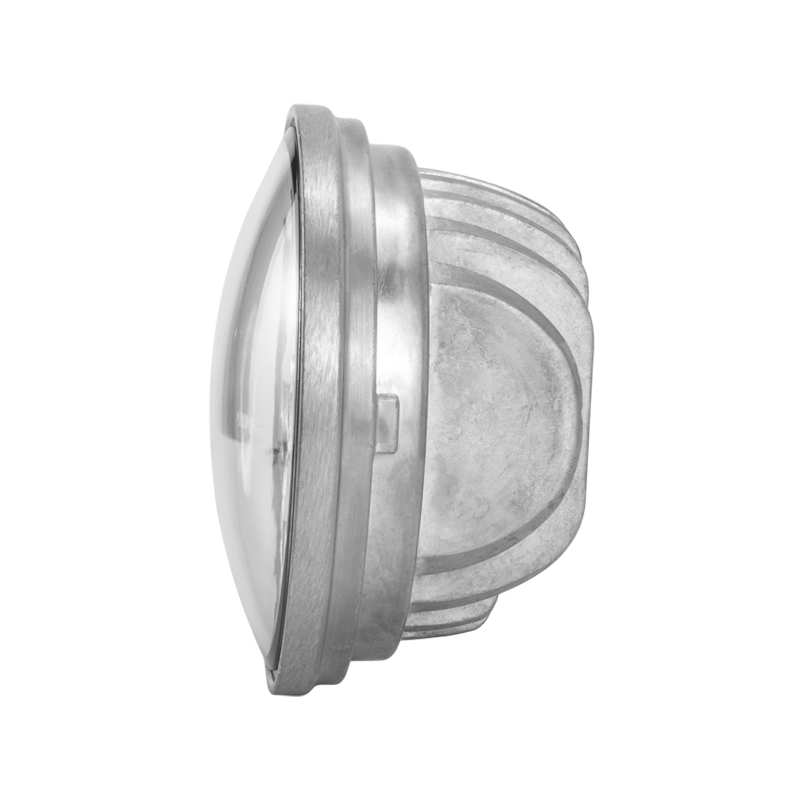

40 watt PAR-36 Flood ver.2

Be the first to review this product

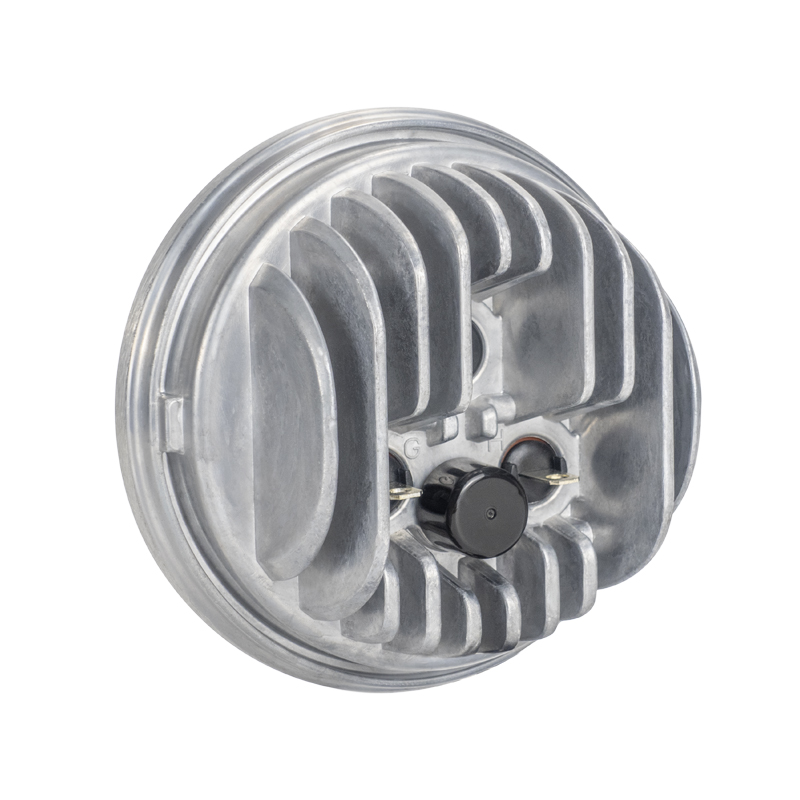

High power 40 watt PAR-36 size replacement LED light for the old style sealed beam halogen light. 4 x 10 watt LED chips. 80° Flood Beam. Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool. Note 2: This light has large cooling fins, it only fit in the normal size steel housings where the light is mounted in a rubber grommet.
Manufacturer: Larsen Lights
SKU: LL0752
208 in stock
$36.00
+ -
Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info.  Please note that Hy-Capacity items can not be shipped to Canada / International.

40 watt PAR-36, 80° flood beam,  ver.2.



Works as a replacement for the halogen sealed beam PAR-36 (4 3/8" bulb) used on many older tractors,JD 30, 40, 50, 55, & 60 series IH and many others. Note: This light has large cooling fins, it only fit in the normal size steel housings where the light is mounted in a rubber grommet, or in the plastic housings found on the 55 & 60 series tractors.

This light has a temperature sensor that will limit the power to the light if the temperature gets too high.

The advertised lumen is when the light is cool enough to operate at 100%



. LED: 40 Watt OSRAM 10W/PC
. Voltage: 10-30 Volt DC
. Lumens: 4000lm Raw, 2800lm Effective
. Power used: 25W / 2A @ 12.5 Volt
. Kelvin: 5500K
. Temperature: -40°F to +140°F
. IP: Waterproof IP68
. Beam: 80° Flood Beam
. Material: Diecast Aluminum Housing
. Lens: Scratch and UV Resistant Polycarbonate
. Life Time: 50,000 hours
. RFI and EMC filter

 HO Par36, HO Par-36, Par-36, Par36, High Output, High, Flood

40 watt PAR-36, 80° flood beam,  ver.2.



Works as a replacement for the halogen sealed beam PAR-36 (4 3/8" bulb) used on many older tractors,JD 30, 40, 50, 55, & 60 series IH and many others. Note: This light has large cooling fins, it only fit in the normal size steel housings where the light is mounted in a rubber grommet, or in the plastic housings found on the 55 & 60 series tractors.

This light has a temperature sensor that will limit the power to the light if the temperature gets too high.

The advertised lumen is when the light is cool enough to operate at 100%



. LED: 40 Watt OSRAM 10W/PC
. Voltage: 10-30 Volt DC
. Lumens: 4000lm Raw, 2800lm Effective
. Power used: 25W / 2A @ 12.5 Volt
. Kelvin: 5500K
. Temperature: -40°F to +140°F
. IP: Waterproof IP68
. Beam: 80° Flood Beam
. Material: Diecast Aluminum Housing
. Lens: Scratch and UV Resistant Polycarbonate
. Life Time: 50,000 hours
. RFI and EMC filter

 HO Par36, HO Par-36, Par-36, Par36, High Output, High, Flood
