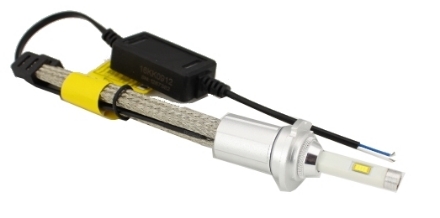

The "Red Tail" series of LED bulbs utilize a braided cobber cable for heat dissipation, there is no fan that can fail, and no radio interference.
We just now had a customer that got 9 bulbs replaced and have radio interference - but when tested here (1 bulb) we did not have any interference. So we now only recommend using 2 kits (4 bulbs) on a vehicle.
We recommend using this bulb type in areas with no airflow, example - lights that are built into a combine cab.
Replace your halogen or HID bulb with LED High power bulbs. Enjoy low power draw, great white light with less blue rays than HID, cuts thru dust better than HID and Halogen.
There are 2 bulbs in a kit. This bulb type requires 3-4" of space behind the light for the cooling system to fit.
Spec's
Power: 40W x 2 bulbs Light Source: Customized LED Chips Voltage: Wide Voltage 12V 24V DC IP Grade: IP 68 Color Temp.: 5600-6000k Material: Aluminum+Red Copper Dissipation: Combination of conduction & zero thermal resistance Lumen: 4800LMx2 Working Life: ≥30000Hours Working Temp.: -40℃～+80℃ Weight: 0.70kg/Set Fanless
D1 & D2 are the same bulbs, the base looks different and the connector is different, comes without a connector, call or email if you need a connector installed.
LED-760 is a 4x6 style LED work light. 6 x Osram P9 LED's at 10 watt each, 4800 effective lumens, 5200-5500k, and only 3.8 amp/46 watt use. Select the light beam type, then select the bracket you need for your application. Includes a 5" adapter cable that fits 9005 or H11 connectors. You can find more adapter cables at the bottom or right side of this page. This is an updated model of our LED-660.
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 40° beam. Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700. 60° Flood Beam. Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.
High power PAR-36 size replacement LED light for the old style sealed beam halogen light. 6 x 5 watt CREE LED chips. Actual power use is around 22 watt, effective lumen around 1700 Hi-Lo Beam, 800 low beam. Note: It is a good practice to drill a few holes on top and bottom of the housing the light is mounted in, this will help the lights cool.
LED 2x5 LED light for the top front cab on the 7000-8000 series tractor, and front hood light on older JD’s, 55 and 60 series. 50° beam pattern. 1700 effective lumen.
Cab lights for the 9000 series JD combine using a rectangular light on the cab - fits any vehicle using the JD9000 series cab. Use the combo beam for most distance, we suggest 2 combo beam and 4 flood beam for the combines.
